Forward Clutch: Components

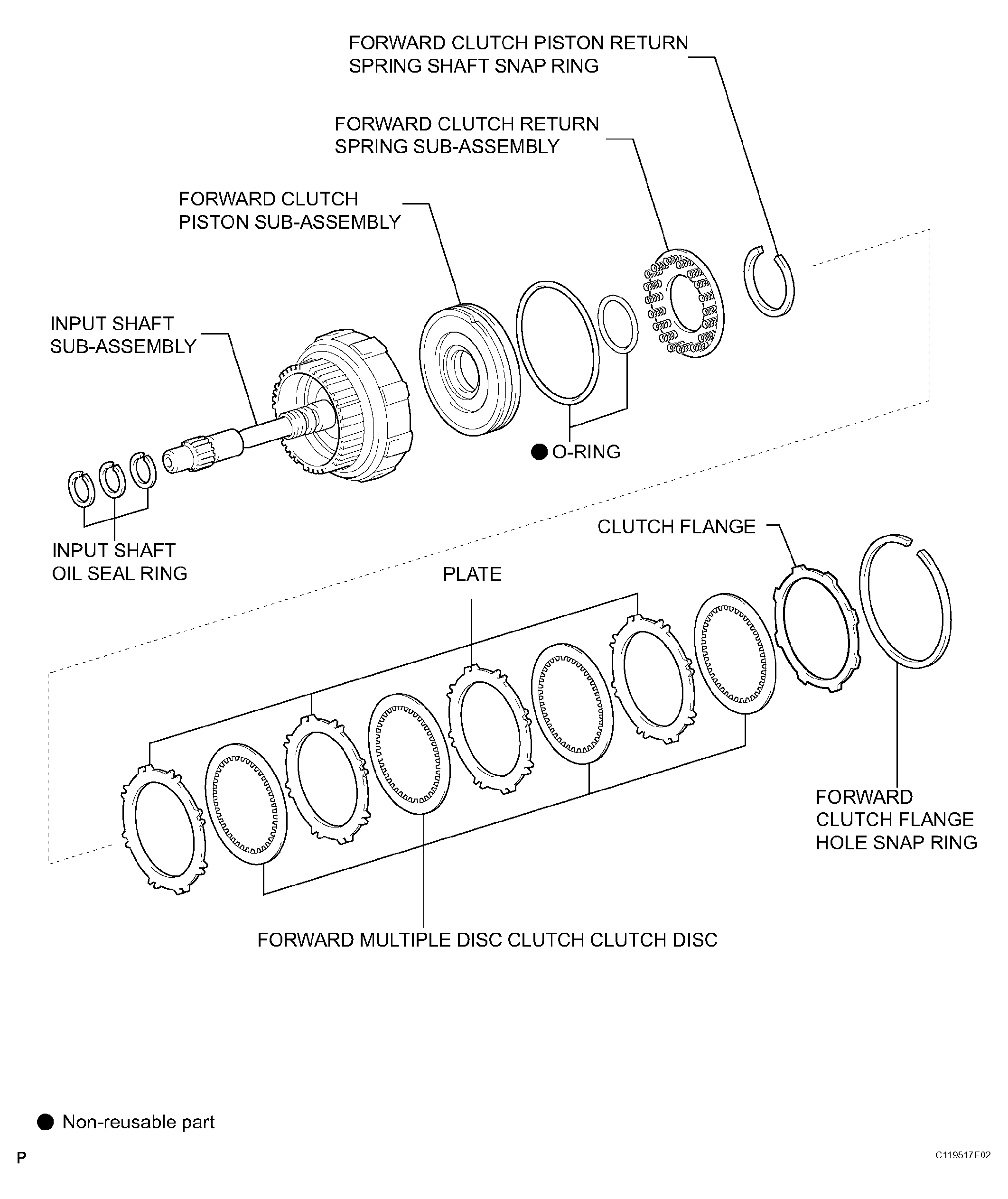

Fig 1: Exploded View Of Forward Clutch Components
G04463114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
