Floor Shift Lever Assembly: Components

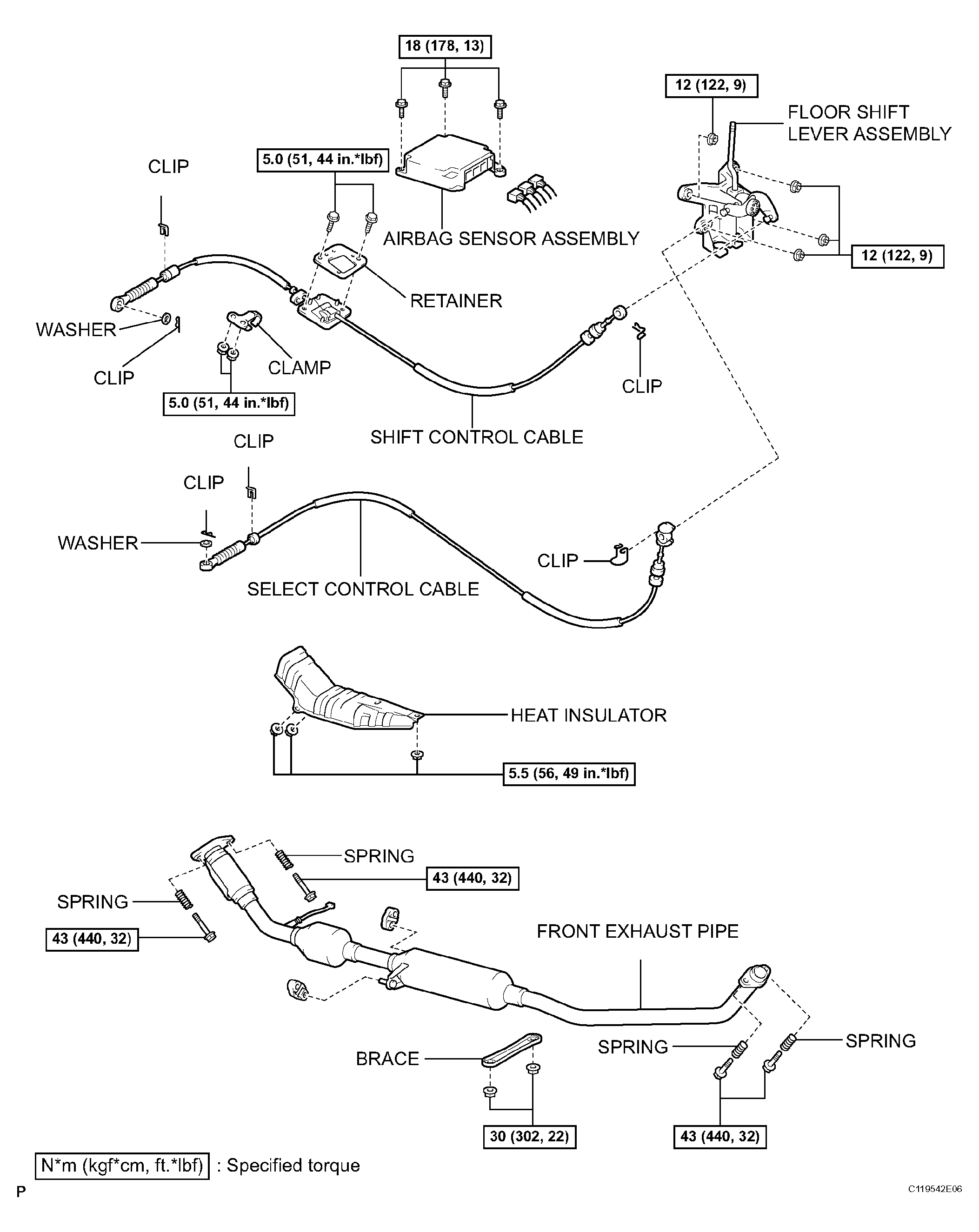

Fig 1: Floor Shift Lever Assembly Replacement Components With Torque Specifications
G04463881Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Floor Shift Lever Assembly Components
G04463882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
