Transmission Control Cable: Installation

1. Install the retainer to the grommet.
   NOTE: Fit 4 projections of the grommet into 4 holes of the retainer.
   Fig 1: Installing Retainer To Grommet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the control cable assembly with the 2 bolts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Fig 2: Installing Control Cable Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the shift cable with the 2 nuts.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Fig 3: Connecting Shift Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the shift cable with the 2 clip from the bracket.

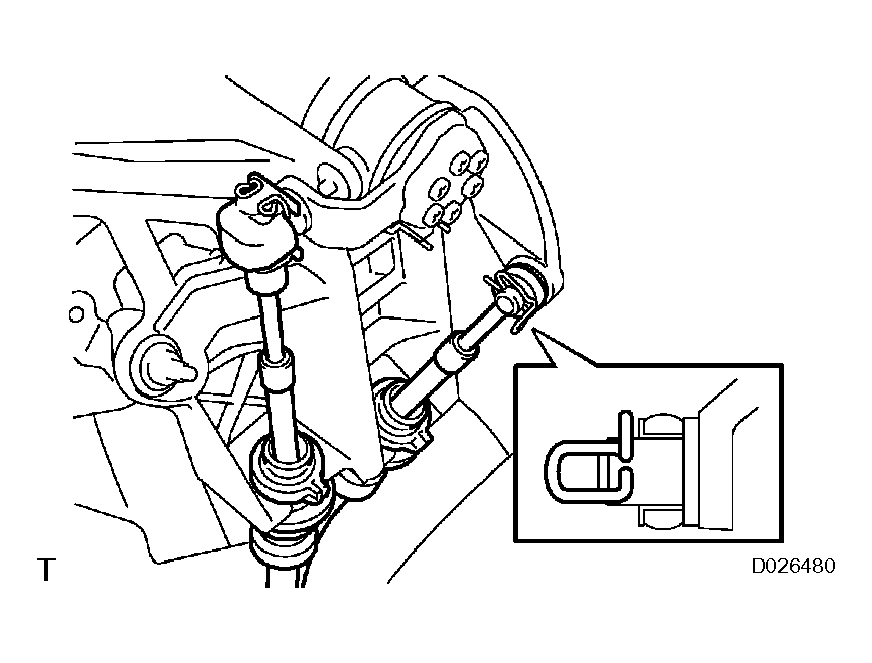

5. Connect the shift cable end of the shift cable with the 2 washer and 2 clip to the transaxle.
   Fig 4: Connecting Shift Cable End Of Shift Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

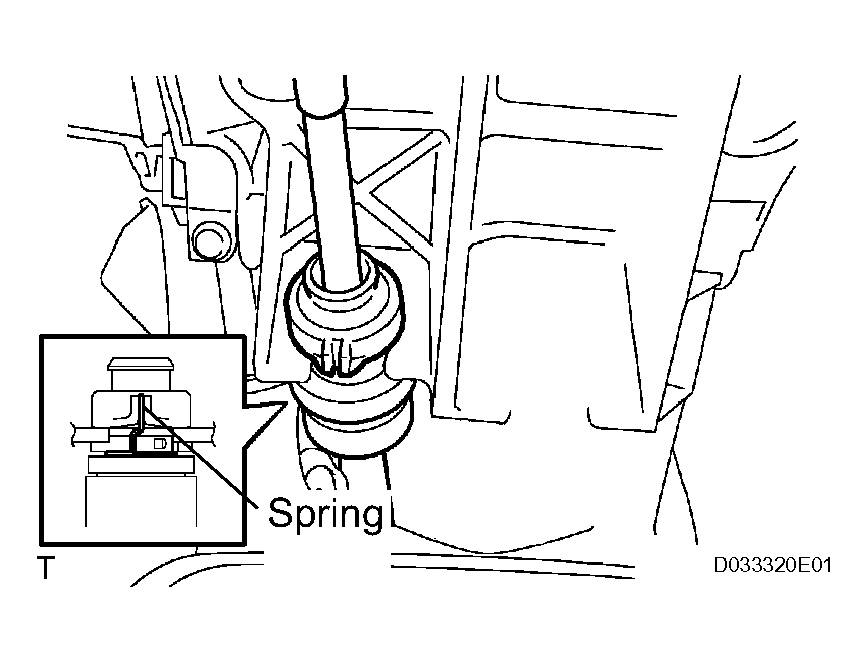

1. Connect the select cable to the shift lever assembly.
   NOTE:

   • The projecting part of the cable outer should face upward when the shift cable is installed.
   • Make sure that after installation the cable outer spring is moved to the place shown in the illustration.
     Fig 5: Connecting Select Cable To Shift Lever Assembly

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the select cable end with the clip to the shift lever assembly.
3. Connect the select cable to the clamp.
   Fig 6: Connecting Select Cable End With Clip To Shift Lever Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

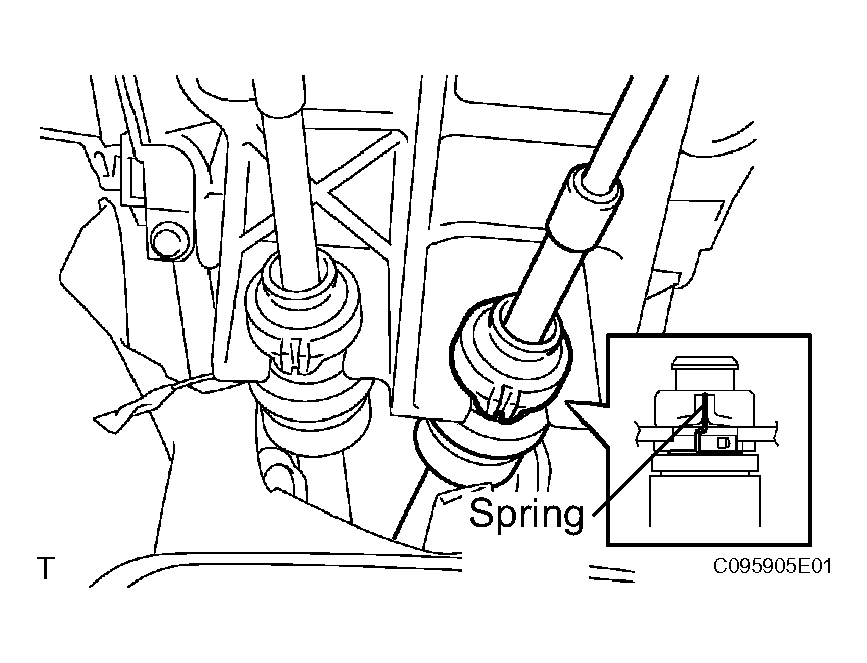

1. Connect the shift cable to the shift lever assembly.
   NOTE:

   • The projecting part of the cable outer should face upward when the shift cable is installed.
   • Make sure that after installation the cable outer spring is moved to the place shown in the illustration.
     Fig 7: Connecting Shift Cable To Shift Lever Assembly

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the shift cable end as shown in the illustration.
3. Install the washer and clip.
4. Connect the shift cable to the clamp.

1. Install the heat insulator No. 1 with the 3 nuts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

Fig 8: Connecting Shift Cable End

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

(See INSTALLATION )
