Engine Ignition System (1ZZ-FE)
>>
Ignition System
>>
Parts Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Parts Location

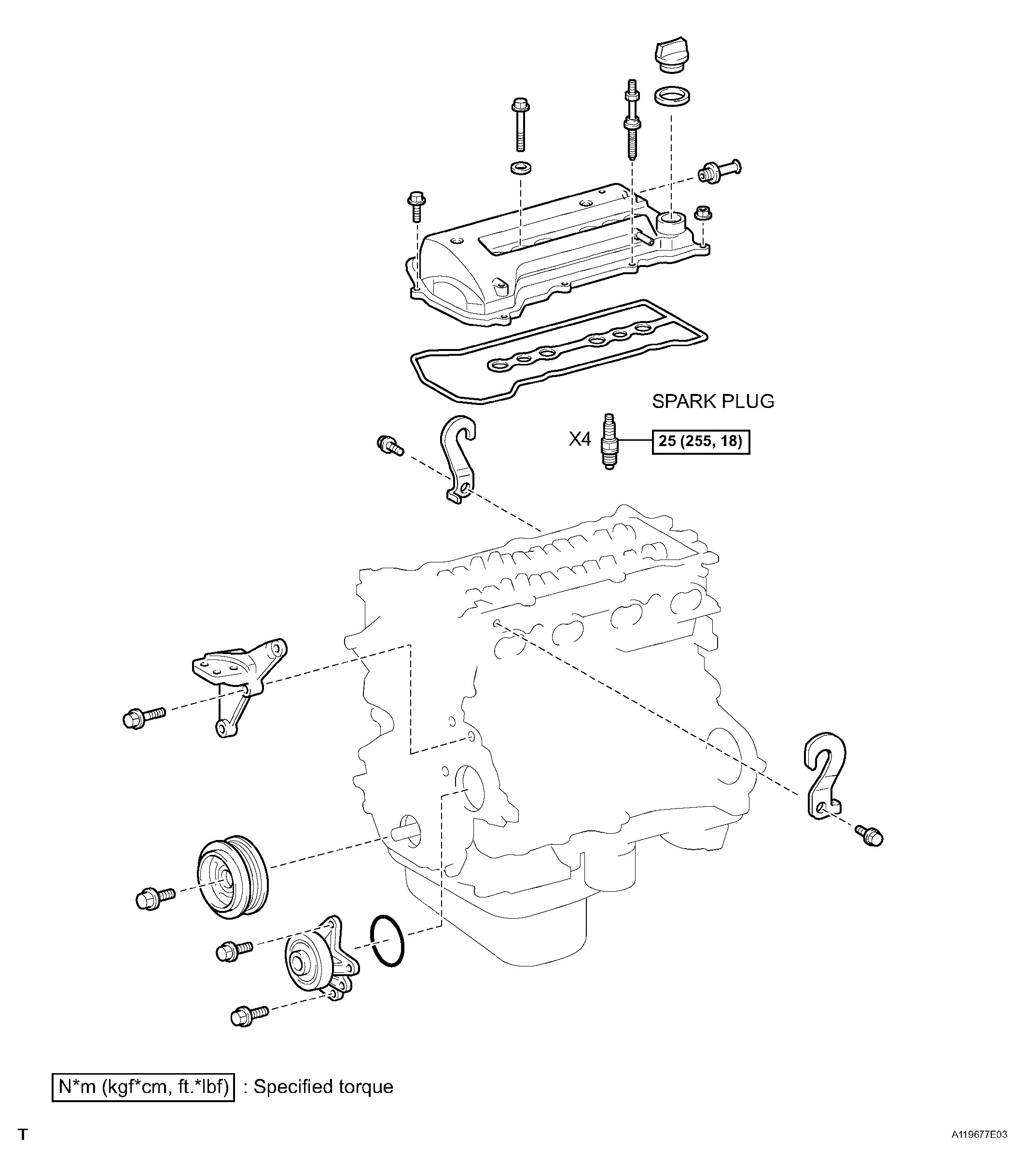

Fig 1: Identifying Ignition System Parts Location (1ZZ-FE) (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

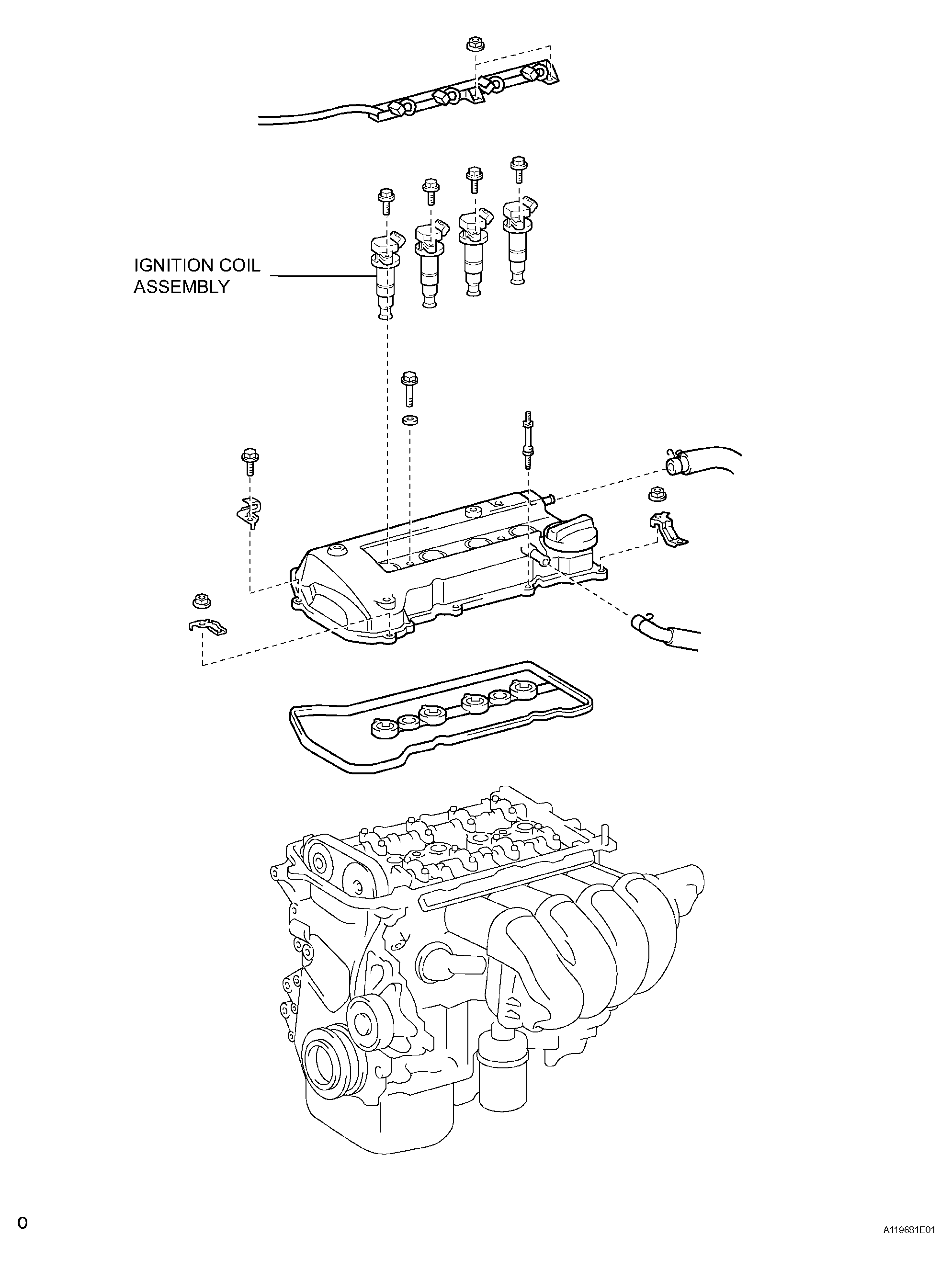

Fig 2: Identifying Ignition System Parts Location (1ZZ-FE) (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
