Charging System (2ZZ-GE): Generator: Components

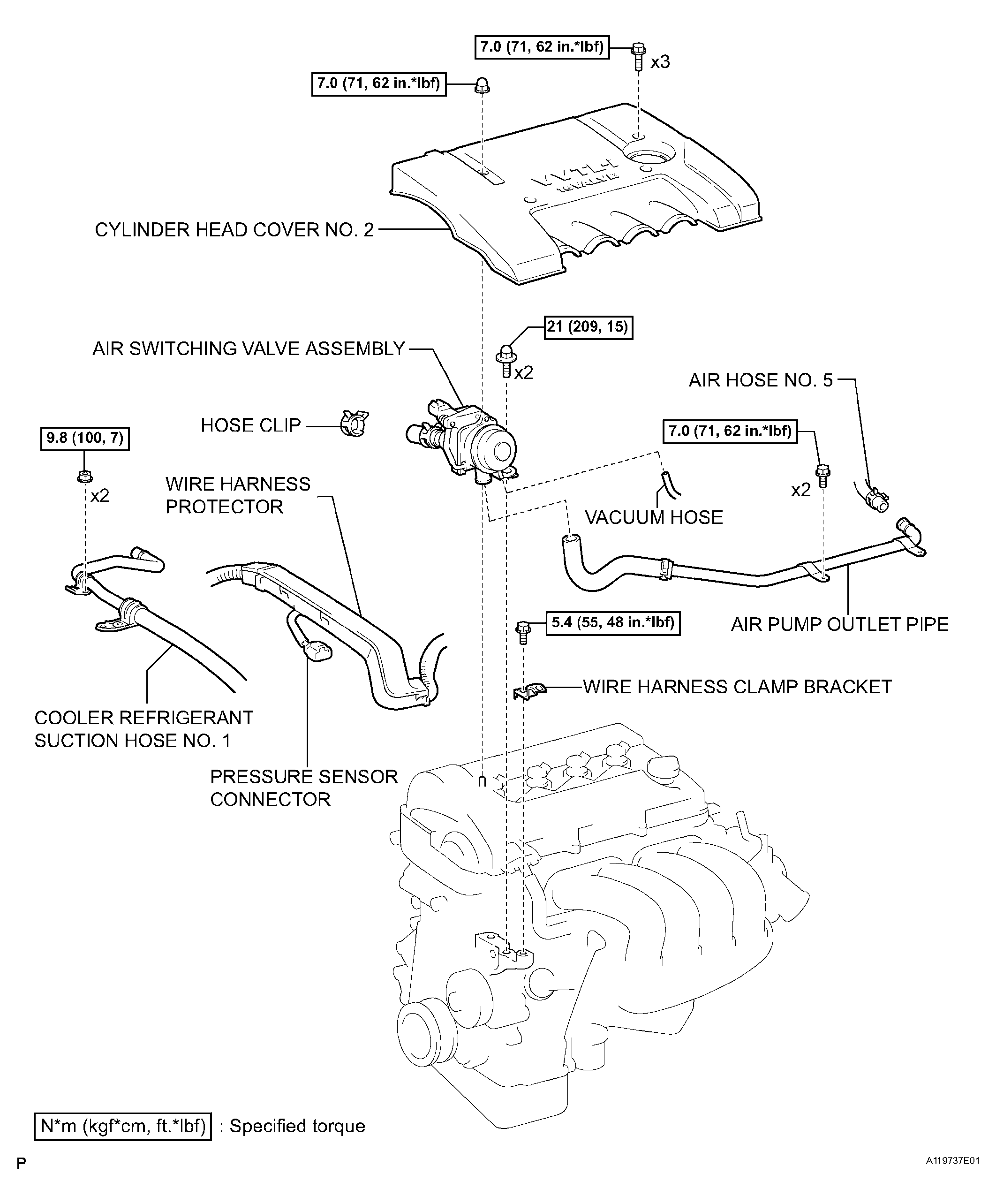

Fig 1: Generator Replacement Components With Torque Specifications

G04462560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

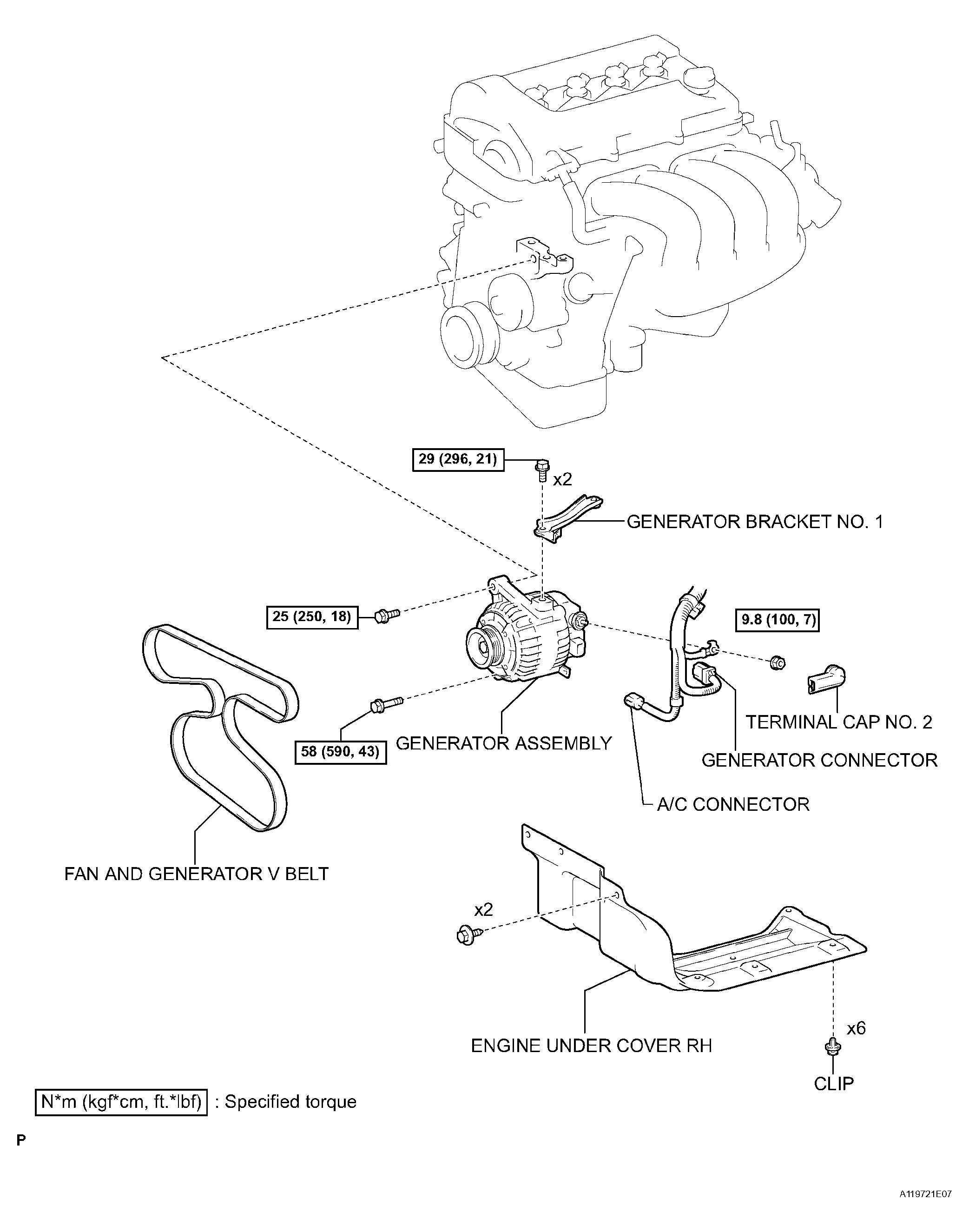

Fig 2: Generator Replacement Components With Torque Specifications

G04462561

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

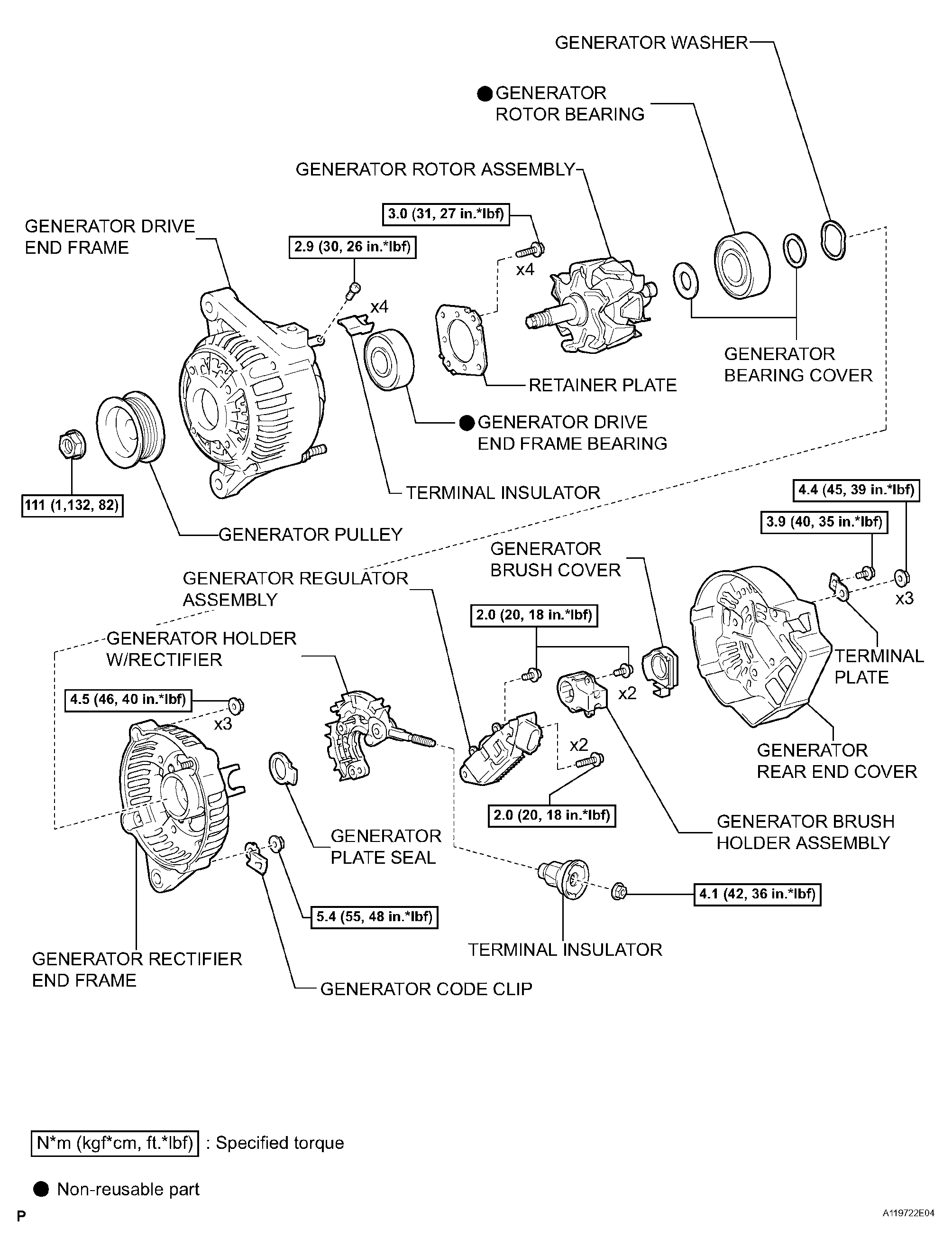

Fig 3: Generator Replacement Components With Torque Specifications

G04462562

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
