Inspection Procedure

HINT:

Troubleshoot each trouble symptom in accordance with the table below.

1. CHECK MIL CONDITION (WHETHER MIL TURNS OFF)
   1. Connect the intelligent tester or OBD II scan tool to the DLC3.
   2. Turn the ignition switch to ON.
   3. Turn the tester or scan tool ON
   4. Check whether any DTCs have been stored (See DTC CHECK / CLEAR  ). Note them down if necessary.
   5. Clear DTCs (See DTC CHECK / CLEAR  ).
   6. Check if the MIL turns off.

      Standard: MIL should turn off.

   OK: REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

   NG: GO TO NEXT STEP

2. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)
   1. Disconnect the E6 ECM connector.
   2. Turn the ignition switch to ON.
   3. Check that the MIL is not illuminated.

      OK: The MIL is not illuminated

   4. Reconnect the ECM connector.

   OK: REPLACE ECM

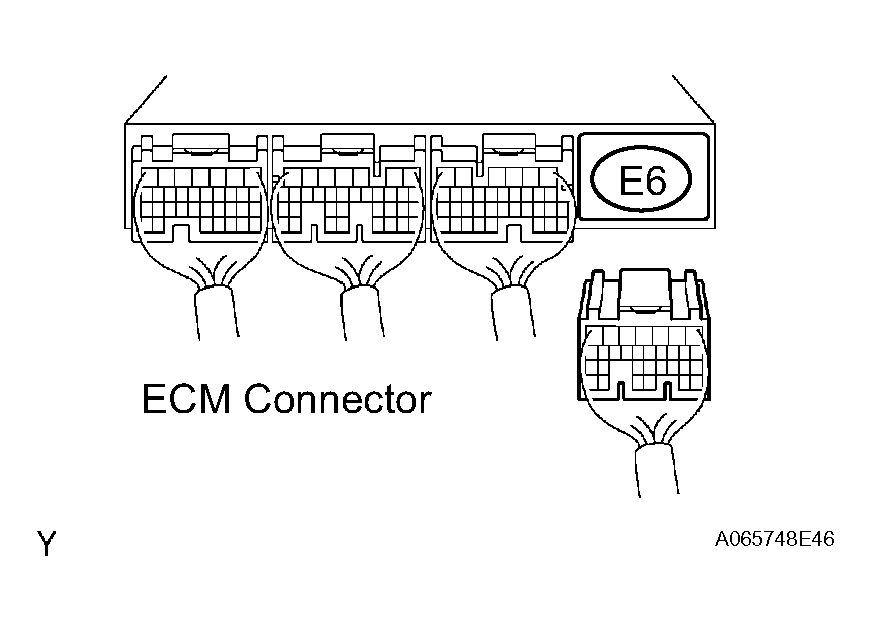

   Fig 1: Disconnecting E6 ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)

3. CHECK MIL (MIL IS ILLUMINATED)
   1. Check if the MIL is illuminated when the ignition switch is turned to ON.

      Standard: The MIL should be illuminated.

   OK: SYSTEM IS OK

   NG: GO TO NEXT STEP

4. INSPECT COMBINATION METER ASSEMBLY (MIL CIRCUIT)
   1. See the combination meter troubleshooting (See HOW TO PROCEED WITH TROUBLESHOOTING ).

   NG: REPAIR OR REPLACE COMBINATION METER ASSEMBLY

   OK: CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)
