MIL Circuit: Wiring Diagram

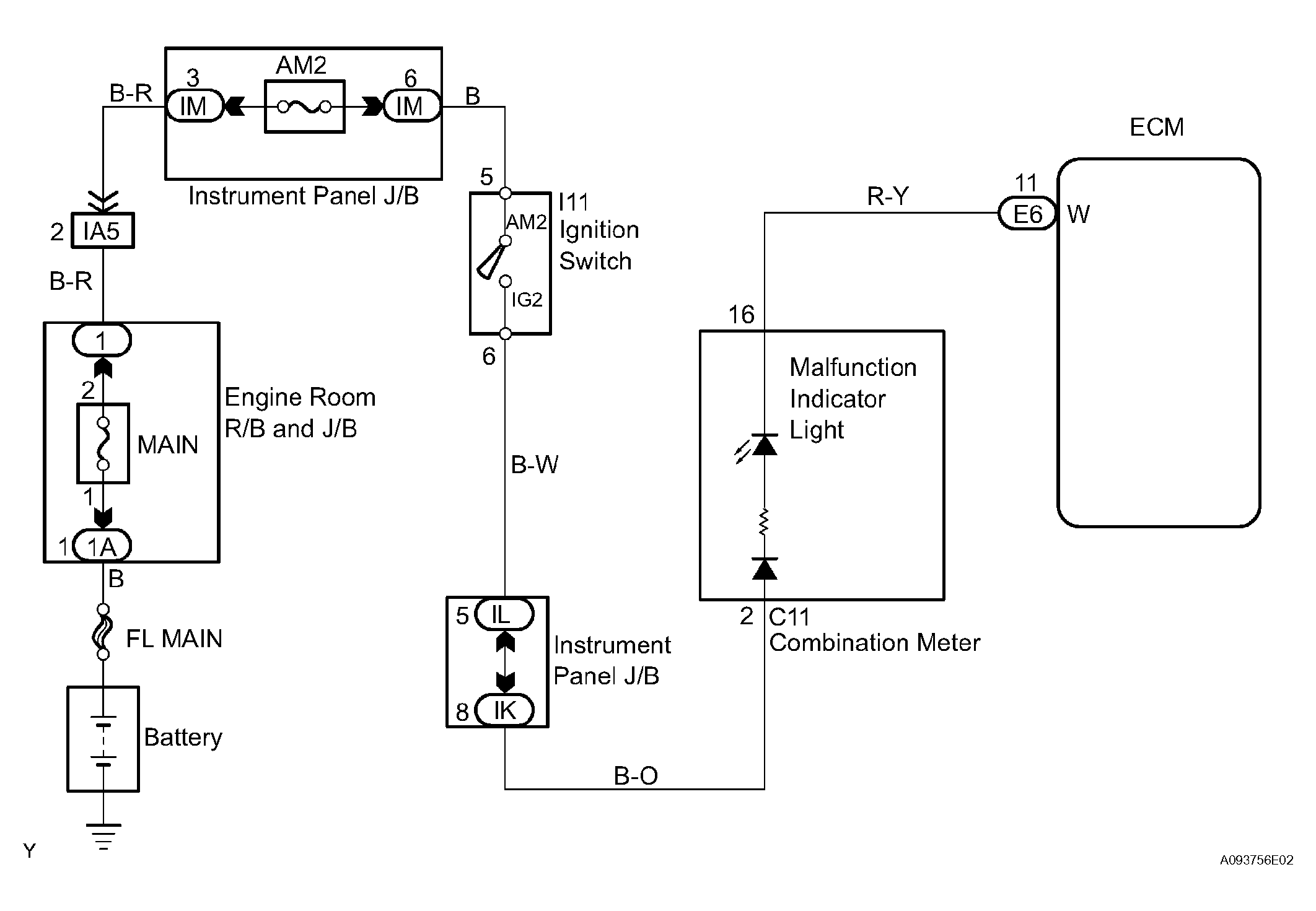

Fig 1: MIL (Malfunction Indicator Lamp) - Wiring Diagram

G04460880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
