DTC P2122-104 Throttle / Pedal Position Sensor / Switch "D" Circuit Low Input; DTC P2123-105 Throttle / Pedal Position Sensor / Switch "D" Circuit High Input; DTC P2127-107 Throttle / Pedal Position Sensor / Switch "E" Circuit Low Input; DTC P2128-108 Throttle / Pedal Position Sensor / Switch "E" Circuit High Input: Wiring Diagram

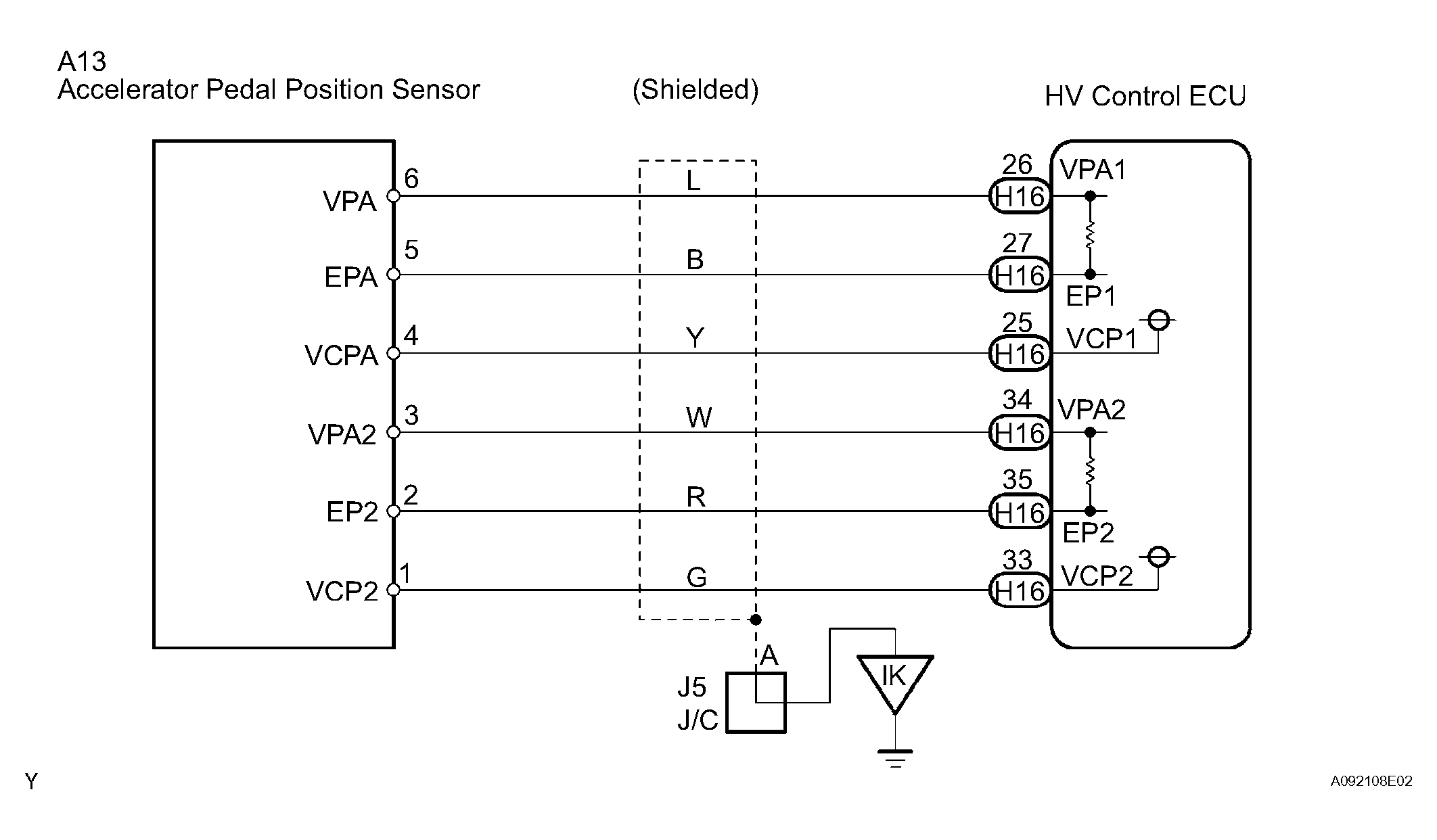

Fig 1: Accelerator Pedal Position Sensor - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
