DTC U0073 Control Module Communication Bus OFF; DTC U0121 Lost Communication with Anti-lock Brake System (ABS) Control Module: Wiring Diagram

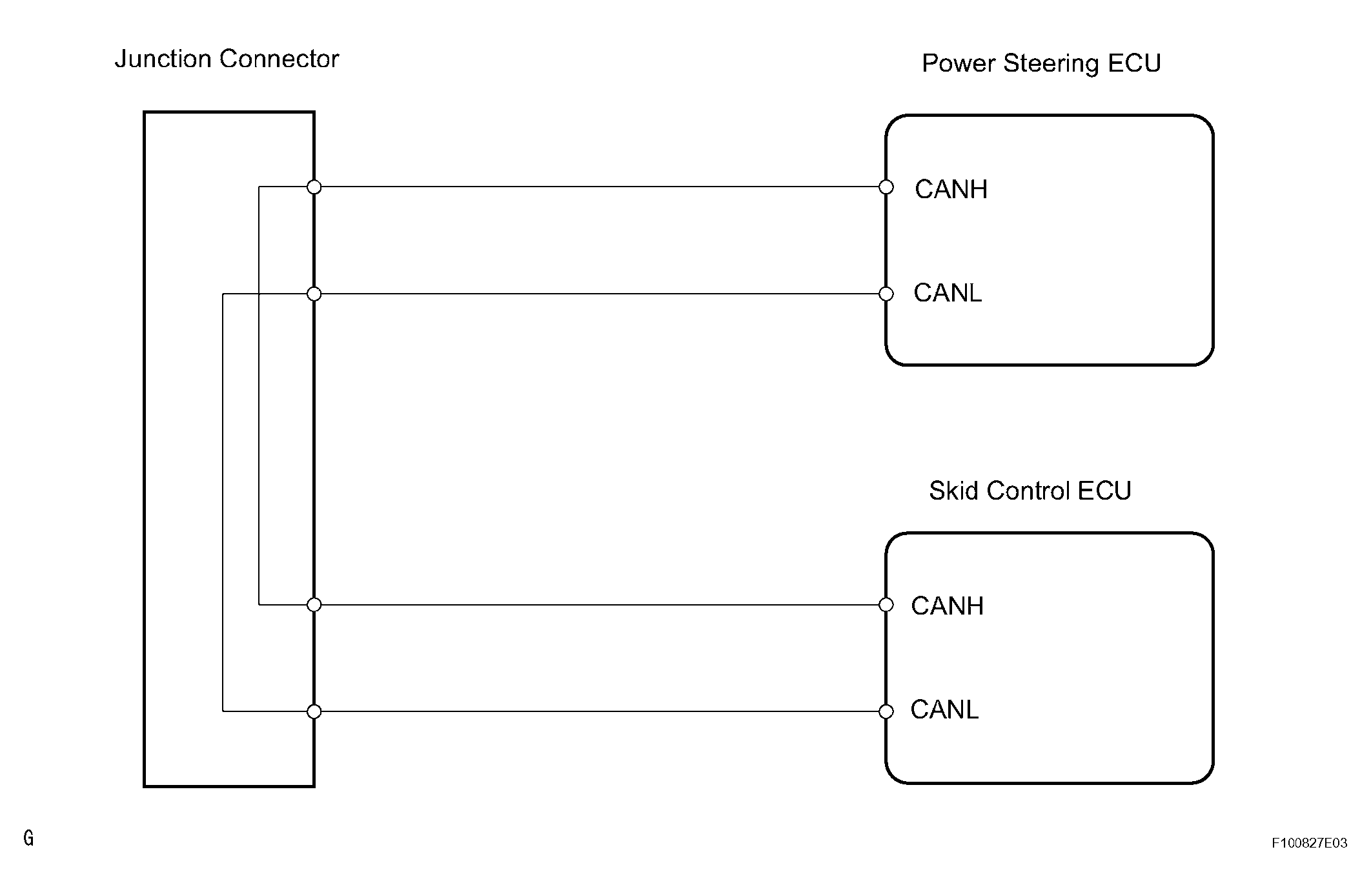

Fig 1: Control Module Communication - Wiring Diagram
G04474964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
