Inspection Procedure

NOTE: It is necessary to register an ID code after replacing the tire pressure warning valve and transmitter and/or the tire pressure warning ECU (see REGISTRATION ).
  1. IDENTIFY TRANSMITTER (CORRESPONDING TO DTC)
    1. Set the pressure of each tire to the specified value.

      Standard pressure

      TIRE PRESSURE SPECIFICATIONS

      Front Rear
      240 kPa (2.4 kgf/cm2 , 35 psi) 230 kPa (2.3 kgf/cm2 , 33 psi)
    2. Connect the intelligent tester (with CAN VIM) to the DLC3.
    3. Turn the power switch ON (IG).
    4. Select TIREPRESS by following the prompts displayed on the intelligent tester.

      Tire pressure warning ECU

      TIRE PRESSURE WARNING ECU CHECK

      Item Measurement Item / Range (Display) Normal Condition Diagnostic Note
      TIREPRESS1 ID1 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -
      TIREPRESS2 ID2 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -
      TIREPRESS3 ID3 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -
      TIREPRESS4 ID4 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/cm2 , 92.5 psi)      		 Actual tire pressure -
    5. Rapidly release the tire pressure from any tire by 40 kPa (0.4 kgf/cm2 , 5.8 psi) for 30 seconds or more.

      HINT:

      • Identify the malfunctioning tire pressure warning valve and transmitter by rapidly releasing the tire pressures from each tire.
      • Record which TIREPRESS data (ID1 to ID5) corresponds to each tire.
    6. Check the DATA LIST.

      Result

      DATA LIST CHART

      Condition Detection Condition
      One of TIREPRESS data (ID1 to ID4) changed Normal
      No TIREPRESS data changed Transmitter corresponding to DTC
      NOTE:
      • It may take up to 1 minute to display the updated tire pressure data.
      • When the TIREPRESS data (IDs 1 to 4) changes, reset the tire pressure of the tires to the specified value, rotate the tires 90 to 270° and recheck.
      • When the transmitter is normal, record the tire location and the transmitter ID.
    7. When the TIREPRESS data (IDs 1 to 4) changes, repeat the same procedure on the rest of the tires (one by one) to identify which tire pressure warning valve and transmitter the DTC corresponds to.
    8. Set the pressure of each tire to the specified value.

      Standard pressure

      TIRE PRESSURE SPECIFICATIONS

      Front Rear
      240 kPa (2.4 kgf/cm2 , 35 psi) 230 kPa (2.3 kgf/cm2 , 33 psi)
    9. Check all transmitters of the tires.

      Result

      RESULT REFERENCE

      Result Detection Condition
      One or more of transmitters abnormal A
      All abnormal B
      All normal C

    B : Go to step   3

    C : END

    A : GO TO NEXT STEP

  2. CHECK TIRE PRESSURE WARNING VALVE AND TRANSMITTER
    1. Select REGIT ID CODE by following the prompts displayed on the intelligent tester.

      Tire pressure warning ECU

      TIRE PRESSURE WARNING ECU CHECK

      Item Measurement Item / Range (Display) Normal Condition Diagnostic Note
      REGIT ID1 CODE Registered ID1 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID1 is display -
      REGIT ID2 CODE Registered ID2 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID2 is display -
      REGIT ID3 CODE Registered ID3 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID3 is display -
      REGIT ID4 CODE Registered ID4 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID4 is display -
    2. Remove the tire pressure warning valve and transmitter and check its ID number (see REMOVAL ).
    3. Check whether the recorded transmitter ID and the actual transmitter ID match.

      Result

      RESULT REFERENCE

      Result Detection Condition
      Unmatched A
      Matched B
      Fig 1: Locating Transmitter ID
      G04474513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B : REPLACE TIRE PRESSURE WARNING VALVE AND TRANSMITTER

    A : PERFORM REGISTRATION (TRANSMITTER ID)

  3. CHECK WIRE HARNESS (ECU - RECEIVER)
    1. Disconnect the T11 ECU connector.
    2. Disconnect the T10 receiver connector.

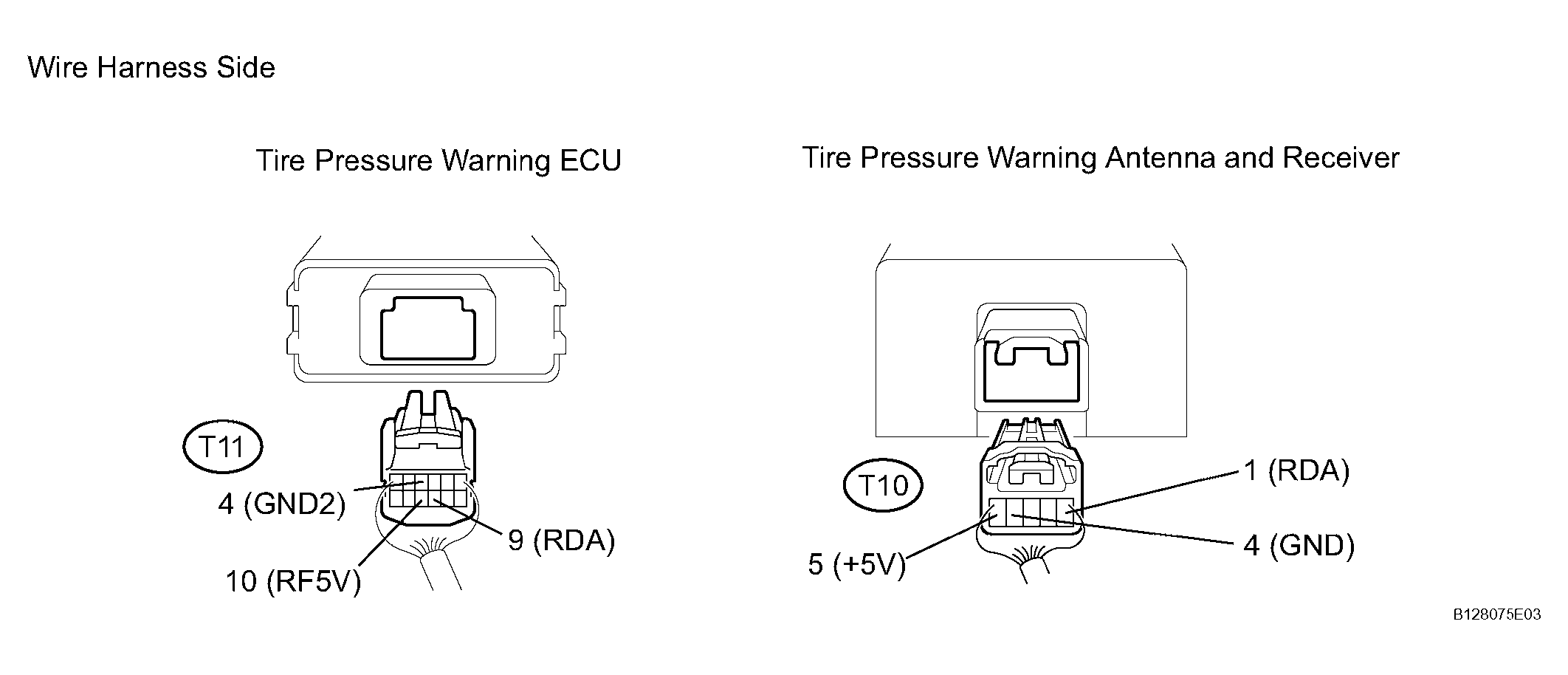

      Fig 2: Disconnecting T11 ECU Connector And T10 Receiver Connector
      G04474514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      CONNECTOR TERMINAL RESISTANCE SPECIFICATIONS

      Tester Connection Specified Condition
      T11-10 (RF5V) - T10-5 (+5V) Below 1 Ω
      T11-9 (RDA) - T10-1 (RDA)
      T11-4 (GND2) - T10-4 (GND)

    NG : REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK : GO TO NEXT STEP

  4. READ VALUE OF INTELLIGENT TESTER (TIRE PRESSURE)
    1. Check the DATA LIST tire pressure valve.

      Tire pressure warning ECU

      DATA LIST CHART

      Item Measurement Item / Range (Display) Normal Condition Diagnostic Note
      TIREPRESS1 ID1 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -
      TIREPRESS2 ID2 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -
      TIREPRESS3 ID3 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -
      TIREPRESS4 ID4 tire pressure/ minimum: 0 kPa (0 kgf/cm2 , 0 psi)
      maximum: 637.5 kPa (6.5 kgf/ cm2 , 92.5 psi)      		 Actual tire pressure -

      OK : All tire pressure readings are equal to the actual tire pressure.

      NOTE: It may take up to 1 minute to display the updated tire pressure data.

    OK : END

    NG : GO TO NEXT STEP

  5. CHECK ID CODE (TIRE PRESSURE WARNING VALVE AND TRANSMITTER)
    1. Select REGIT ID CODE by following the prompts displayed on the intelligent tester.

      Tire pressure warning ECU

      TIRE PRESSURE WARNING ECU CHECK

      Item Measurement Item / Range (Display) Normal Condition Diagnostic Note
      REGIT ID1 CODE Registered ID1 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID1 is display -
      REGIT ID2 CODE Registered ID2 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID2 is display -
      REGIT ID3 CODE Registered ID3 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID3 is display -
      REGIT ID4 CODE Registered ID4 code/ minimum: 0 maximum: FFFFFFF The ID No. registered in transmitter ID4 is display -
    2. Remove the tire pressure monitor valve and check its ID number (see REMOVAL ).
    3. Check whether the recorded transmitter ID and the actual transmitter ID match.

      Result

      RESULT REFERENCE

      Result Detection Condition
      Unmatched A
      Matched B

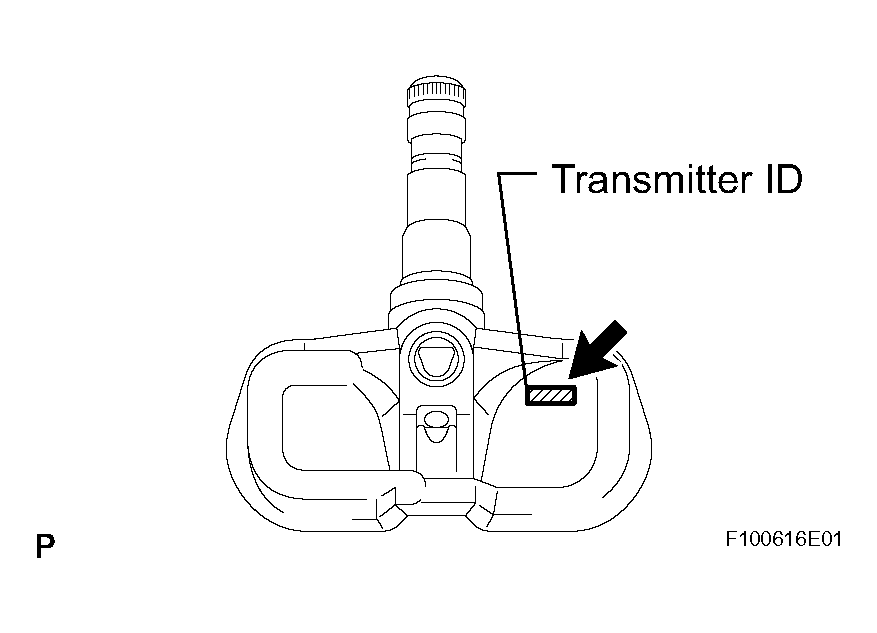

      Fig 3: Locating Transmitter ID
      G04474515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    B : REPLACE TIRE PRESSURE WARNING RECEIVER AND TRANSMITTER

    A : PERFORM REGISTRATION (TRANSMITTER ID)
