Network Gateway Ecu: Installation

INSTALL NETWORK GATEWAY ECU
1. Install the network gateway ECU with the bolt.
2. Connect the connector.
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
1. Install the instrument panel (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).

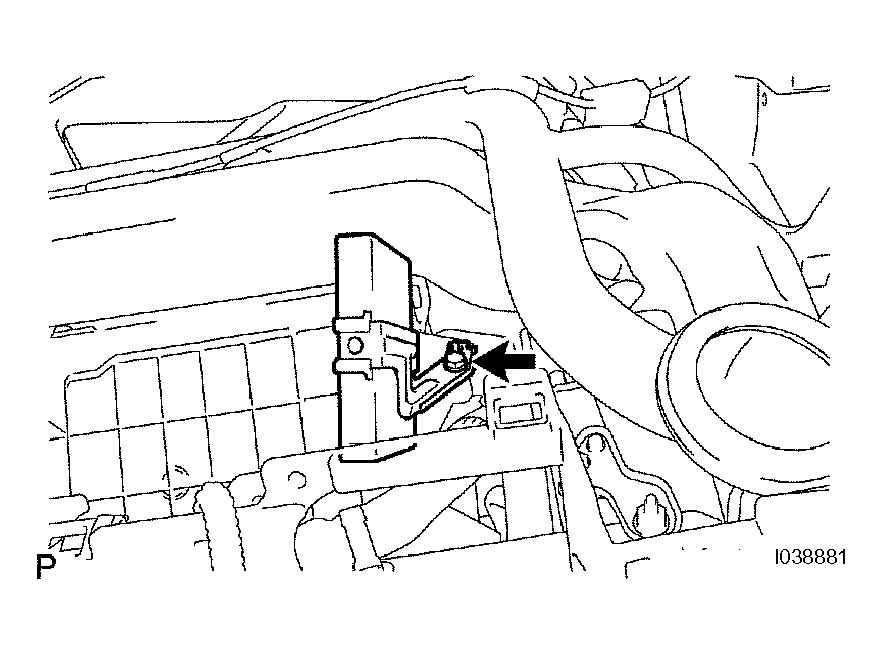

  Fig 1: Installing Network Gateway ECU With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
