DTC C0210/33 Rear Speed Sensor RH Circuit; DTC C0215/34 Rear Speed Sensor LH Circuit; DTC C1273/73 Low Output Signal of Rear Speed Sensor RH (Test Mode DTC); DTC C1274/74 Low Output Signal of Rear Speed Sensor LH (Test Mode DTC): Wiring Diagram

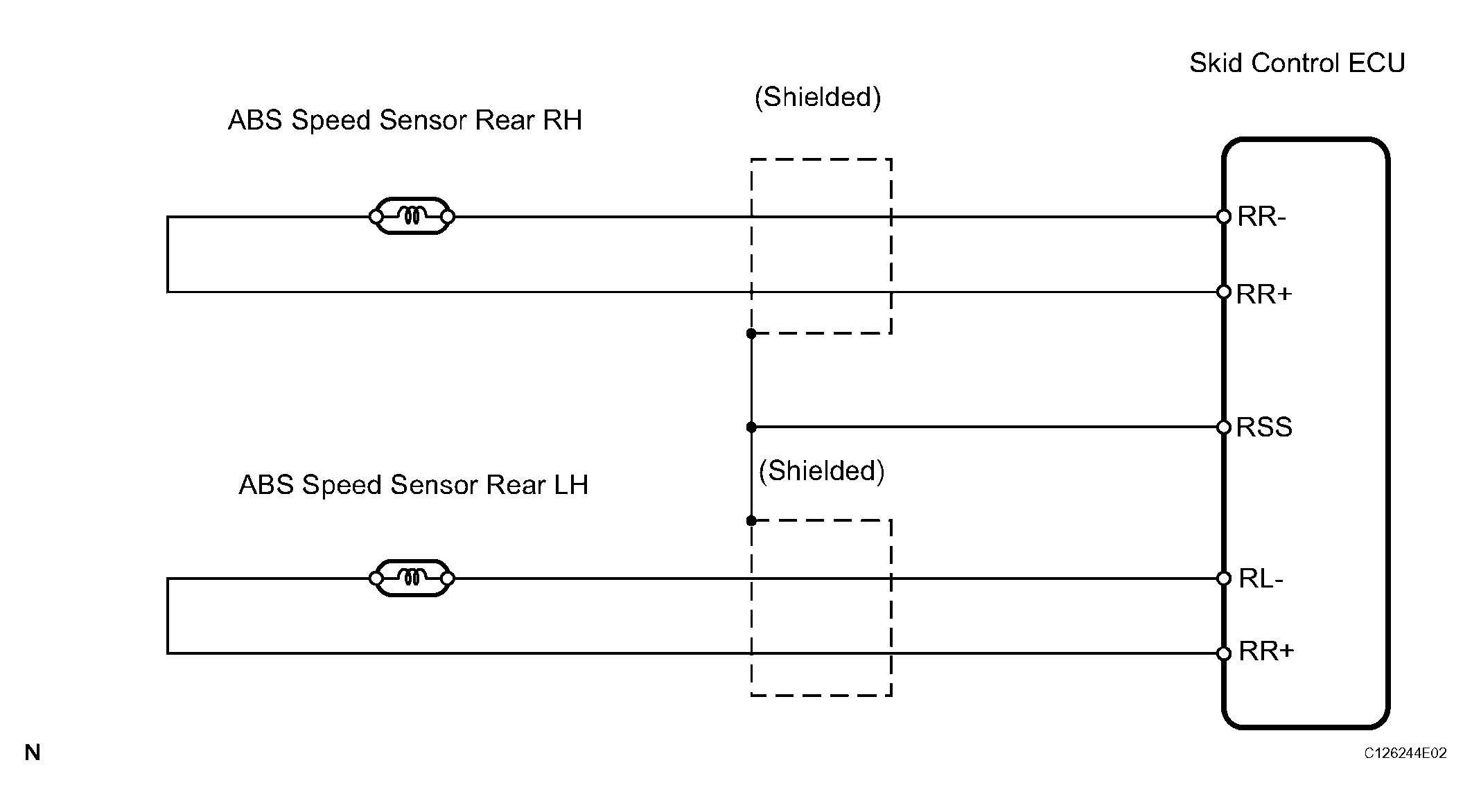

Fig 1: ABS Speed Sensor Rear RH/LH Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
