DTC C1311/11 Open in Main Relay 1 Circuit; DTC C1312/12 Short in Main Relay 1 Circuit; DTC C1313/13 Open in Main Relay 2 Circuit; DTC C1314/14 Short in Main Relay 2 Circuit: Wiring Diagram

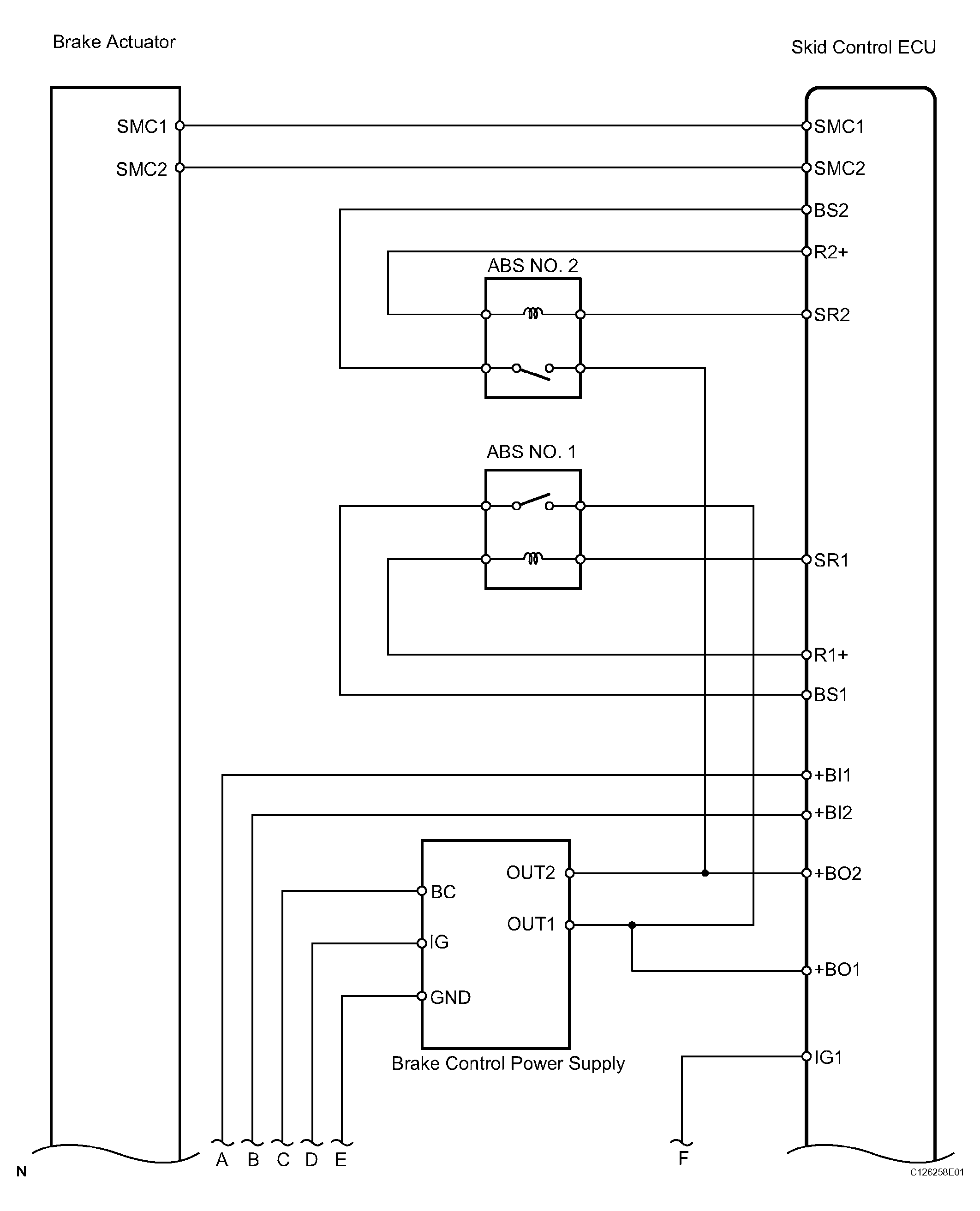

Fig 1: Skid Control ECU Malfunction - Wiring Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

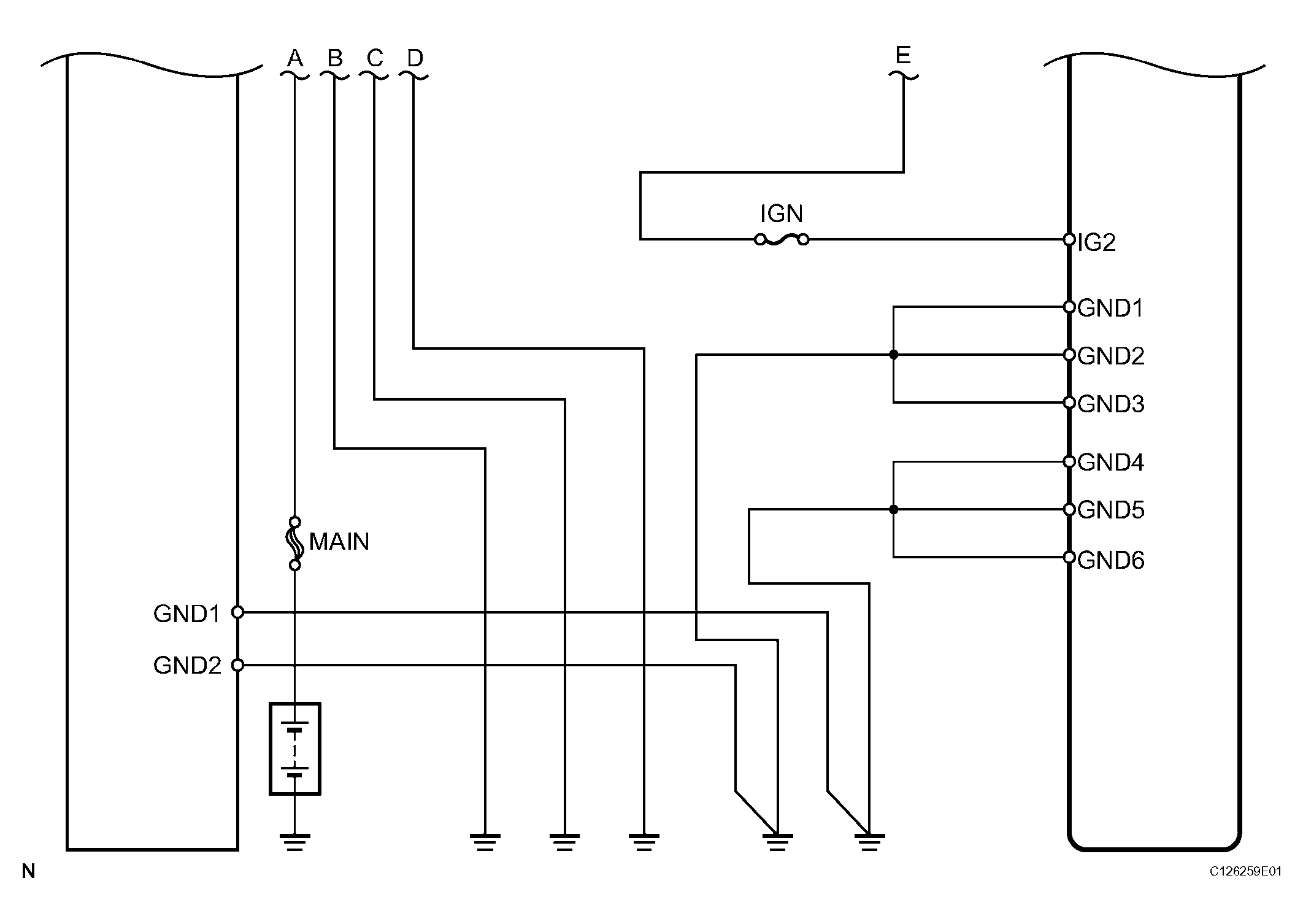

Fig 2: Skid Control ECU Malfunction - Wiring Diagram (2 Of 3)

Fig 3: Skid Control ECU Malfunction - Wiring Diagram (3 Of 3)
