Lower Instrument Panel: Components

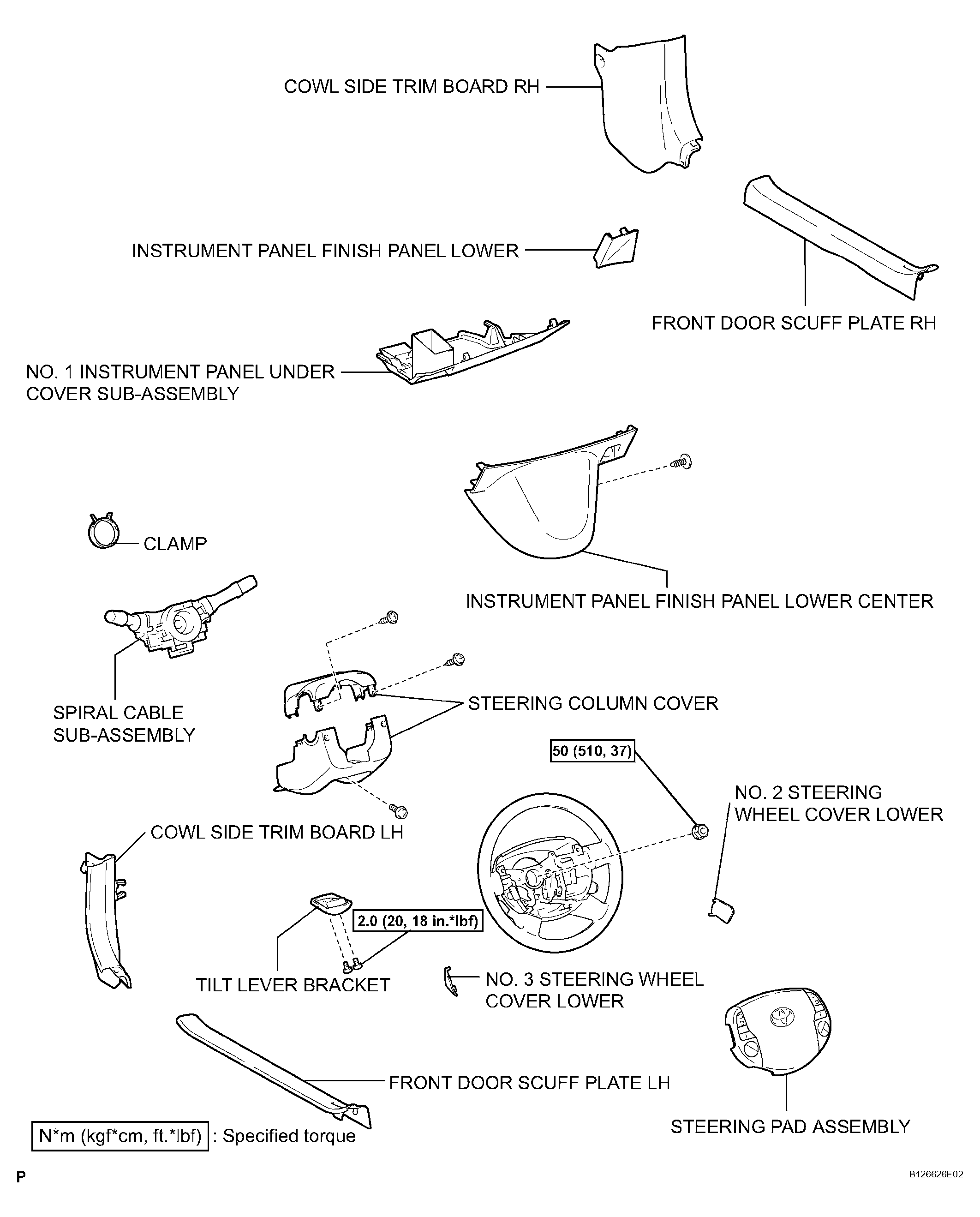

Fig 1: Identifying Lower Instrument Panel Components (1 Of 2)
G04476911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

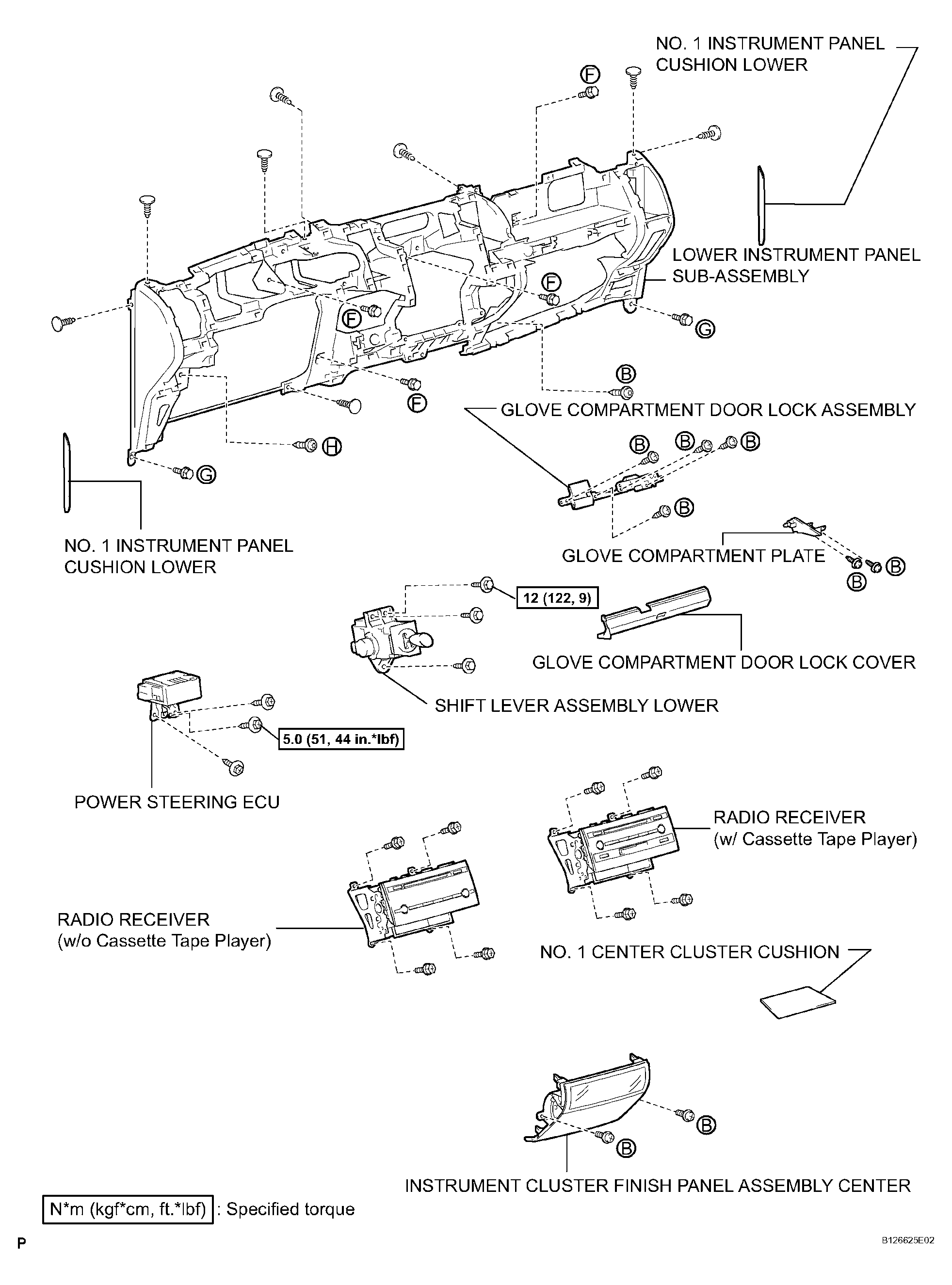

Fig 2: Identifying Lower Instrument Panel Components (2 Of 2)
G04476912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
