Rear Console Box: Components

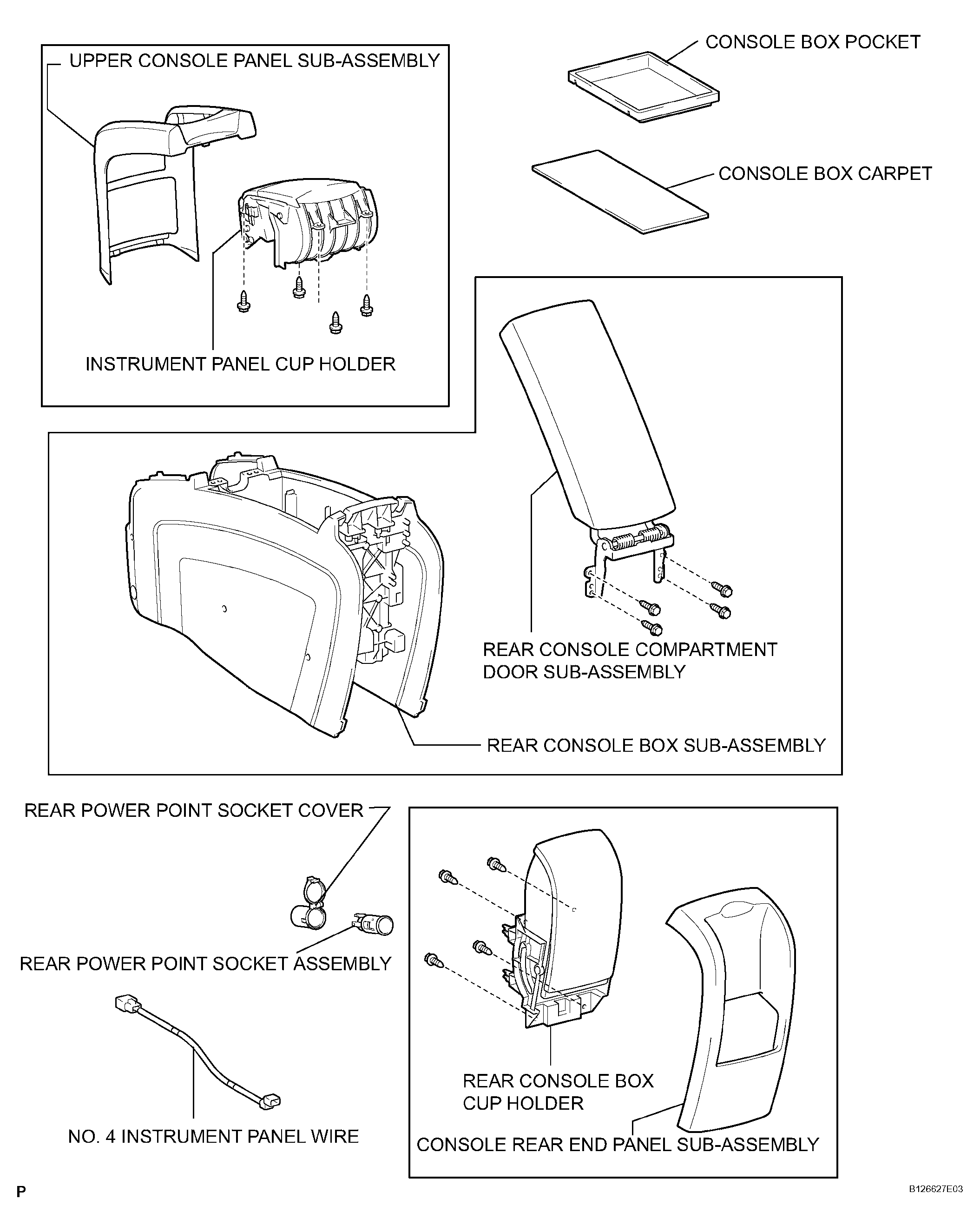

Fig 1: Identifying Rear Console Box Components
G04476928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
