Inspection Procedure

HINT:

• If DTCs related to different systems that have terminal E2 as the ground terminal are output simultaneously, terminal E2 may have an open circuit.
• Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. READ OUTPUT DTC
   1. Connect the intelligent tester to the DLC3.
   2. Turn the power switch ON (IG) and turn the intelligent tester ON.
   3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
   4. Read DTCs.

      Result

      RESULT REFERENCE



      Display (DTC Output)	Proceed To
      P0110/24	A
      P0112/24	B
      P0113/24	C

   B : Go to step   5

   C : Go to step   3

   A : Go to Next Step

2. READ VALUE OF INTELLIGENT TESTER (INTAKE AIR TEMPERATURE)
   1. Connect the intelligent tester to the DLC3.
   2. Turn the power switch ON (IG).
   3. Turn the intelligent tester ON.
   4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
   5. Read the value.

      Temperature value: Same as the ambient air temperature.

      Result

      RESULT REFERENCE



      Temperature Displayed	Proceed to
      -40°C (-40°F)	A
      140°C (284°F)	B
      OK (Same as ambient air temperature)	C

      HINT:

      • If there is an open circuit, the intelligent tester indicates -40°C (-40°F).
      • If there is a short circuit, the intelligent tester indicates 140°C (284°F).

   B : Go to step   5

   C : CHECK FOR INTERMITTENT PROBLEMS

   A : Go to Next Step

3. READ VALUE OF INTELLIGENT TESTER (CHECK FOR OPEN IN WIRE HARNESS)
   1. Disconnect the M1 mass air flow meter connector.
      Fig 1: Disconnecting M1 Mass Air Flow Meter Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect terminals THA and E2 of the mass air flow meter wire harness side connector.
   3. Turn the power switch ON (IG).
   4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR. Read the value.

      OK : Temperature value: 140°C (284°F)

   5. Reconnect the mass air flow meter connector.

   OK : CONFIRM GOOD CONNECTION AT SENSOR. IF OK, REPLACE MASS AIR FLOW METER

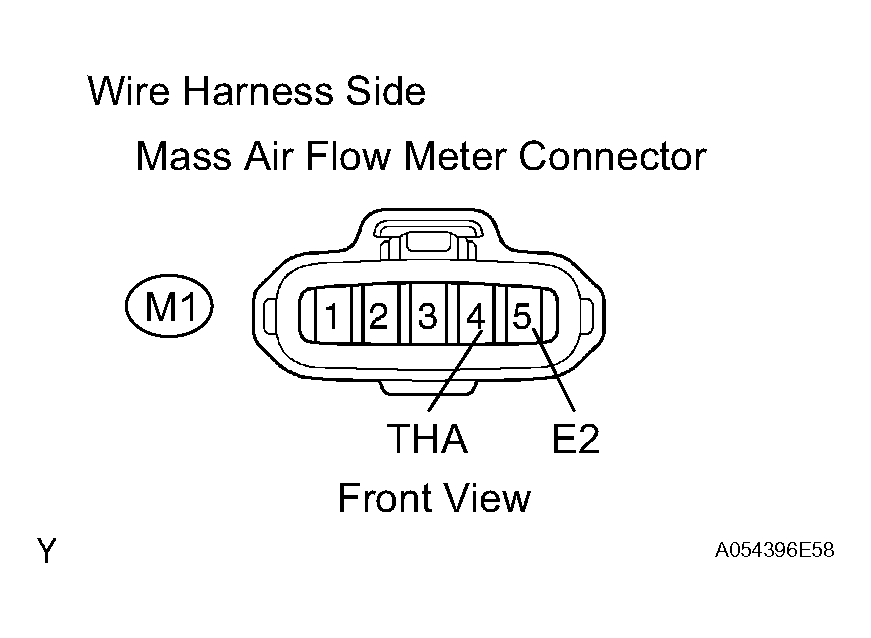

   Fig 2: Identifying Mass Air Flow Meter Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : GO TO NEXT STEP

4. READ VALUE OF INTELLIGENT TESTER (CHECK FOR OPEN IN ECM)
   1. Disconnect the M1 mass air flow meter connector.

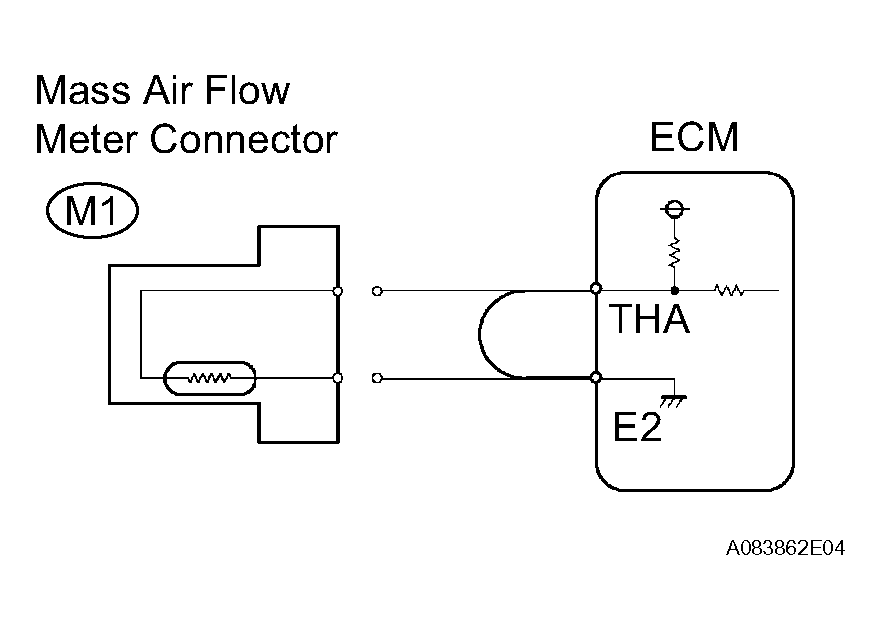

      Fig 3: Disconnecting M1 Mass Air Flow Meter Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect terminals THA and E2 of the E4 ECM connector.

      HINT:

      Before checking, do a visual and contact pressure check for the ECM connector.

   3. Turn the power switch ON (IG).
   4. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR. Read the value.

      OK : Temperature value: 140°C (284°F)

   5. Reconnect the mass air flow meter connector.

   OK : REPAIR OR REPLACE HARNESS AND CONNECTOR

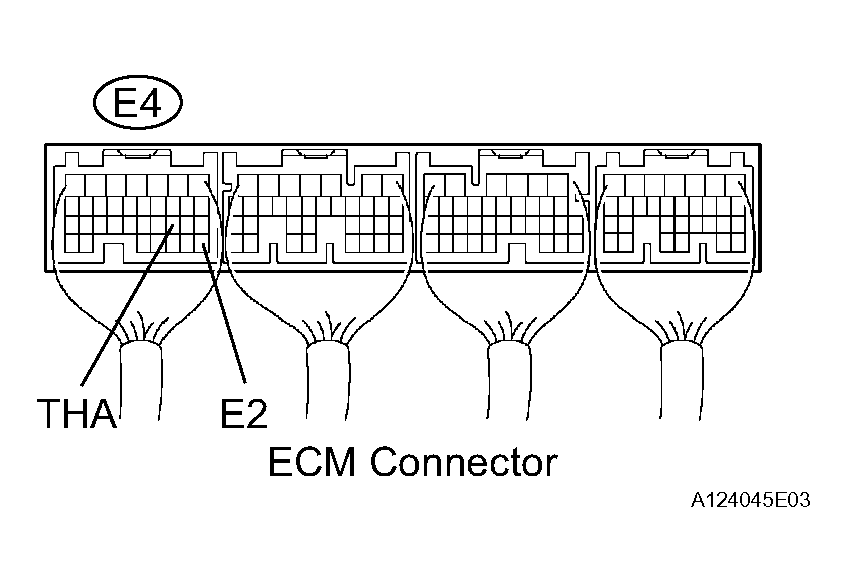

   Fig 4: Identifying ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : CONFIRM GOOD CONNECTION AT ECM. IF OK, REPLACE ECM

5. READ VALUE OF INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)
   1. Disconnect the M1 mass air flow meter connector.
   2. Turn the power switch ON (IG).
   3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
   4. Read the value.

      OK : Temperature value: -40°C (-40°F)

   5. Reconnect the mass air flow meter connector.

   OK : REPLACE MASS AIR FLOW METER

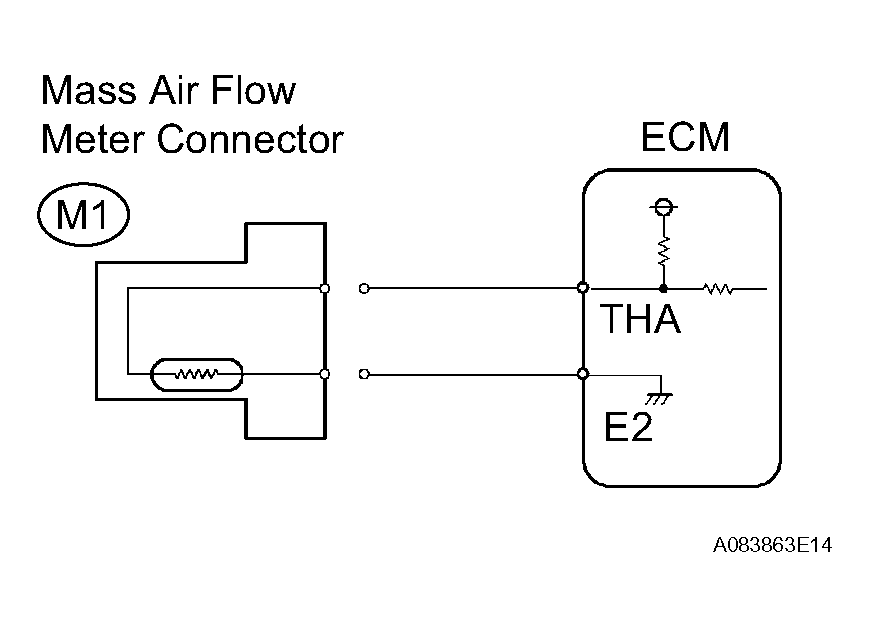

   Fig 5: Disconnecting M1 Mass Air Flow Meter Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : GO TO NEXT STEP

6. READ VALUE OF INTELLIGENT TESTER (CHECK FOR SHORT IN ECM)
   1. Disconnect the E4 ECM connector.

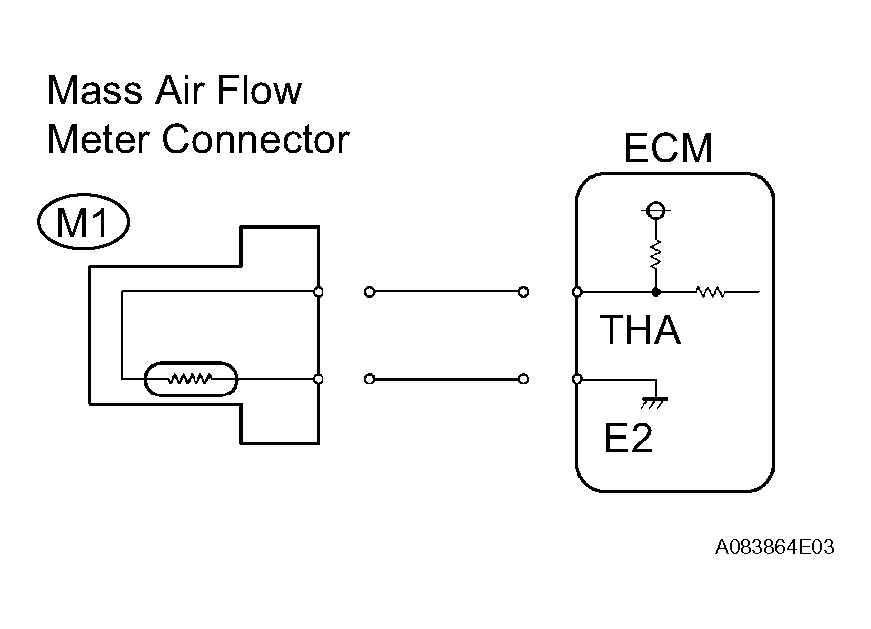

      Fig 6: Disconnecting M1 Mass Air Flow Meter Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Turn the power switch ON (IG).
   3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
   4. Read the value.

      OK : Temperature value: -40°C (-40°F)

   5. Reconnect the mass air flow meter connector.

   OK : REPAIR OR REPLACE HARNESS AND CONNECTOR

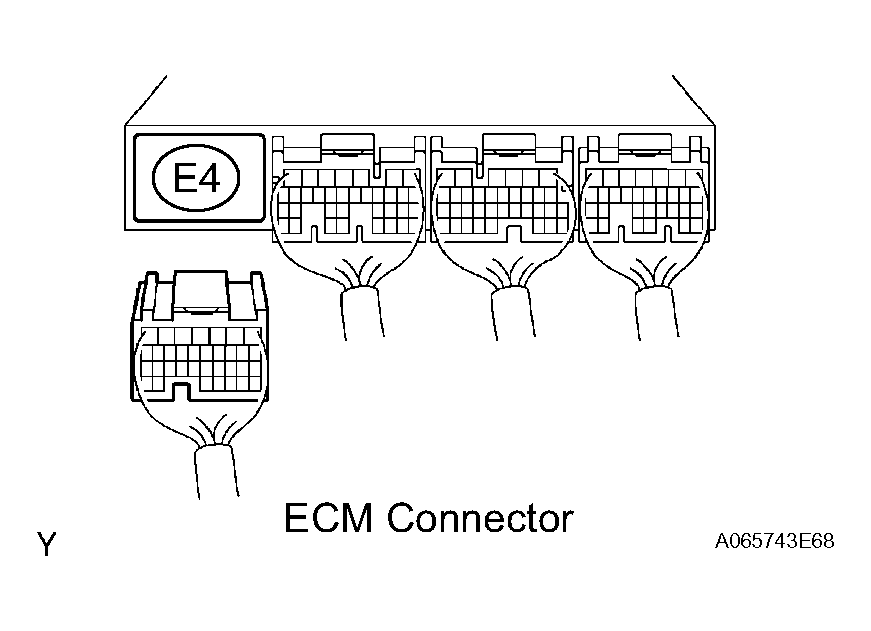

   Fig 7: Disconnecting E4 ECM Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG : REPLACE ECM
