Battery Current Sensor: Installation

INSTALL BATTERY CURRENT SENSOR
CAUTION: Wear insulating gloves.
1. Install the battery current sensor with the 2 screws.
  Torque: 1.4 N*m (14 kgf*cm, 12 in.*lbf)
2. Connect the connector.

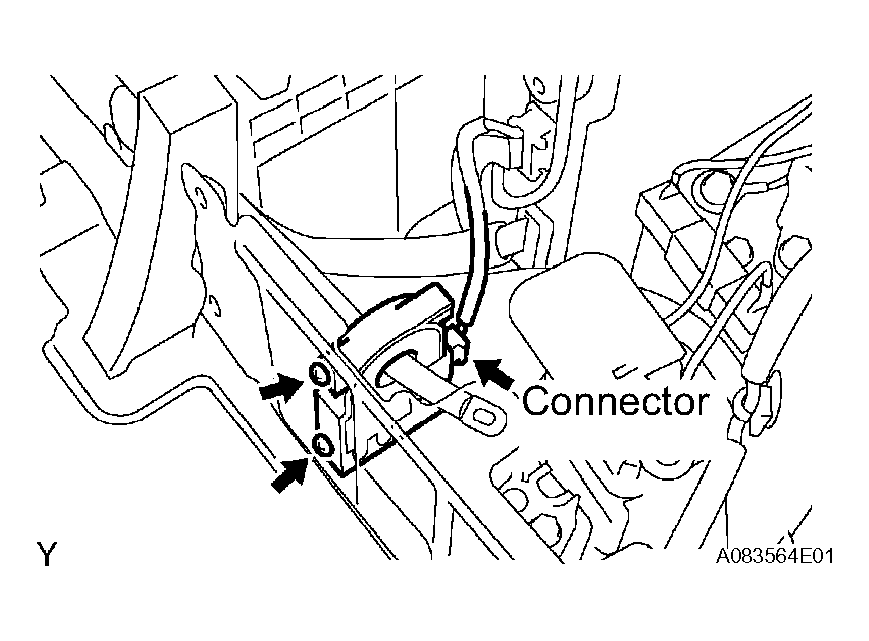

  Fig 1: Installing Battery Current Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the main battery cable with a new nut.
  Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

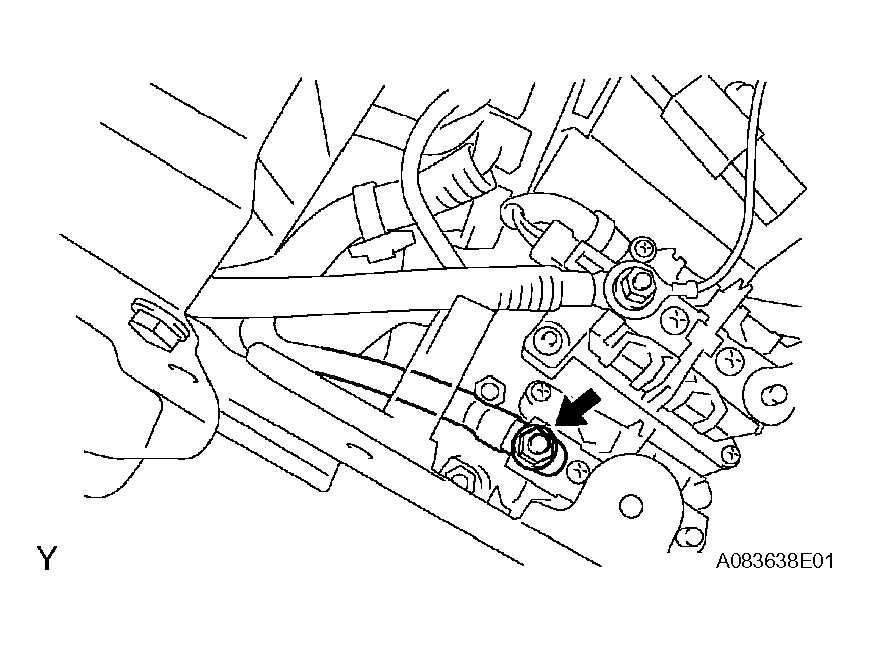

  Fig 2: Installing Main Battery Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the terminal cover.
INSTALL NO. 6 BATTERY CARRIER PANEL (See INSTALLATION )
INSTALL BATTERY CARRIER BRACKET (See INSTALLATION )
INSTALL DECK TRIM SIDE PANEL LH (See INSTALLATION )
INSTALL DECK FLOOR BOX LH (See INSTALLATION )
INSTALL REAR NO. 4 FLOOR BOARD (See INSTALLATION )

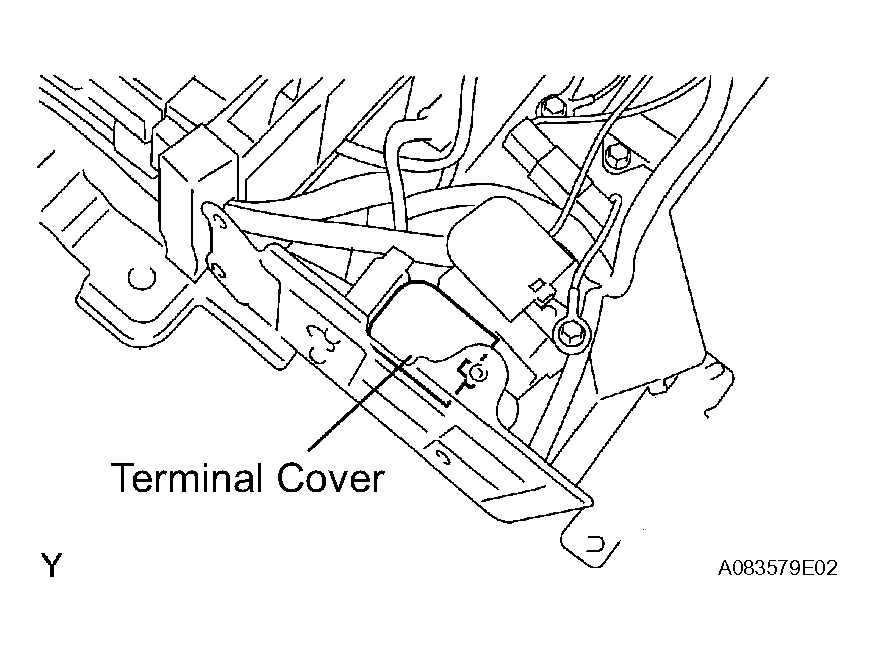

Fig 3: Installing Terminal Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SIDE SEAT BACK FRAME LH (See INSTALLATION )
INSTALL REAR NO. 1 FLOOR BOARD (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL TONNEAU COVER (See INSTALLATION )
INSTALL REAR DECK TRIM COVER (See INSTALLATION )
INSTALL SERVICE PLUG GRIP (See REMOVAL )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See INSTALLATION )
INSTALL REAR NO. 3 FLOOR BOARD (See INSTALLATION )
INSTALL REAR DECK FLOOR BOX (See INSTALLATION )
INSTALL REAR NO. 2 FLOOR BOARD (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
