Battery Plug: Installation

INSTALL BATTERY PLUG
1. Temporarily fasten the service plug.
2. Install the service plug to the upper battery carrier with the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
3. Assemble the connector clamp.
INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER
1. Temporarily fasten the wire harness protector cover to the service plug.
2. Install the wiring harness protector cover through the service plug with 2 new nuts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

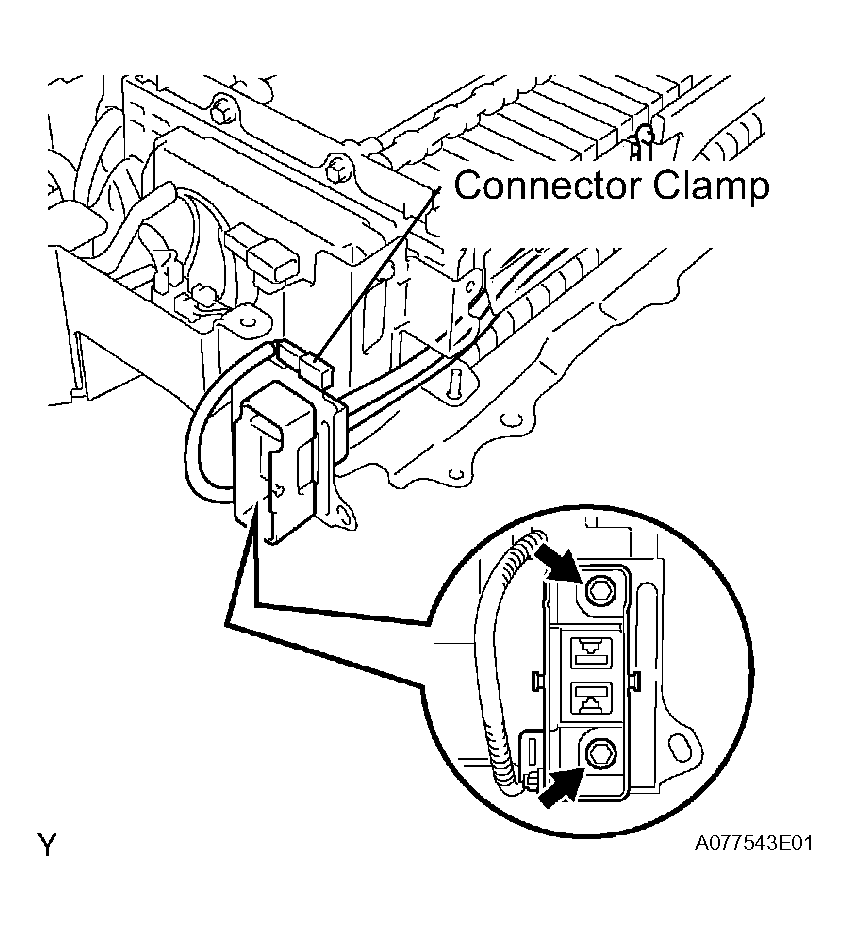

  Fig 1: Installing Service Plug To Upper Battery Carrier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BATTERY CLAMP PAD
CAUTION: Wear insulating gloves.
1. Install a new clamp pad (the battery carrier cushion).
INSTALL BATTERY COVER (See INSTALLATION )
INSTALL HV BATTERY ASSEMBLY
1. Install the HV battery to the vehicle (see INSTALLATION ).

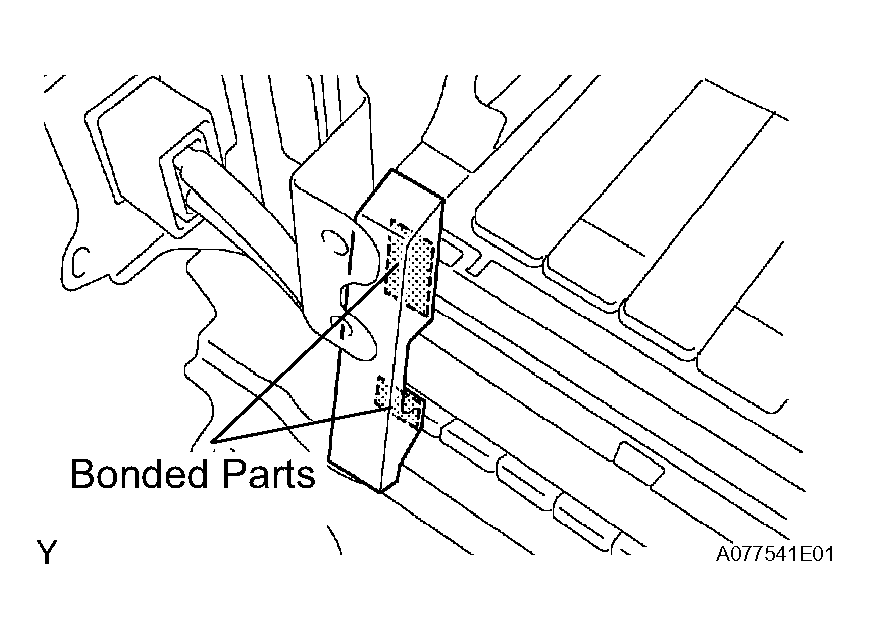

  Fig 2: Installing Battery Clamp Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SERVICE PLUG GRIP (See REMOVAL )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See INSTALLATION )
INSTALL REAR NO. 3 FLOOR BOARD (See INSTALLATION )
INSTALL REAR DECK FLOOR BOX (See INSTALLATION )
INSTALL REAR NO. 2 FLOOR BOARD (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
