Frame Wire: Installation

  1. INSTALL NO. 2 FRAME WIRE
    CAUTION: Wear insulating gloves.
    1. Install the No. 2 frame wire with new 26 nuts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

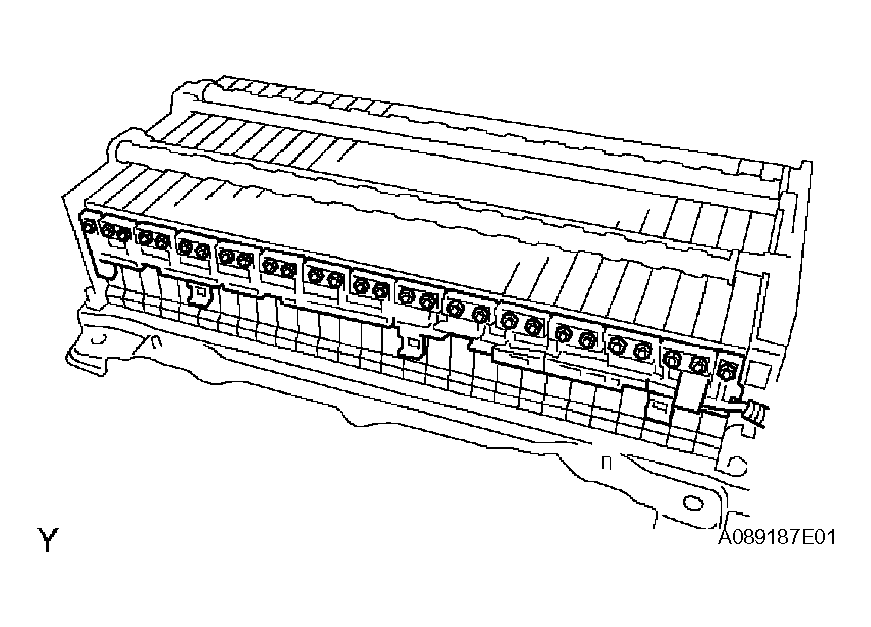

      Fig 1: Installing Frame Wire
      G04473945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the No. 2 frame wire connector to the battery ECU, then connect the clamp.
    3. Connect the temperature sensor connector to the battery ECU.
  2. INSTALL NO. 2 MAIN BATTERY CABLE (See  INSTALLATION   )
  3. INSTALL MAIN BATTERY CABLE (See  INSTALLATION   )
  4. INSTALL NO. 3 BATTERY CARRIER CUSHION (See  INSTALLATION   )

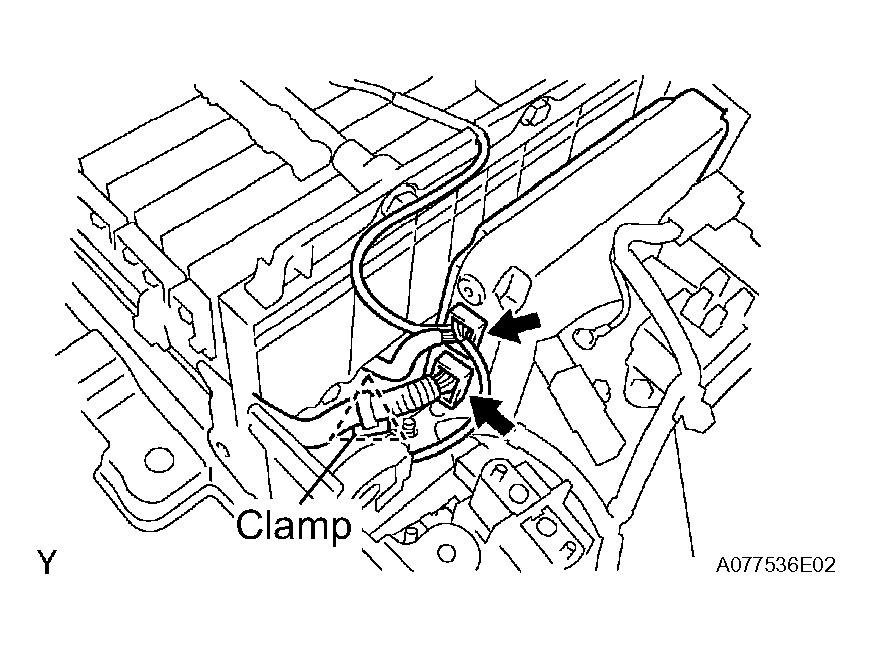

    Fig 2: Connecting Temperature Sensor Connector To Battery ECU
    G04473946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER (See  INSTALLATION   )
  6. INSTALL NO. 3 WIRE HARNESS PROTECTOR COVER (See  INSTALLATION   )
  7. INSTALL BATTERY COVER (See  INSTALLATION   )
  8. INSTALL HV BATTERY ASSEMBLY
    1. Install the HV battery to the vehicle (see INSTALLATION  ).
  9. INSTALL SERVICE PLUG GRIP (See  REMOVAL   )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See  INSTALLATION  )
  11. INSTALL REAR NO. 3 FLOOR BOARD (See  INSTALLATION  )
  12. INSTALL REAR DECK FLOOR BOX (See  INSTALLATION  )
  13. INSTALL REAR NO. 2 FLOOR BOARD (See  INSTALLATION  )
  14. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
