Junction Block: Installation

INSTALL JUNCTION BLOCK
CAUTION: Wear insulating gloves.
1. Install the junction block assembly with 26 new nuts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

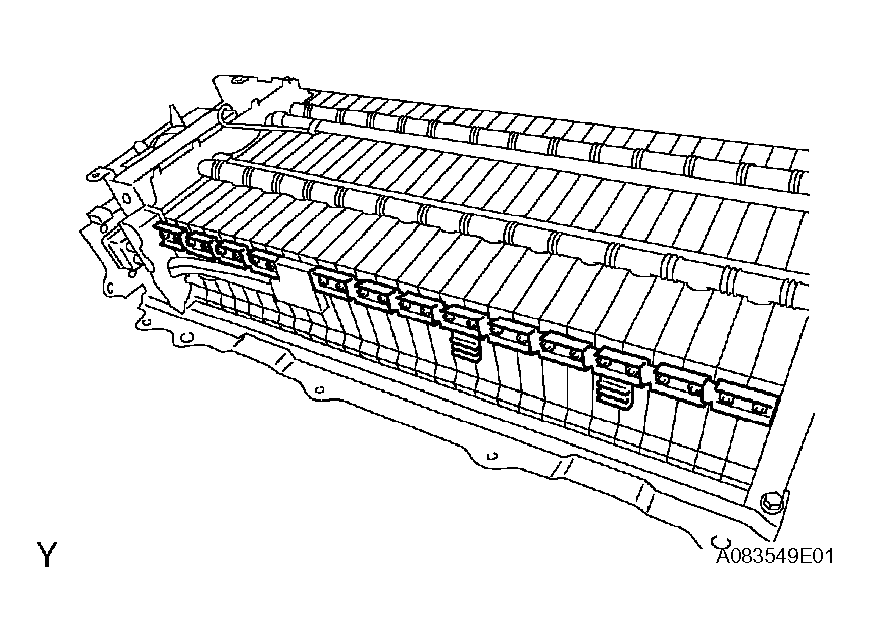

  Fig 1: Installing Junction Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.
INSTALL NO. 4 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.
INSTALL BATTERY COVER (See INSTALLATION )
INSTALL HV BATTERY ASSEMBLY
1. Install the HV battery to the vehicle (see INSTALLATION ).

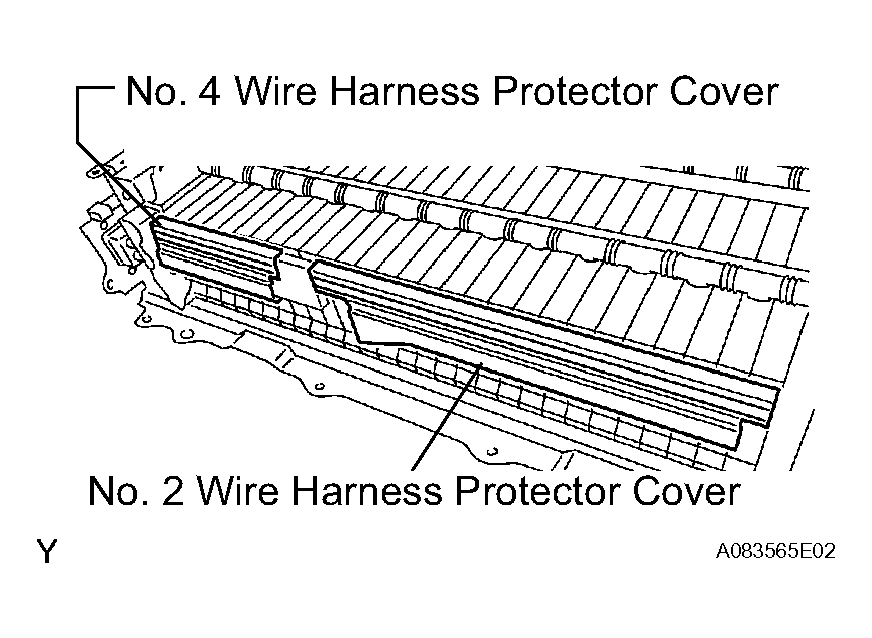

  Fig 2: Installing Wire Harness Protector Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SERVICE PLUG GRIP (See REMOVAL )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See INSTALLATION )
INSTALL REAR NO. 3 FLOOR BOARD (See INSTALLATION )
INSTALL REAR DECK FLOOR BOX (See INSTALLATION )
INSTALL REAR NO. 2 FLOOR BOARD (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
