Main Battery Cable: Components

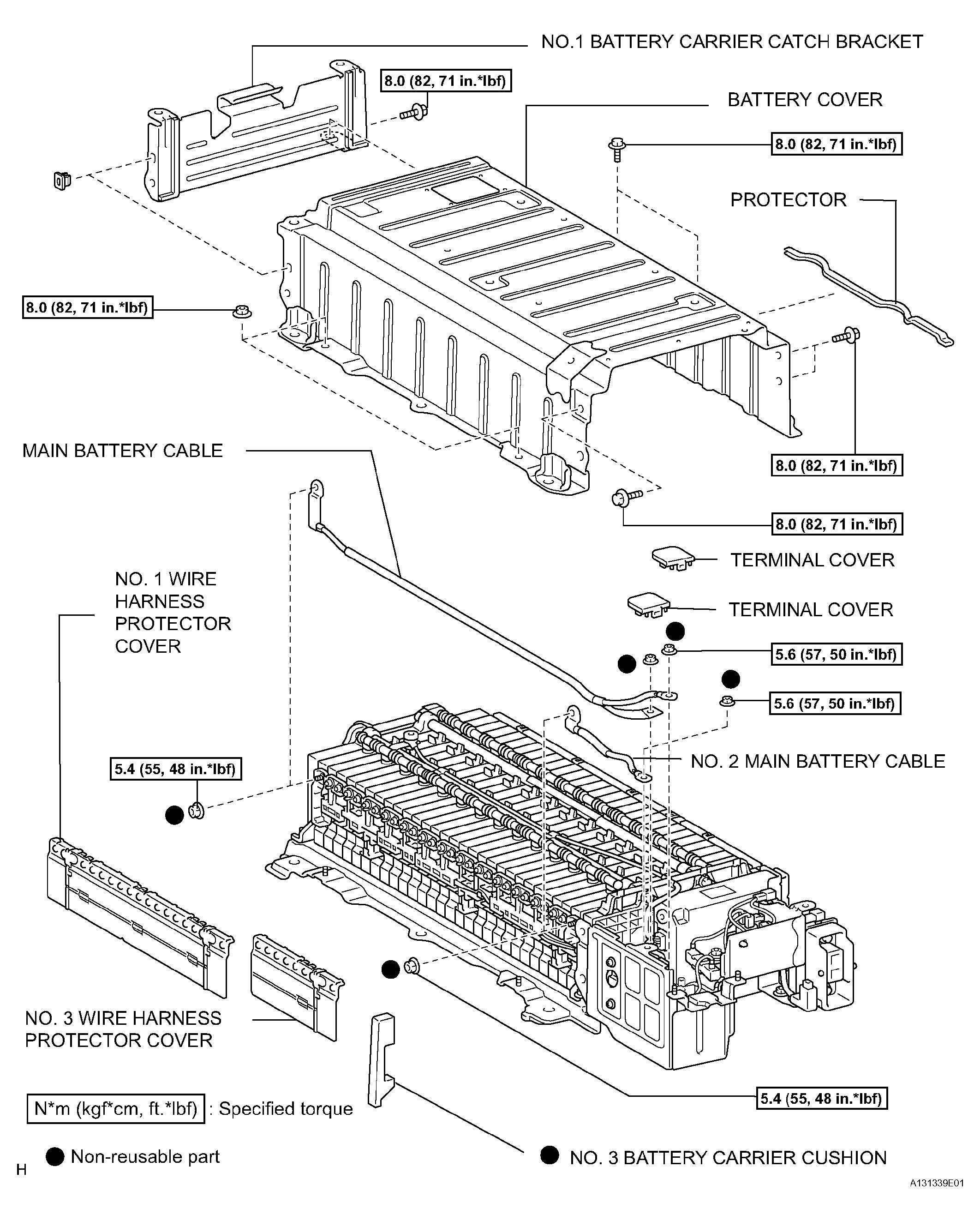

Fig 1: Identifying Main Battery Cable Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
