System Main Resistor: Removal

CAUTION:
  • When working on the high voltage systems, always wear insulating gloves.
  • Keep the removed service plug in your pocket to prevent other technicians from reconnecting it while you are servicing the vehicle.
  • After removing the service plug grip, do not touch the high voltage connectors and terminals for 5 minutes.
NOTE: After removing the service plug grip, do not operate the power switch as it may damage the hybrid vehicle control ECU.
  1. PRECAUTION
    CAUTION: The hybrid system uses high voltage circuits, so improper handling could cause an electric shock or leakage. During service (including installation/removal, inspection and replacement of parts), be sure to follow the procedures (see PRECAUTION  ).
  2. REMOVE REAR NO. 2 FLOOR BOARD (See  REMOVAL  )
  3. REMOVE REAR DECK FLOOR BOX (See  REMOVAL  )
  4. REMOVE REAR NO. 3 FLOOR BOARD (See  REMOVAL  )
  5. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  6. REMOVE SERVICE PLUG GRIP (See  REMOVAL   )
  7. REMOVE REAR DECK TRIM COVER (See  REMOVAL   )
  8. REMOVE TONNEAU COVER (See  DISASSEMBLY   )
  9. REMOVE REAR SEAT CUSHION ASSEMBLY (See  DISASSEMBLY   )
  10. REMOVE REAR NO. 1 FLOOR BOARD (See  DISASSEMBLY   )
  11. REMOVE REAR SIDE SEAT BACK FRAME LH (See  DISASSEMBLY   )
  12. REMOVE REAR NO. 4 FLOOR BOARD (See  DISASSEMBLY   )
  13. REMOVE DECK FLOOR BOX LH (See  DISASSEMBLY   )
  14. REMOVE DECK TRIM SIDE PANEL LH (See  DISASSEMBLY   )
  15. REMOVE BATTERY CARRIER BRACKET (See  DISASSEMBLY   )
  16. REMOVE NO. 6 BATTERY CARRIER PANEL (See  DISASSEMBLY   )
  17. REMOVE JUNCTION TERMINAL (See  REMOVAL   )
  18. DISCONNECT FRAME WIRE
    CAUTION:
    • Wear insulating gloves.
    • Insulate the removed terminals with insulating tape.
    1. Remove the nut, then disconnect the frame wire from the No. 2 system main relay.

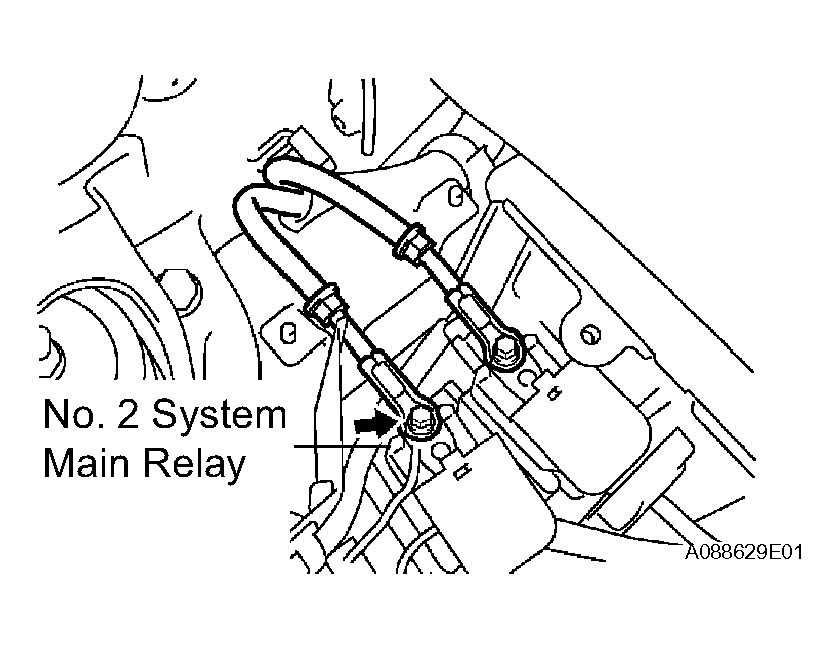

      Fig 1: Disconnecting Frame Wire From No 2 System Main Relay
      G04473983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE SYSTEM MAIN RESISTOR
    CAUTION: Wear insulating gloves.
    1. Disconnect the connector from the No. 1 system main relay.
    2. Remove the bolt and system main resistor.

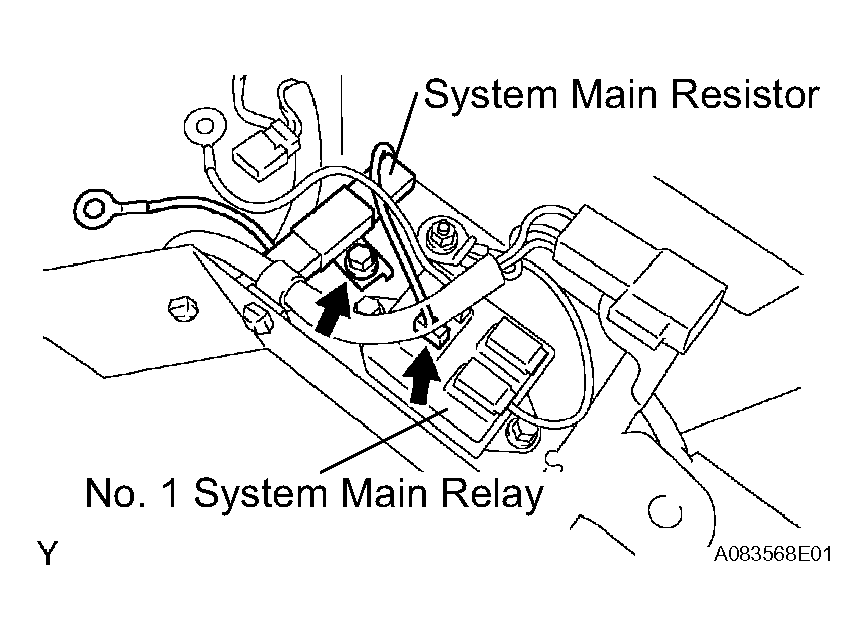

      Fig 2: Removing System Main Resistor
      G04473984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
