Oil Pump Drive Shaft: Components

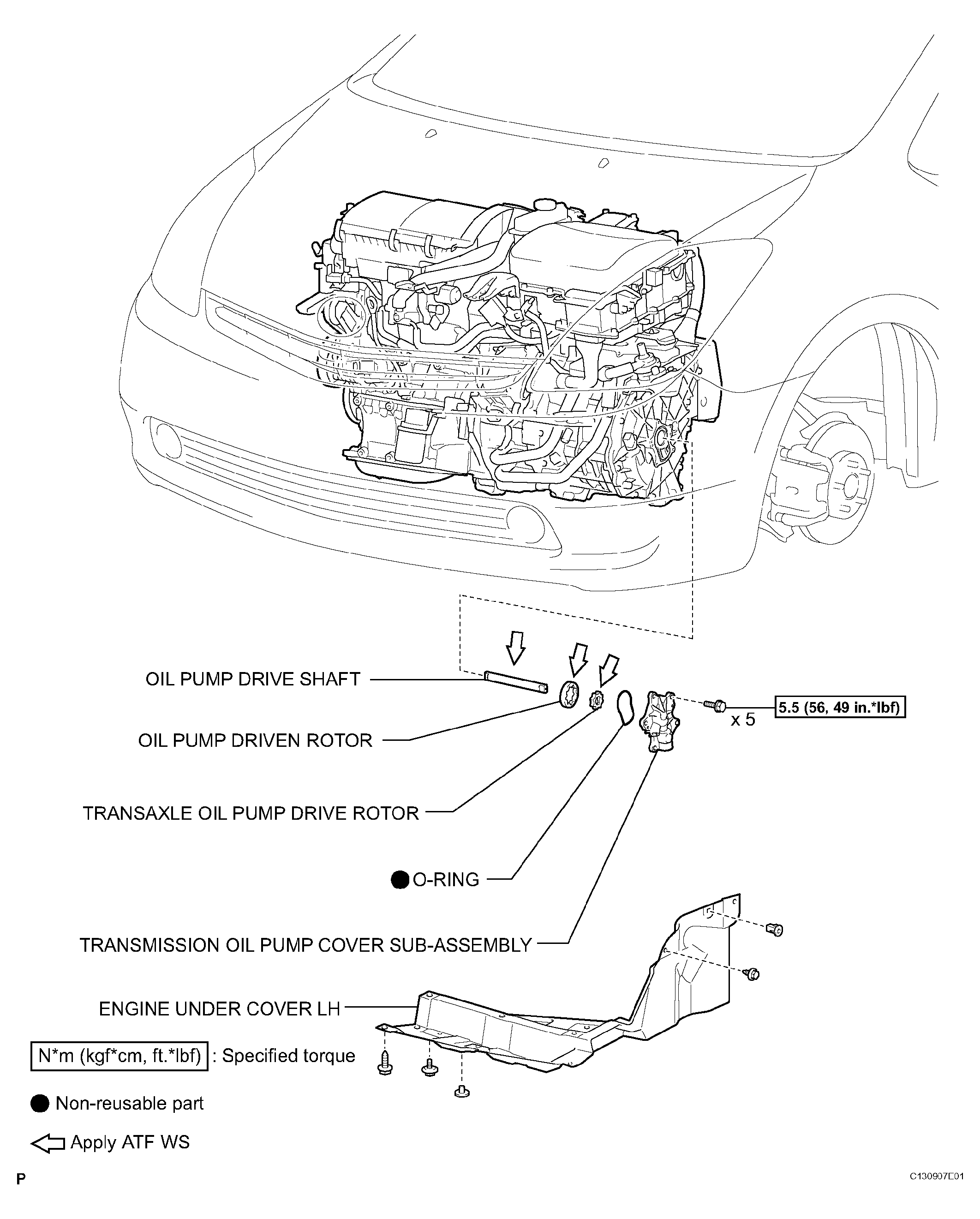

Fig 1: Oil Pump Drive Shaft Replacement Components With Torque Specifications
G04474306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
