Shift Lever: Removal

  1. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY (see  REMOVAL  )
  2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY (See  REMOVAL  )
  4. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See  REMOVAL  )
  5. REMOVE SHIFT LEVER ASSEMBLY
    1. Remove the 3 bolts.
    2. Disconnect the 2 connectors and remove the shift lever.

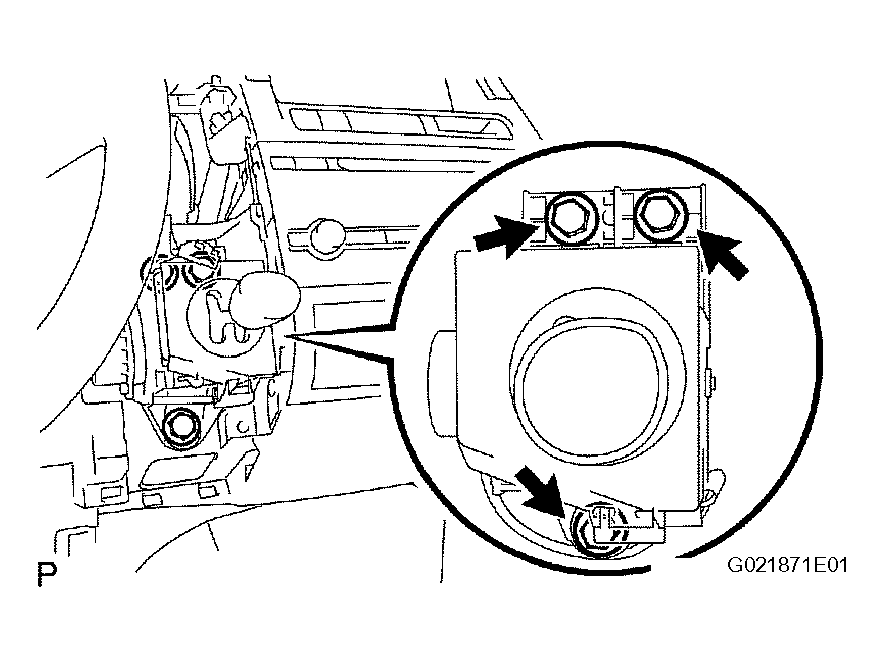

      Fig 1: Removing Shift Lever Assembly
      G04474298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
