Transmission Drive Sprocket: Components

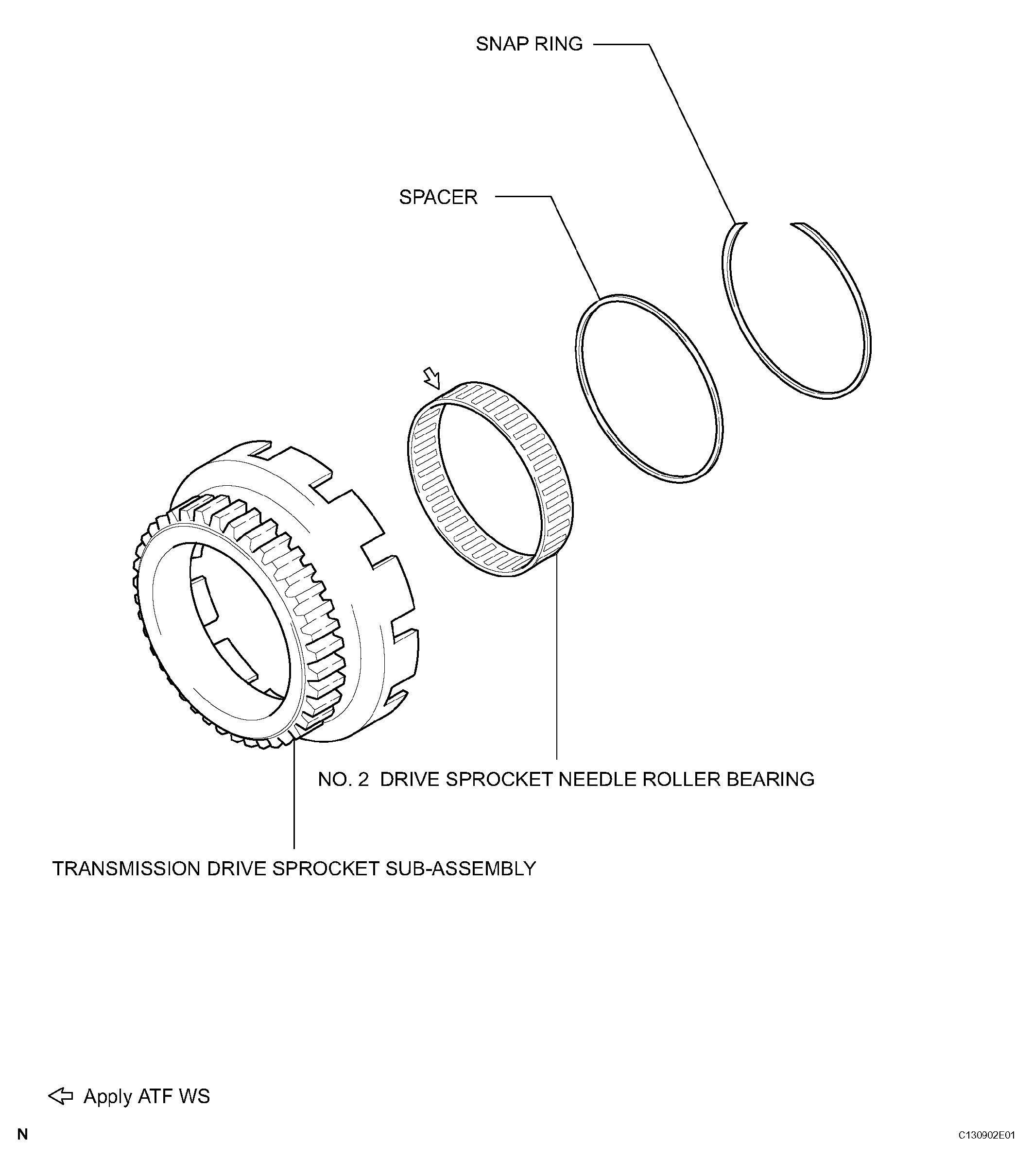

Fig 1: Identifying Transmission Drive Sprocket Components
G04474269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
