Front Passenger Side Power Window Switch: Inspection
- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY

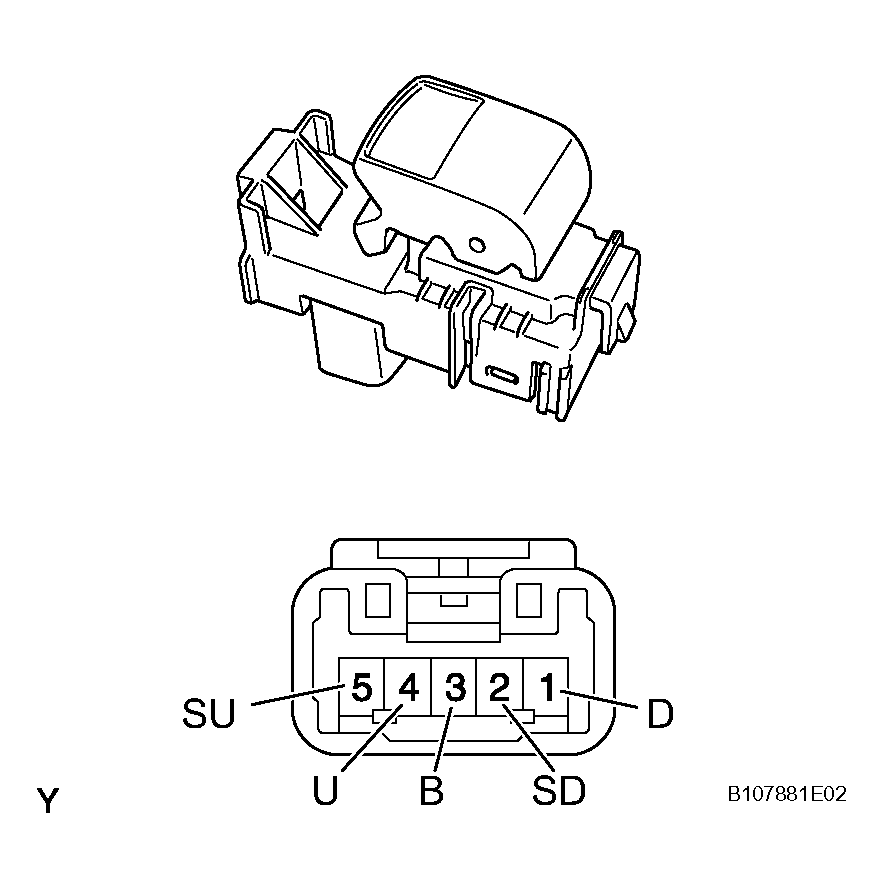

- Measure the resistance of the switch when the switch is operated.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester Connection Switch Condition Specified Condition 1 (D) - 2 (SD)
3 (B) - 4 (U)UP Below 1 Ω 4 (U) - 5 (SU)
1 (D) - 2 (SD)OFF Below 1 Ω 1 (D) - 3 (B)
4 (U) - 5 (SU)DOWN Below 1 Ω If the result is not as specified, replace the regulator switch assembly.
