Diagnosis System

1. The driver side power window regulator motor (power window ECU) controls the power window control system functions on the vehicle. Power window control system data can be read through the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the intelligent tester (with CAN VIM) to check for malfunctions and perform repairs.
   Fig 1: Connecting Intelligent Tester To DLC3

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Connect the cable of the intelligent tester to the DLC3, turn the ignition switch ON and attempt to use the tester. If the display indicates that a communication error has occurred, there is a problem either with the vehicle or with the tester. If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle. If communication is still not possible when the tester is connected to another vehicle, the problem may be in the tester itself. Consult the Service Department listed in the tester's instruction manual.

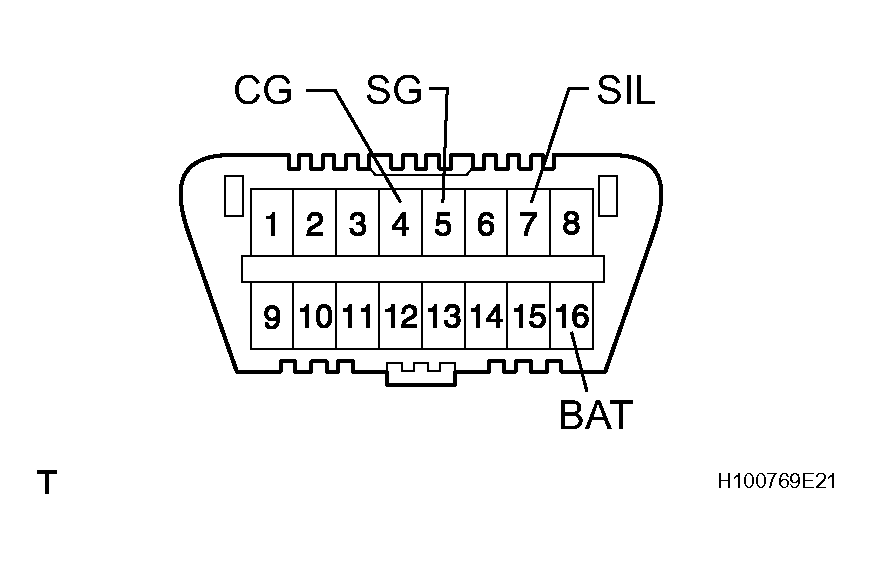

Fig 2: Identifying DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
