Driver Side Power Window does not Operate with Power Window Master Switch: Wiring Diagram

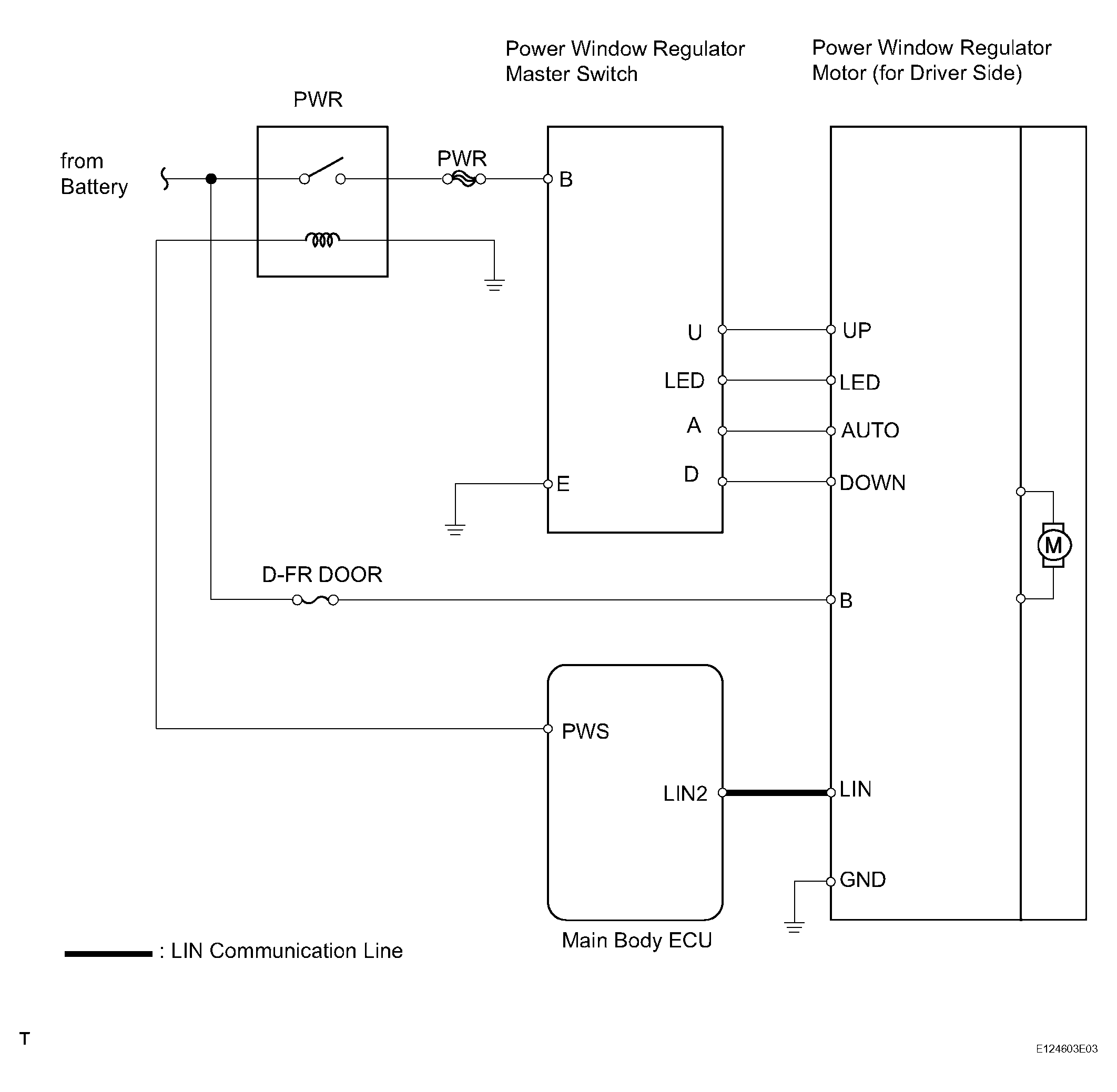

Fig 1: Power Window Regulator Motor - Wiring Diagram
G04491385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
