Key-off Operation Function Operates even if Operating Conditions are not Satisfied: Wiring Diagram

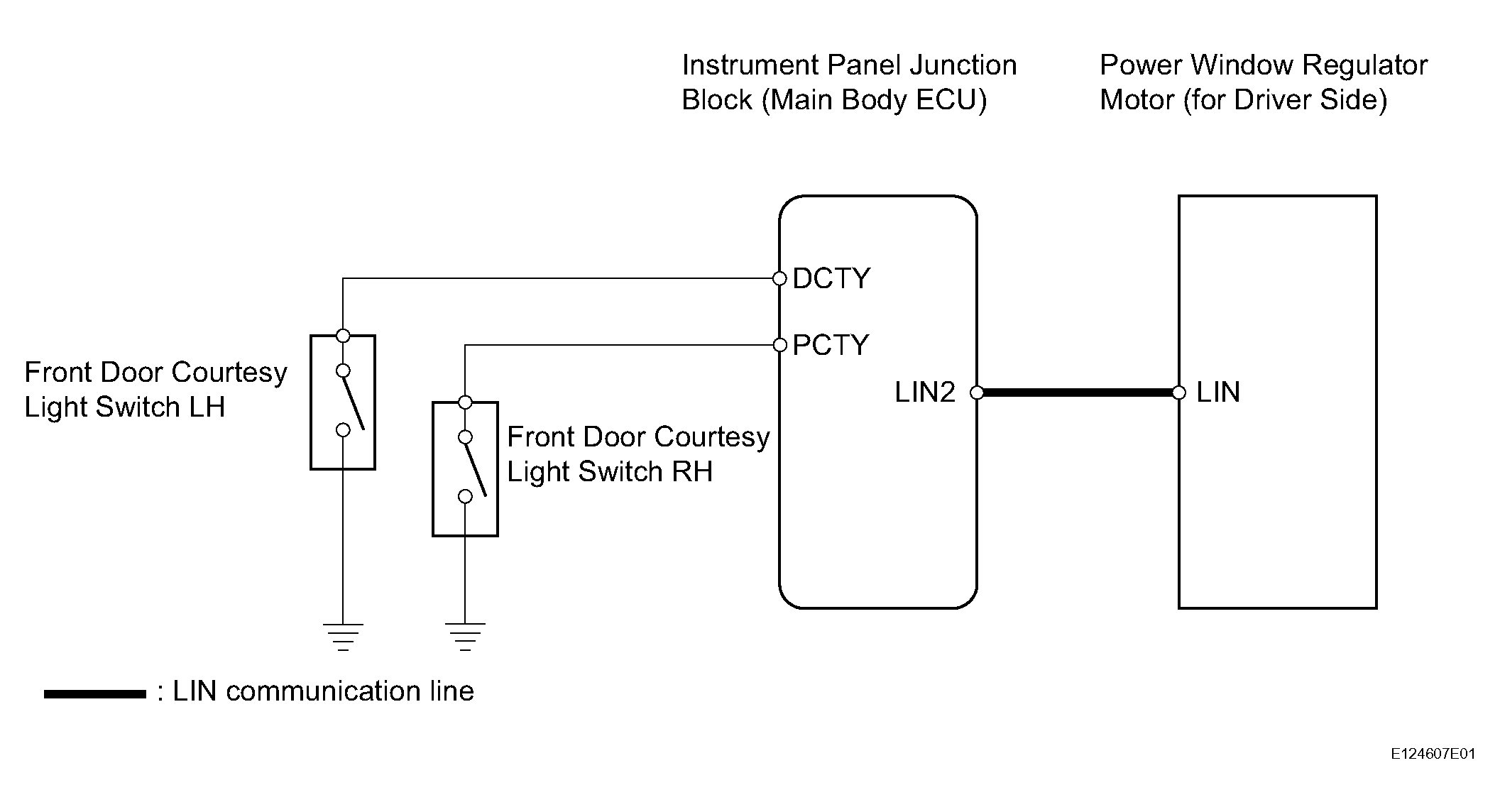

Fig 1: Key-Off Operation Function - Wiring Diagram
G04491409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
