Parts Location

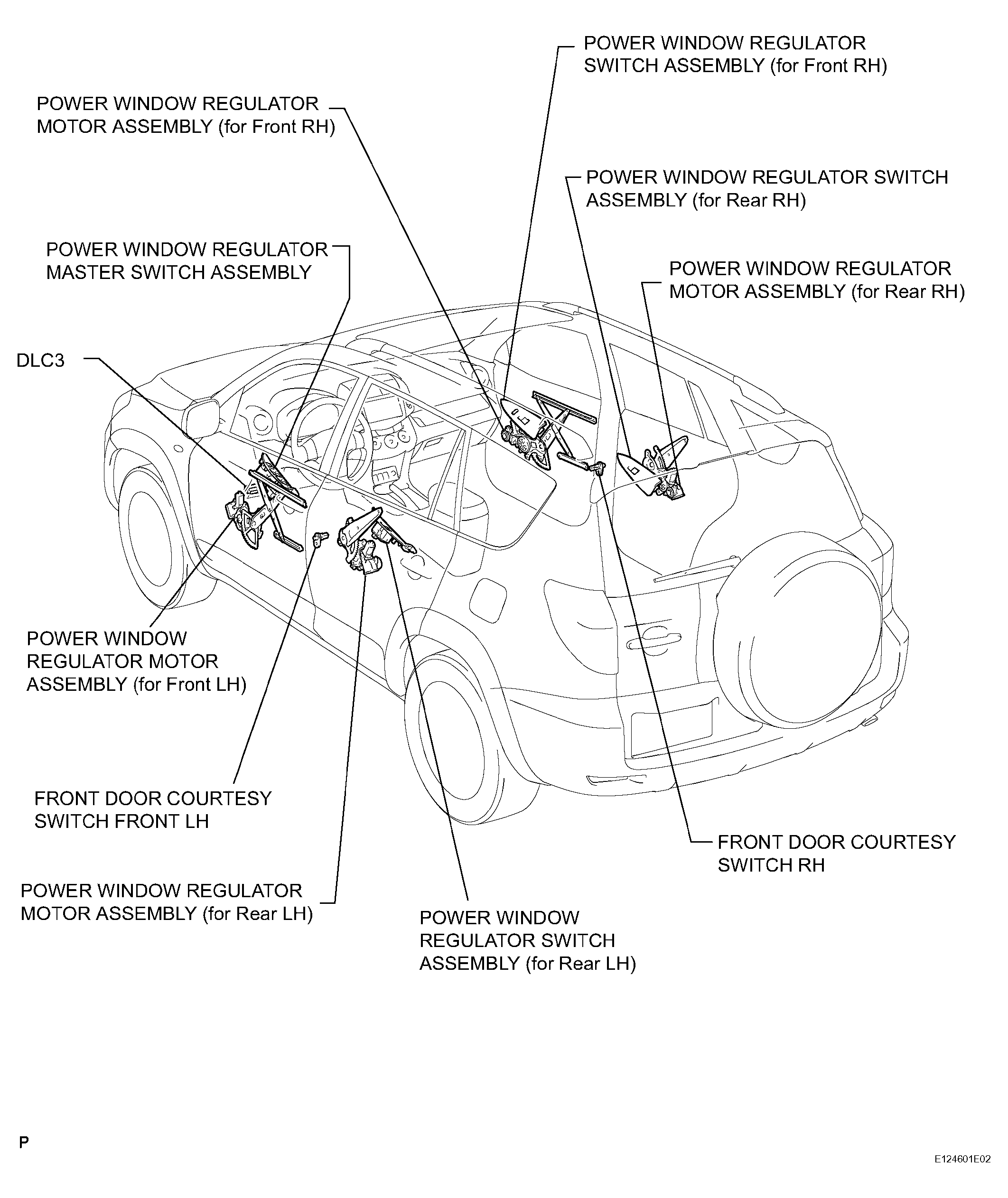

Fig 1: Identifying Location Of Power Window Control System Components (1 Of 2)
G04491365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

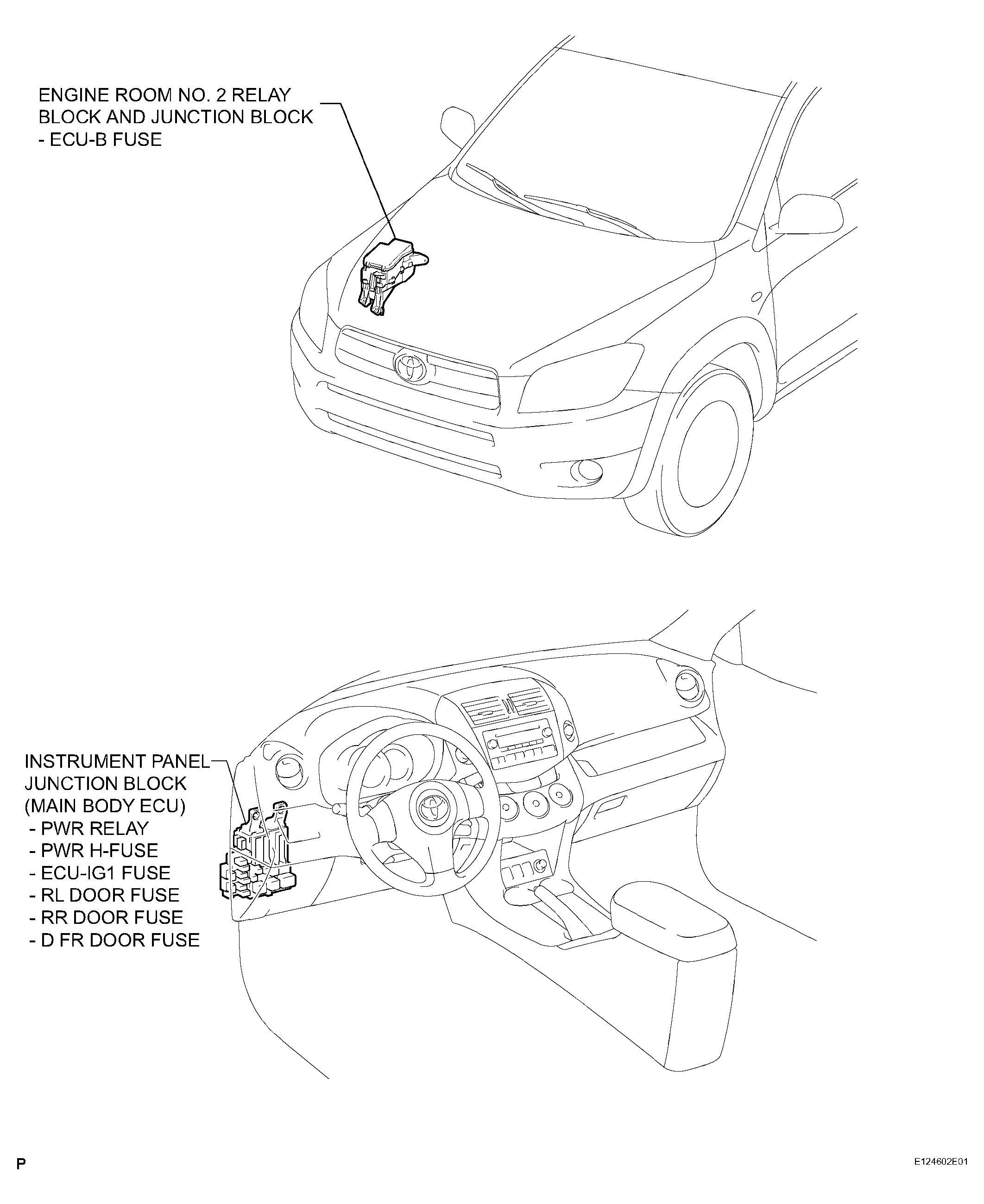

Fig 2: Identifying Location Of Power Window Control System Components (2 Of 2)
G04491366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
