Inspection Procedure

INSPECT FUSE (RL DOOR)
1. Remove the RL DOOR fuse from the instrument panel junction block.
2. Measure the resistance of the fuse.
  Standard resistance:

  Below 1 Ω
NG: REPLACE FUSE (RL DOOR)

OK: Go TO NEXT STEP.

CHECK POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH) (POWER SOURCE)

Disconnect the J1 switch connector.

Measure the voltage of the wire harness side connector.

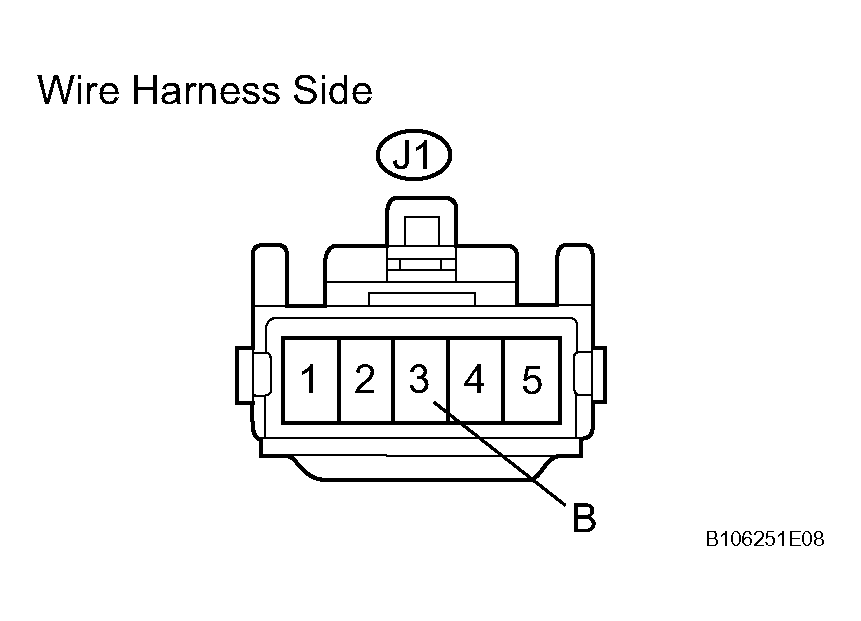

Fig 1: Identifying J1 Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
J1-3 (B) - Body ground	Ignition switch ON	10 to 14 V

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go TO NEXT STEP.

INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH)

Remove the power window regulator switch.

Measure the resistance of the switch when the switch is operated.

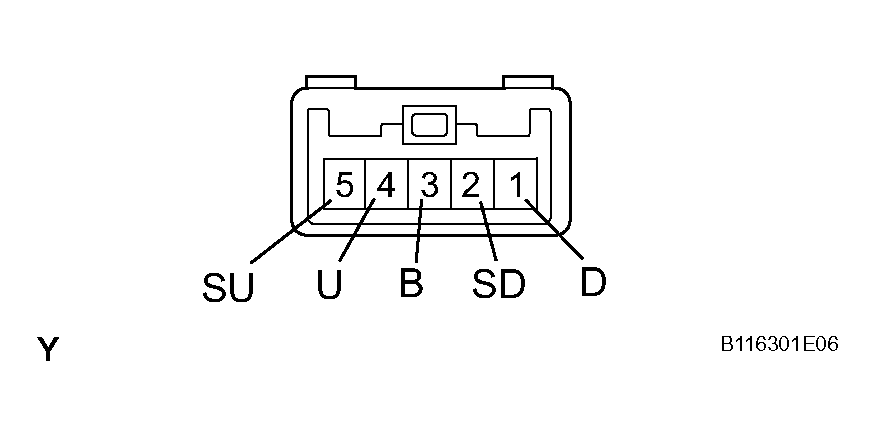

Fig 2: Identifying Power Window Regulator Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Switch Condition	Specified Condition
1 (D) - 2 (SD) 3 (B) - 4 (U)	UP	Below 1 Ω
4 (U) - 5 (SU) 1 (D) - 2 (SD)	OFF	Below 1 Ω
1 (D) - 3 (B) 4 (U) - 5 (SU)	DOWN	Below 1 Ω

NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH)

OK: Go TO NEXT STEP.

CHECK WIRE HARNESS (REGULATOR SWITCH - REGULATOR MOTOR)

Disconnect the J1 switch connector.
Disconnect the J3 motor connector.

Measure the resistance of the wire harness side connectors.

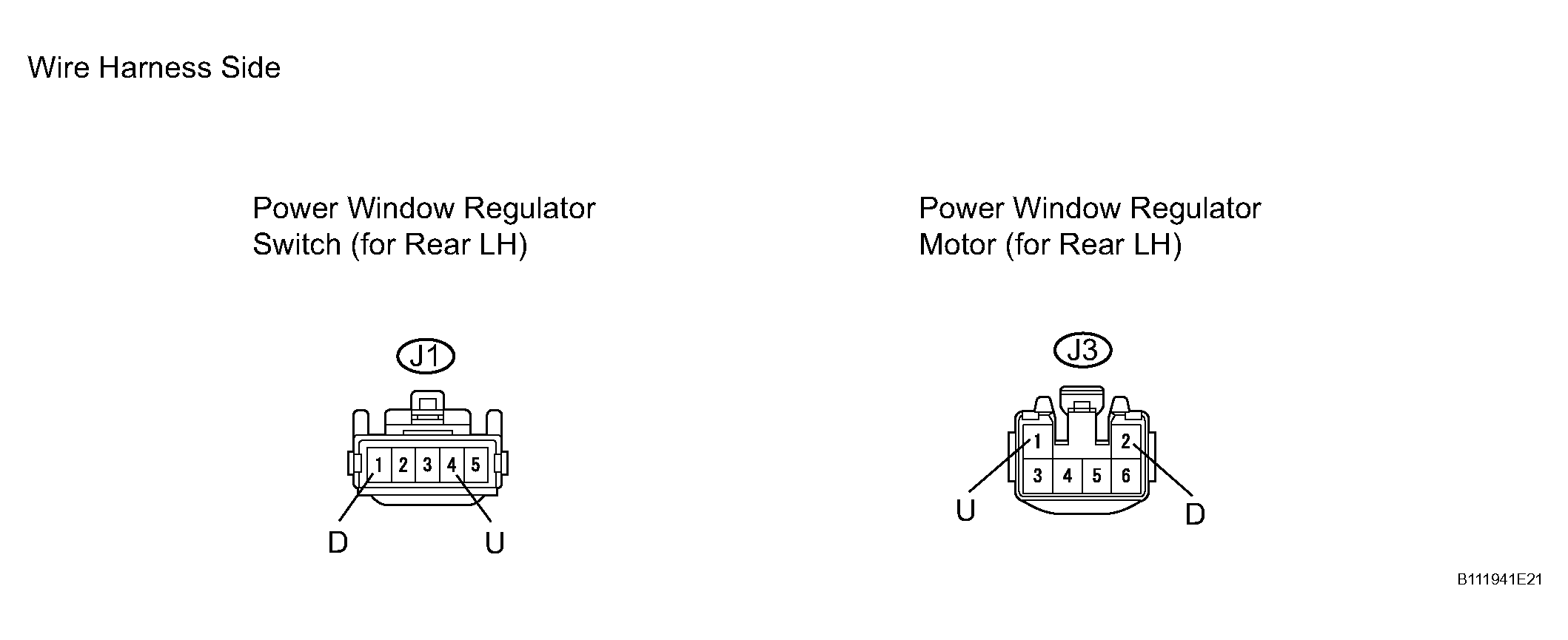

Fig 3: Identifying J1 Regulator Switch - Regulator J3 Motor Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
J1-4 (U) - J3-1 (U)	Below 1 Ω
J1-1 (D) - J3-2 (D)	Below 1 Ω
J1-4 (U) or J3-1 (U) - Body ground	10 kΩ or higher
J1-1 (D) or J3-2 (D) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go TO NEXT STEP.

INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH)

Remove the power window regulator motor.
Apply the battery voltage to connector terminals 1 and 2.

Check that the motor gear rotates smoothly as follows.

OK: Go TO NEXT STEP.

MEASUREMENT SPECIFIED CONDITION

Measurement Condition	Specified Condition
Battery positive (+) --> 1 Battery negative (-) --> 2	Motor gear rotates clockwise
Battery positive (+) --> 2 Battery negative (-) --> 1	Motor gear rotates counterclockwise

NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear LH)

OK: Go TO NEXT STEP.

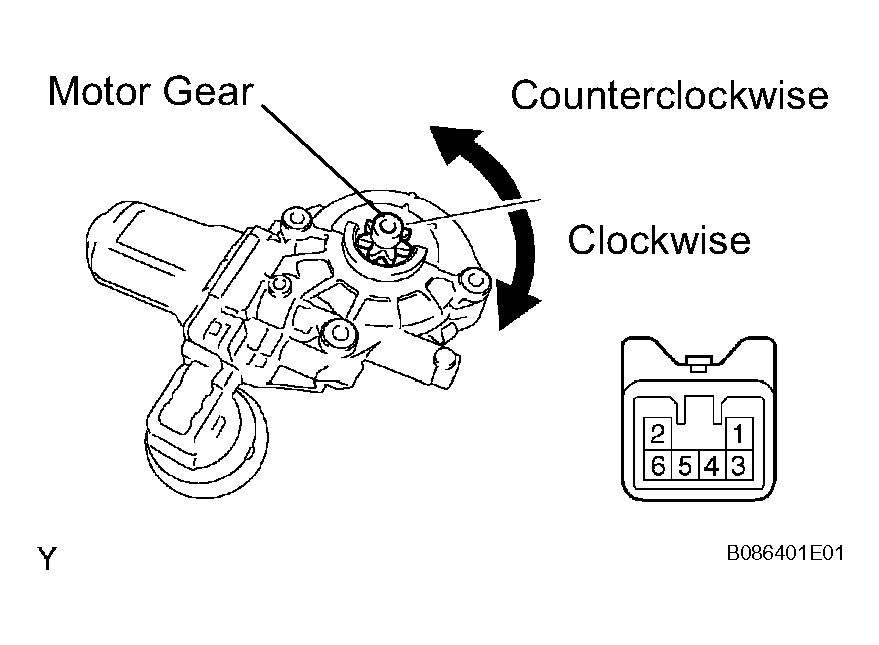

Fig 4: Checking Motor Gear Rotates Smoothly

CHECK WIRE HARNESS (REGULATOR MASTER SWITCH - REGULATOR SWITCH)

Disconnect the H2 switch connector.
Disconnect the J1 switch connector.

Measure the resistance of the wire harness side connectors.

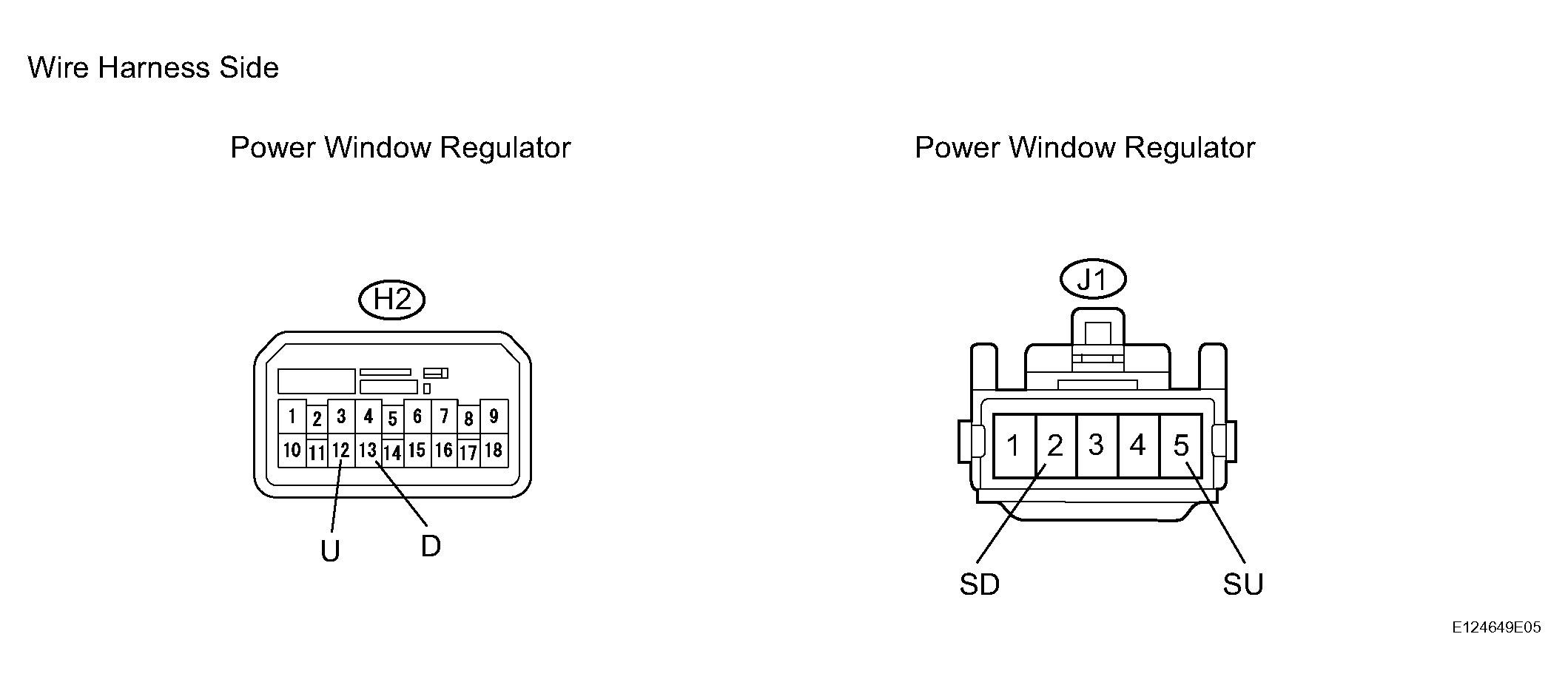

Fig 5: Identifying H2 Switch - J1 Switch Connector Terminals

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
H2-12 (U) - J1-5 (SU)	Below 1 Ω
H2-13 (D) - J1-2 (SD)	Below 1 Ω
H2-12 (U) or J1-5 (SU) - Body ground	10 kΩ or higher
H2-13 (D) or J1-2 (SD) - Body ground	10 kΩ or higher

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
