Remote Up / Down Function does not Operate: Wiring Diagram

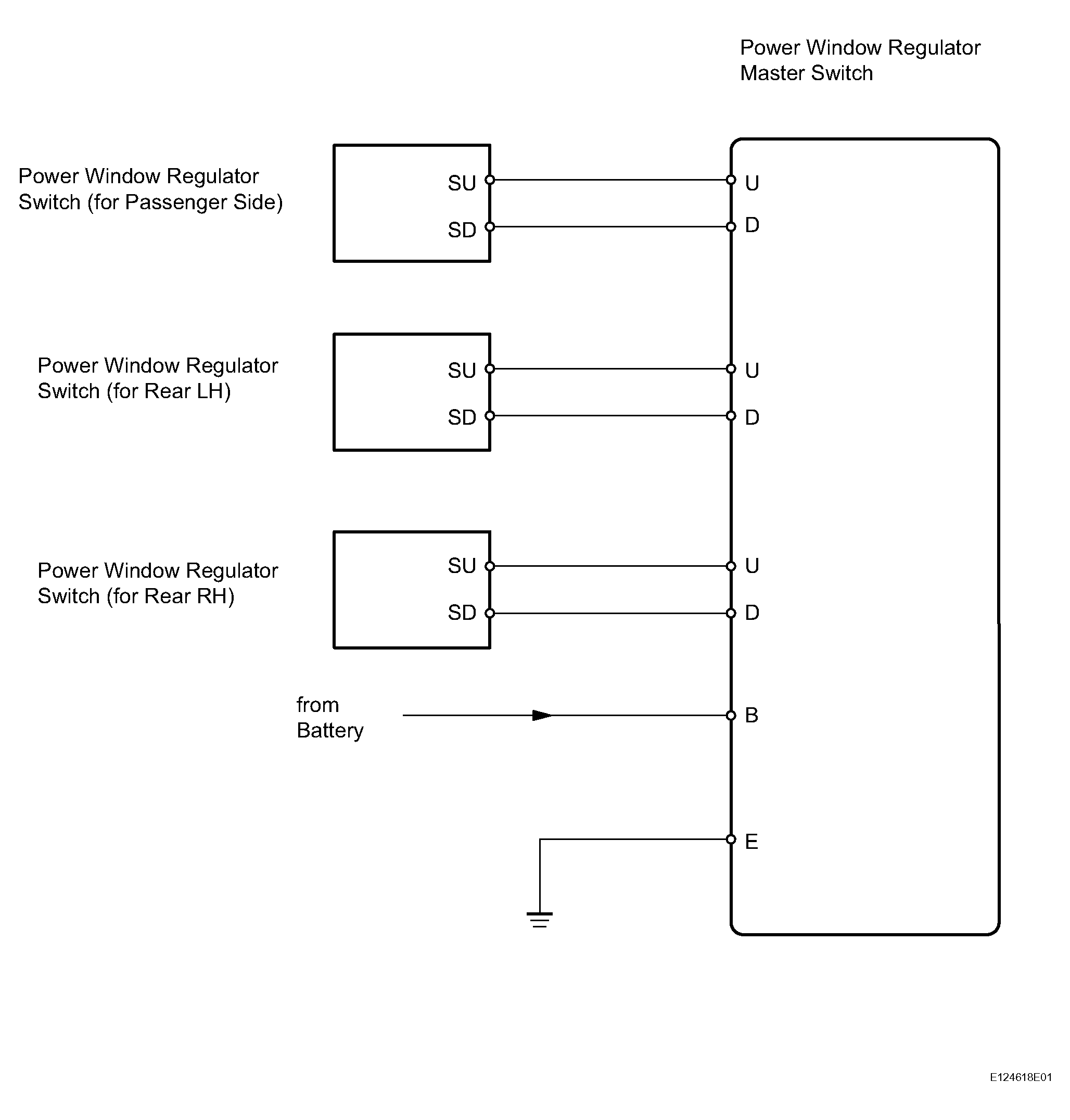

Fig 1: Power Window Regulator Master Switch - Wiring Diagram
G04491383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
