Power Window Master Switch: Inspection

INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

Measure the resistance of the power switch.

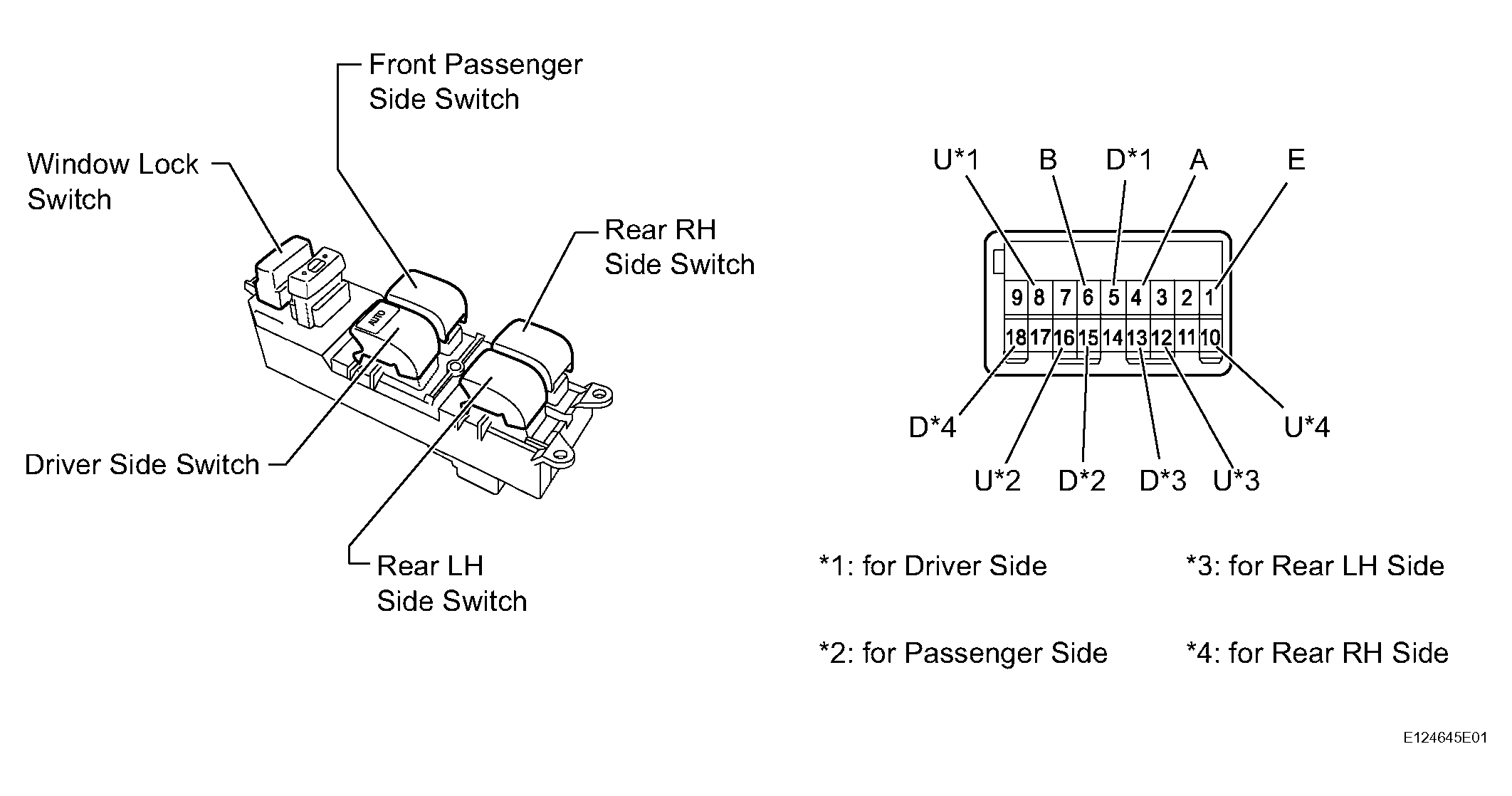

Fig 1: Identifying Power Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance:

for Front passenger switch

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Window Lock Switch Condition	Power Window Switch Condition	Specified Condition
H2-1 (E) - H2-15 (D) H2-6 (B) - H2-16 (U)	OFF	UP	Below 1 Ω
H2-1 (E) - H2-16 (U) H2-1 (E) - H2-15 (D)	OFF	OFF	Below 1 Ω
H2-1 (E) - H2-16 (U) H2-6 (B) - H2-15 (D)	OFF	DOWN	Below 1 Ω
H2-1 (E) - H2-15 (D)	ON	UP	10 kΩ or higher
H2-6 (B) - H2-16 (U)	ON	UP	Below 1 Ω
H2-16 (U) - H2-15 (D)	ON	OFF	Below 1 Ω
H2-1 (E) - H2-16 (U)	ON	DOWN	10 kΩ or higher
H2-6 (B) - H2-15 (D)	ON	DOWN	Below 1 Ω

for Rear LH switch

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Window Lock Switch Condition	Power Window Switch Condition	Specified Condition
H2-1 (E) - H2-13 (D) H2-6 (B) - H2-12 (U)	OFF	UP	Below 1 Ω
H2-1 (E) - H2-12 (U) H2-1 (E) - H2-13 (D)	OFF	OFF	Below 1 Ω
H2-1 (E) - H2-12 (U) H2-6 (B) - H2-13 (D)	OFF	DOWN	Below 1 Ω
H2-1 (E) - H2-13 (D)	ON	UP	10 kΩ or higher
H2-6 (B) - H2-12 (U)	ON	UP	Below 1 Ω
H2-12 (U) - H2-13 (D)	ON	OFF	Below 1 Ω
H2-1 (E) - H2-12 (U)	ON	DOWN	10 kΩ or higher
H2-6 (B) - H2-13 (D)	ON	DOWN	Below 1 Ω

for Rear RH switch

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Window Lock Switch Condition	Power Window Switch Condition	Specified Condition
H2-1 (E) - H2-18 (D) H2-6 (B) - H2-10 (U)	OFF	UP	Below 1 Ω
H2-1 (E) - H2-10 (U) H2-1 (E) - H2-18 (D)	OFF	OFF	Below 1 Ω
H2-1 (E) - H2-10 (U) H2-6 (B) - H2-18 (D)	OFF	DOWN	Below 1 Ω
H2-1 (E) - H2-18 (D)	ON	UP	10 kΩ or higher
H2-6 (B) - H2-10 (U)	ON	UP	Below 1 Ω
H2-10 (U) - H2-18 (D)	ON	OFF	Below 1 Ω
H2-1 (E) - H2-10 (U)	ON	DOWN	10 kΩ or higher
H2-6 (B) - H2-18 (D)	ON	DOWN	Below 1 Ω

If the result is not as specified, replace the switch assembly.

Apply battery voltage to the master switch and check that the AUTO light illuminates.

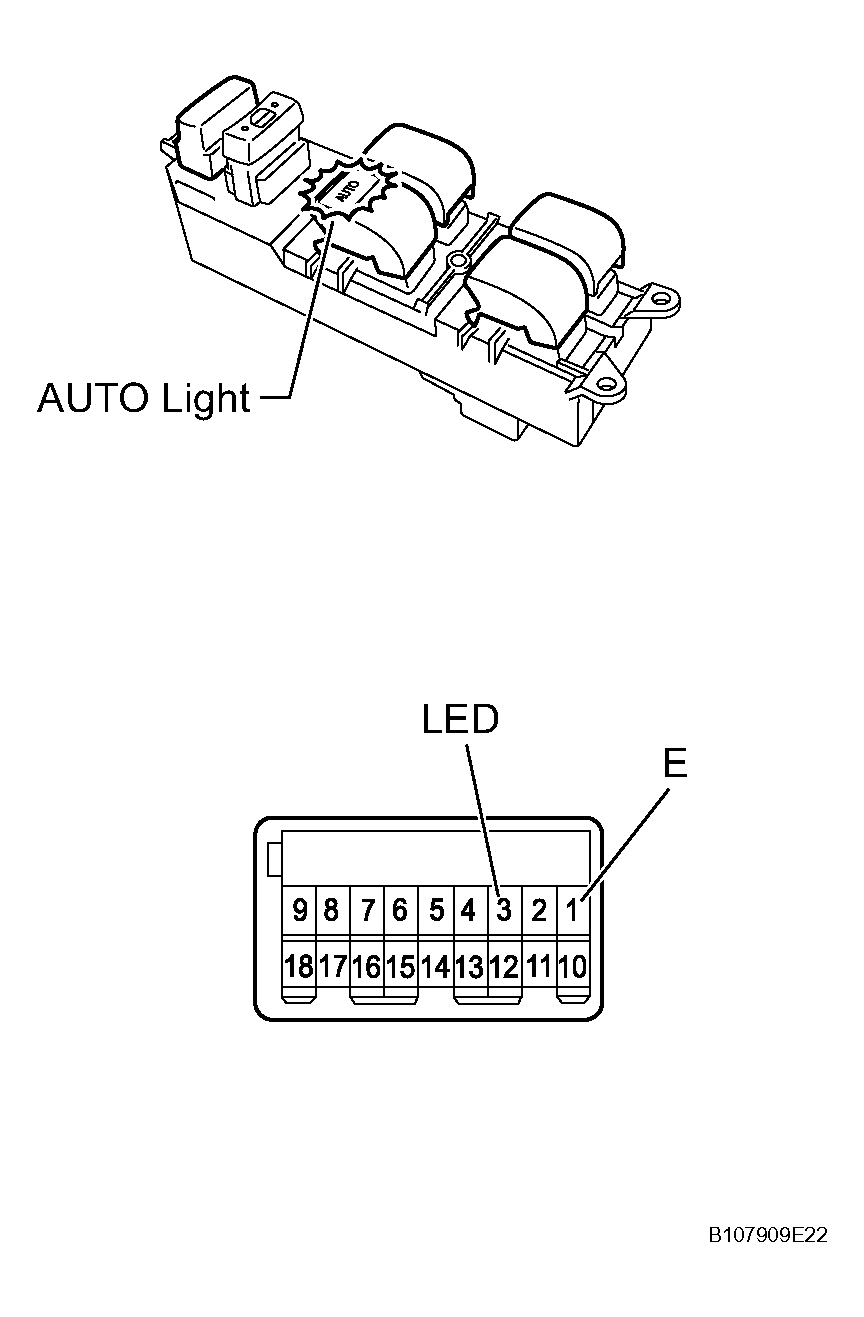

Fig 2: Identifying Master Switch Auto Light Connector Terminals

OK: Go TO NEXT STEP.

MEASUREMENT SPECIFIED CONDITION

Measurement Condition	Specified Condition
Battery positive (+) --> Terminal 3 (LED) Battery negative (-) --> Terminal 1 (E)	AUTO light illuminates

If the result is not as specified, replace the switch assembly.
