Power Window Regulator Motor: Inspection

1. Apply battery voltage to connector terminals 1 and 2.
   NOTE:

   • Do not apply voltage to any terminals except terminals 1 and 2, to avoid damaging the pulse sensor inside the motor.
   • Reset the power window regulator motor (initialize the pulse sensor) after installing the power window regulator motor and regulator assembly onto the door.

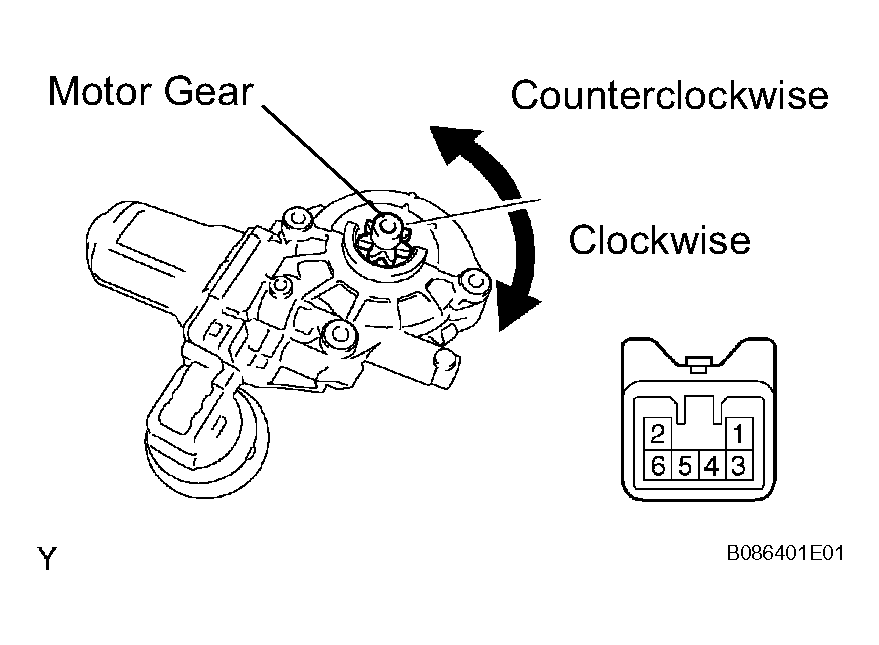

   Fig 1: Inspecting Power Window Regulator Motor Assembly (For Driver Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check that the motor gear rotates smoothly as follows.

   OK: Go TO NEXT STEP.

   MEASUREMENT SPECIFIED CONDITION



   Measurement Condition	Specified Condition
   Battery positive (+) --> Terminal 2 Battery negative (-) --> Terminal 1 and 10	Motor gear rotates clockwise
   Battery positive (+) --> Terminal 2 Battery negative (-) --> Terminal 1 and 7	Motor gear rotates counterclockwise

   If the result is not as specified, replace the regulator motor assembly.

1. Apply battery voltage to connector terminals 1 and 2.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
2. Check that the motor gear rotates smoothly as follows.

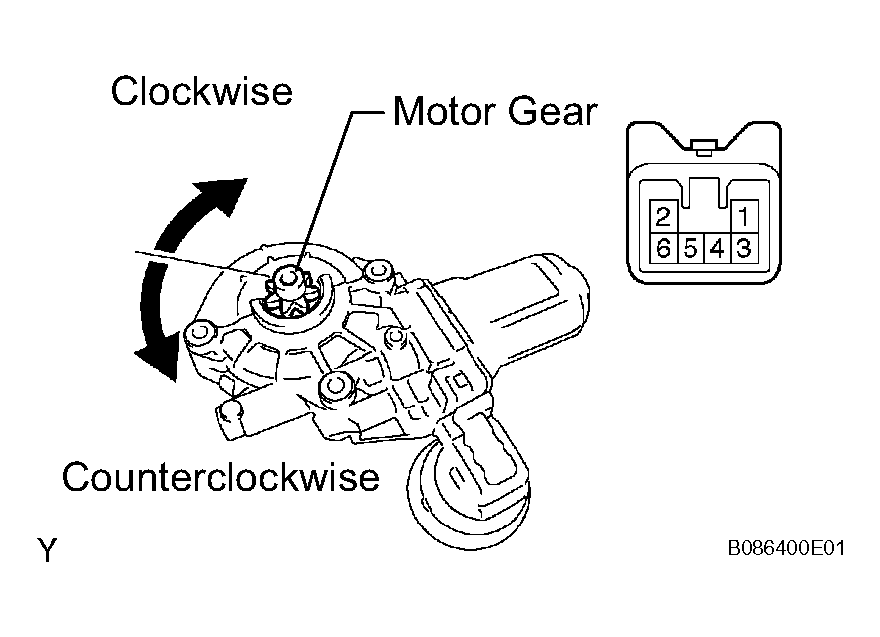

   Fig 2: Inspecting Power Window Regulator Motor Assembly (For Passenger Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go TO NEXT STEP.

If the result is not as specified, replace the regulator motor assembly.

1. Apply battery voltage to connector terminals 1 and 2.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
2. Check that the motor gear rotates smoothly as follows.

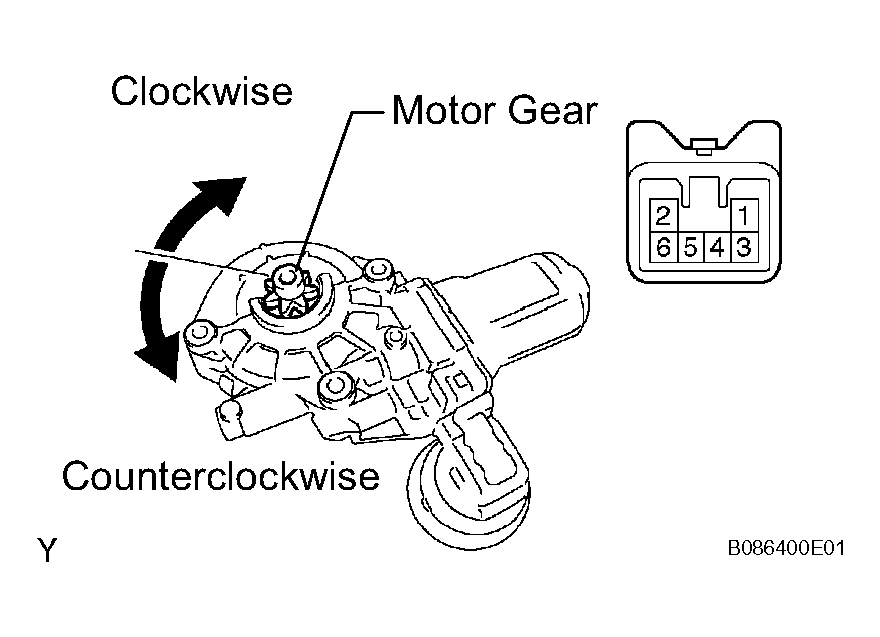

   Fig 3: Inspecting Power Window Regulator Motor Assembly (For Rear LH Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go TO NEXT STEP.

If the result is not as specified, replace the regulator motor assembly.

1. Apply battery voltage to connector terminals 1 and 2.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
2. Check that the motor gear rotates smoothly as follows.
   Fig 4: Inspecting Power Window Regulator Motor Assembly (For Rear RH Side)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go TO NEXT STEP.

If the result is not as specified, replace the regulator motor assembly.
