Windshield Glass: Installation

  1. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Apply Primer G to the glass where the spacers will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install 2 new spacers onto the glass as shown in the illustration.

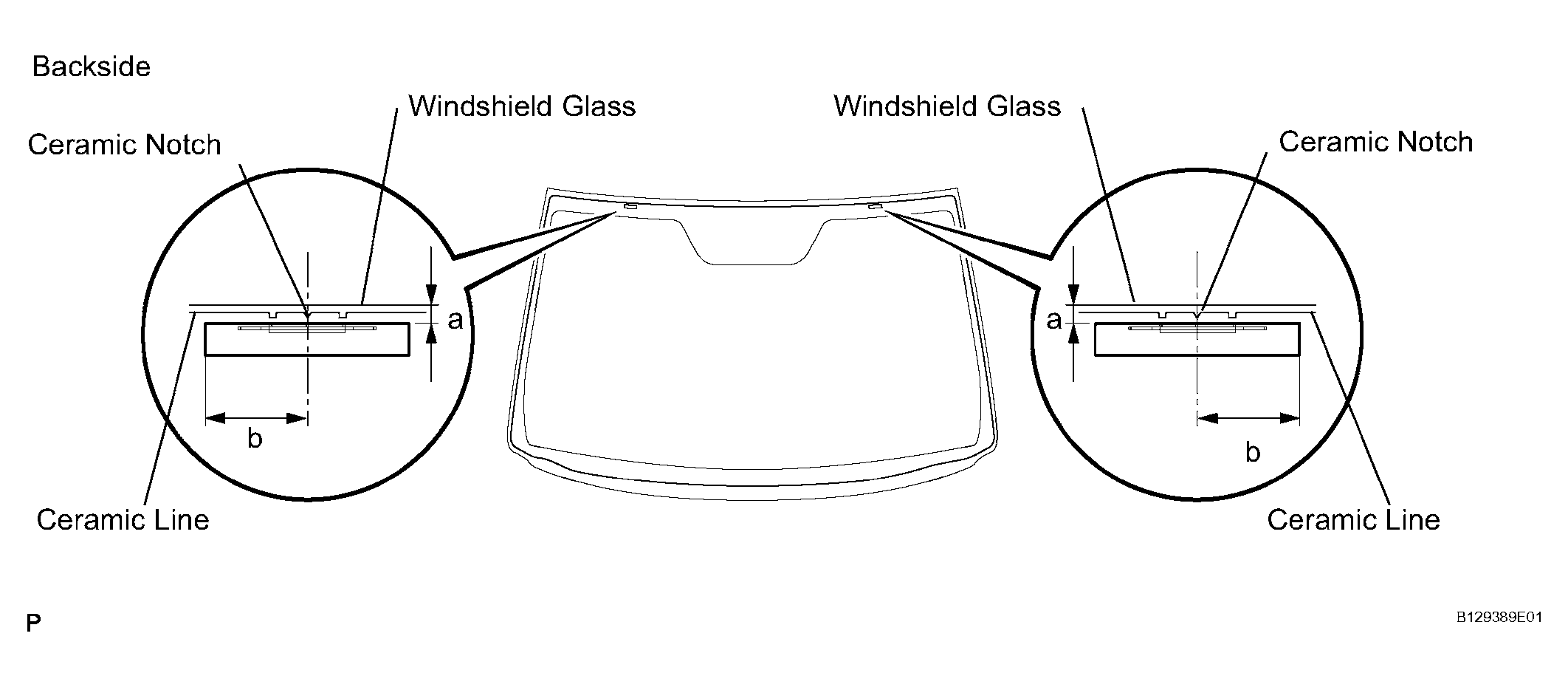

      Fig 1: Identifying Windshield Glass Stopper Dimension
      G04491433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard measurement

      WINDSHIELD AREA SPECIFIED CONDITION

      Area Specified Condition
      a 7.7 mm (0.303 in.)
      b 40.0 mm (1.575 in.)
  2. INSTALL NO. 1 WINDSHIELD GLASS STOPPER
    1. Install 2 new stoppers to the vehicle body as shown in the illustration.

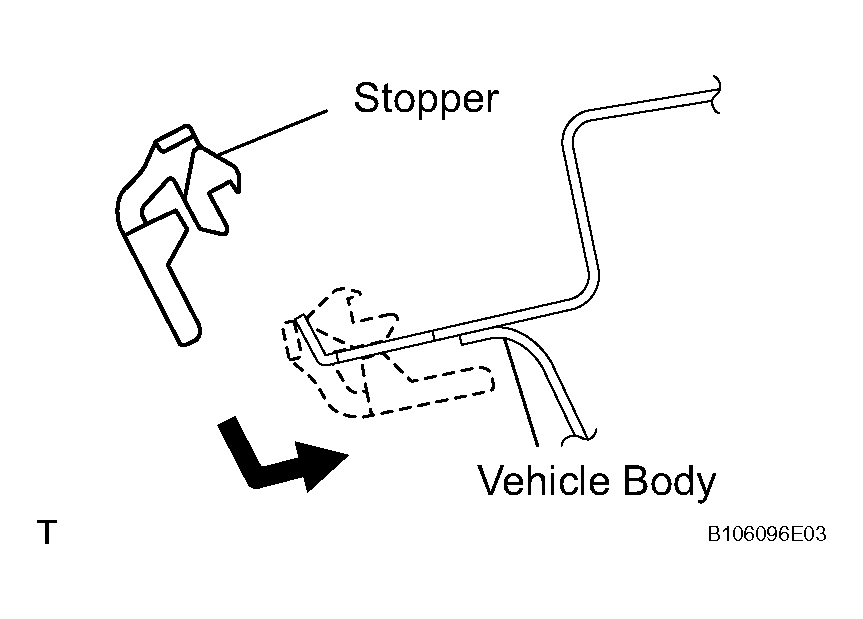

      Fig 2: Installing Stoppers To Vehicle Body
      G04491434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Apply Primer G to the glass where the glass adhesive dams will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Remove the peeling paper from the adhesive part of the dam. Install the dam (adhesive side) to the glass (Primer G area), but exclude the spacer area A as shown in the illustration.

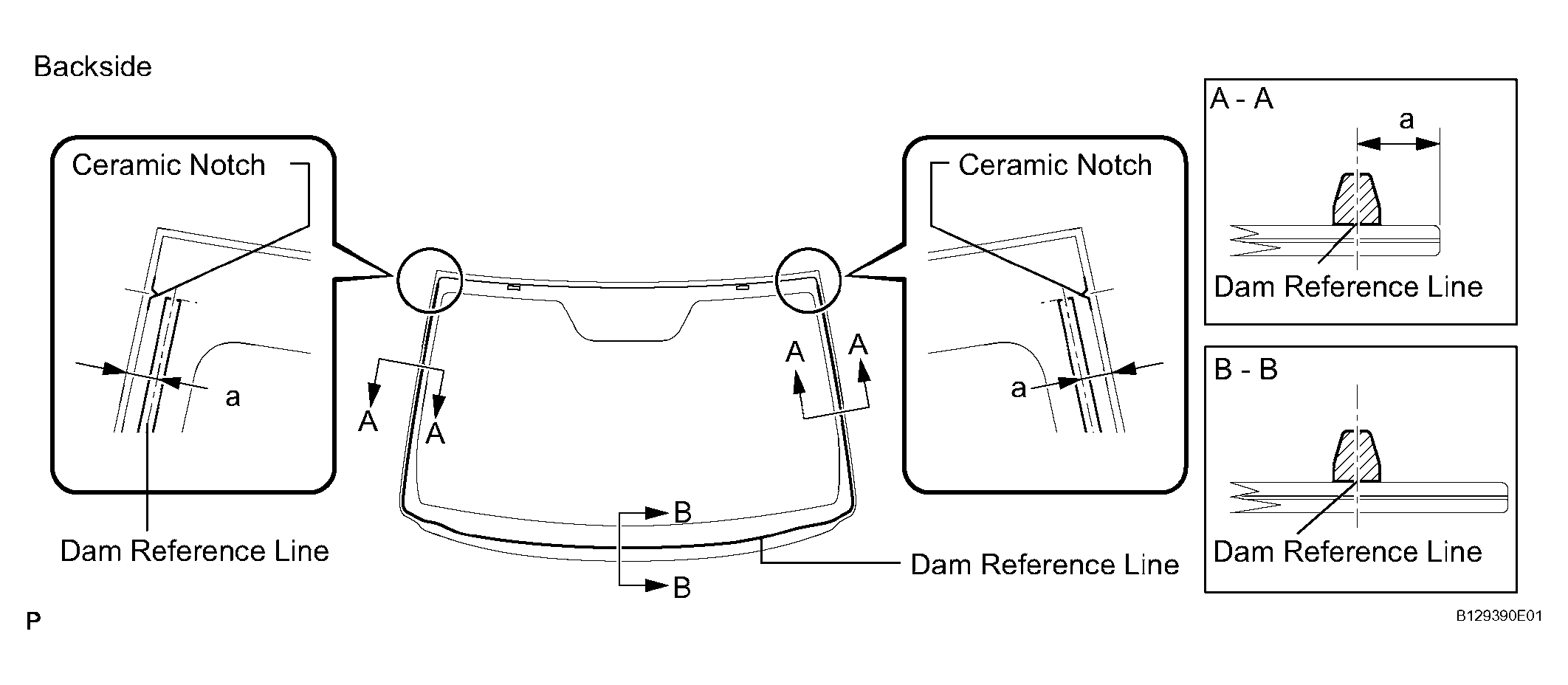

      Fig 3: Identifying Window Glass Dimension
      G04491435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard measurement

      WINDSHIELD AREA SPECIFIED CONDITION

      Area Specified Condition
      a 11.5 mm (0.452 in.)
  4. INSTALL FRONT WINDOW MOULDING INNER CENTER
    1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install the windshield outside moulding, as shown in the illustration.
      NOTE: Do not drive the vehicle for the amount of time written in the table below.

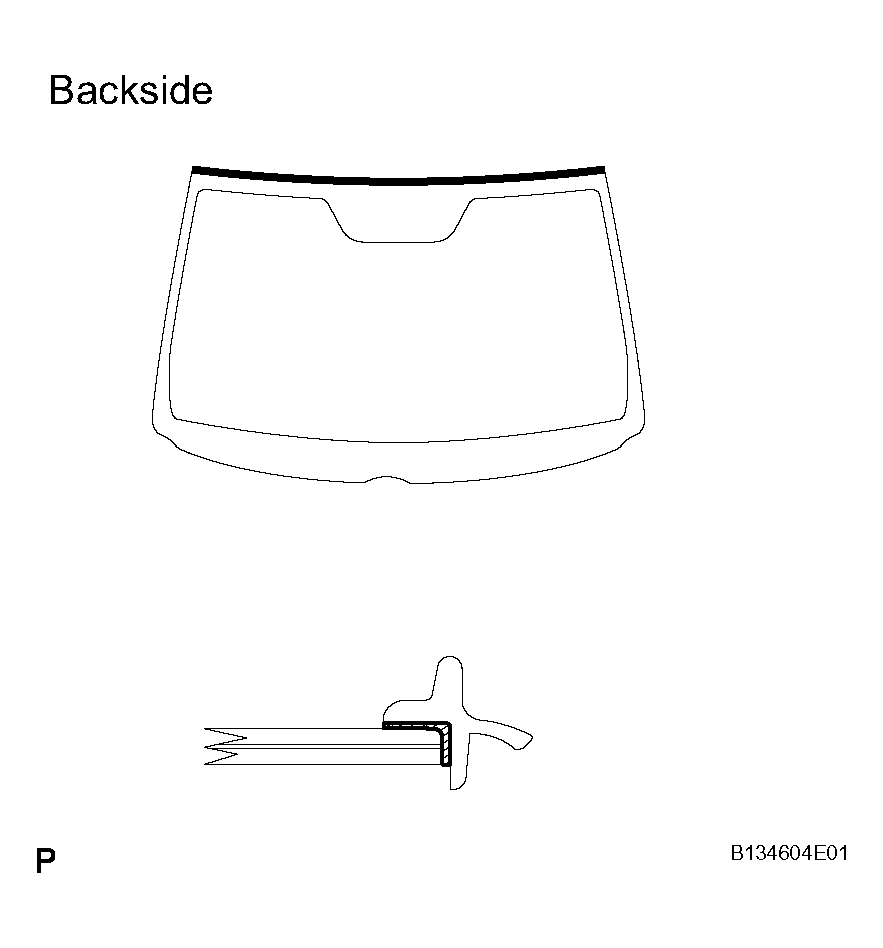

      Fig 4: Installing Windshield Outside Moulding
      G04491436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEMPERATURE REFERENCE

      Temperature Usage Time Frame
      35°C (95°F) 15 minutes
      20°C (68°F) 1 hour 40 minutes
      5°C (41°F) 8 hours
  5. INSTALL WINDSHIELD GLASS
    1. Position the glass.
      1. Using suction cups, place the glass in the correct position.
      2. Check that the entire contact surface of the glass rim is perfectly even.

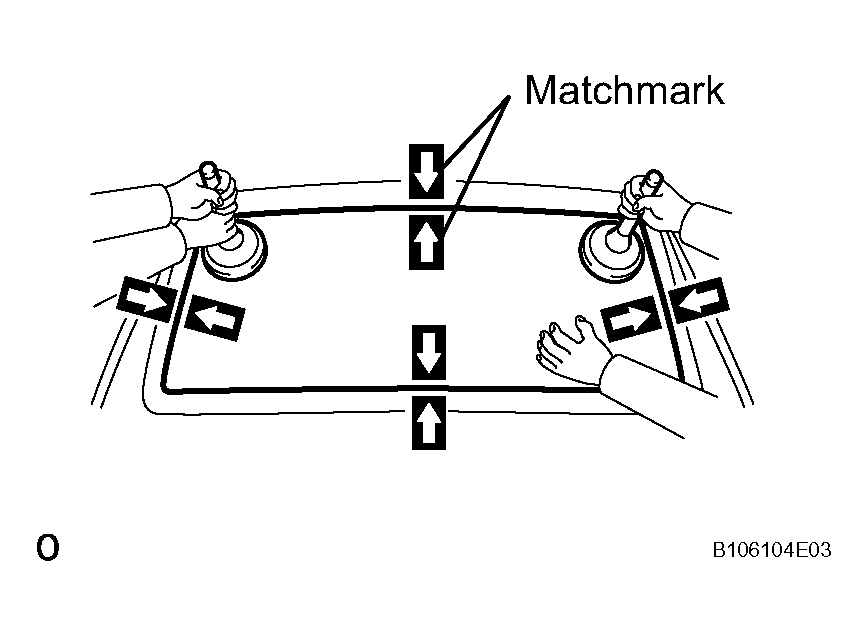

        Fig 5: Placing Glass In Correct Position
        G04491437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Place matchmarks on the glass and vehicle body on the locations indicated in the illustration.

        HINT:

        • Placing matchmarks is only necessary when installing new glass. If it is the reused glass, matchmarks should already be present.
        • When reusing the glass, check and correct the matchmark positions.
        NOTE: Check that the stoppers are attached to the vehicle body correctly.
      4. Using suction cups, remove the glass.
    2. Using a brush, apply Primer M to the exposed part of the vehicle body.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Do not apply primer to the adhesive.
      • Throw away any leftover primer.
      • Do not apply too much primer.

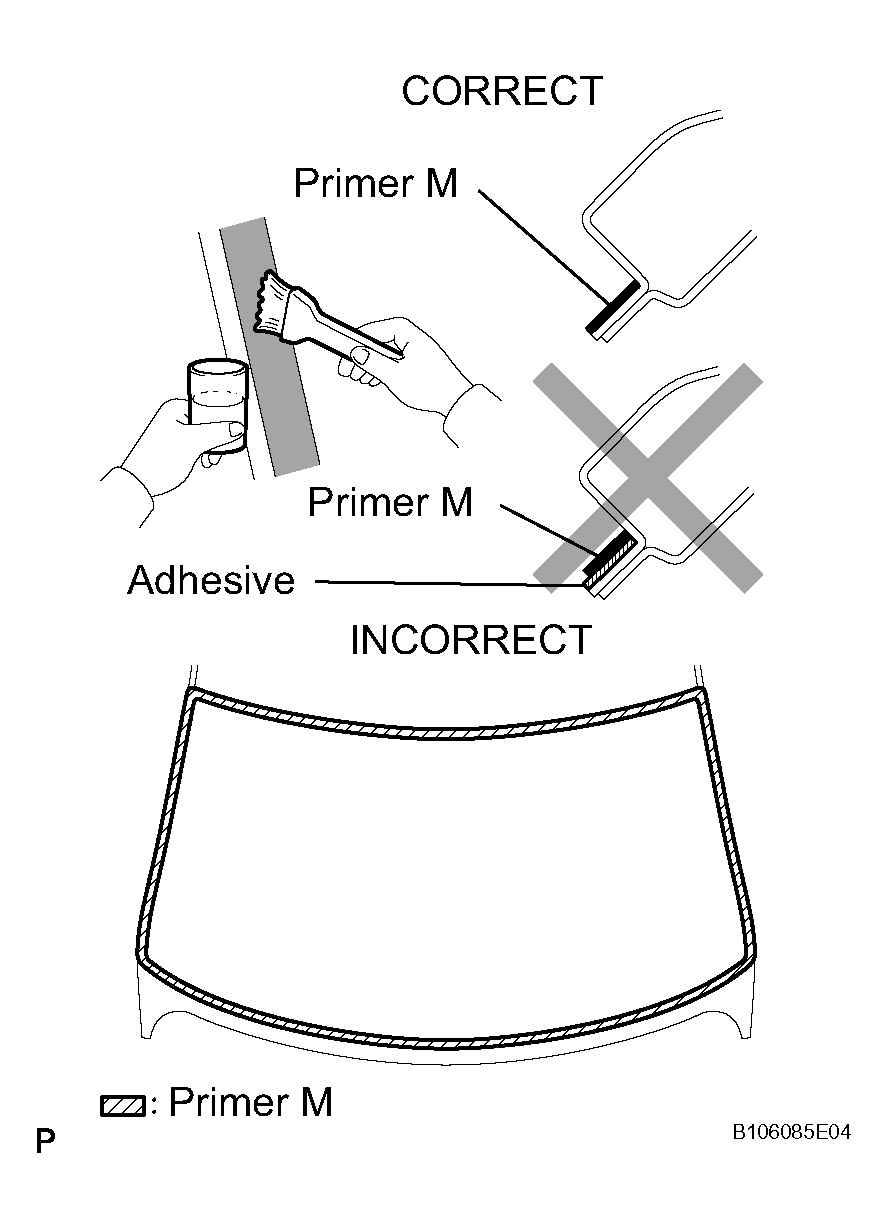

        Fig 6: Applying Primer M To Exposed Part Of Vehicle Body
        G04491438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a brush or sponge, apply Primer G to the contact surface of the glass.

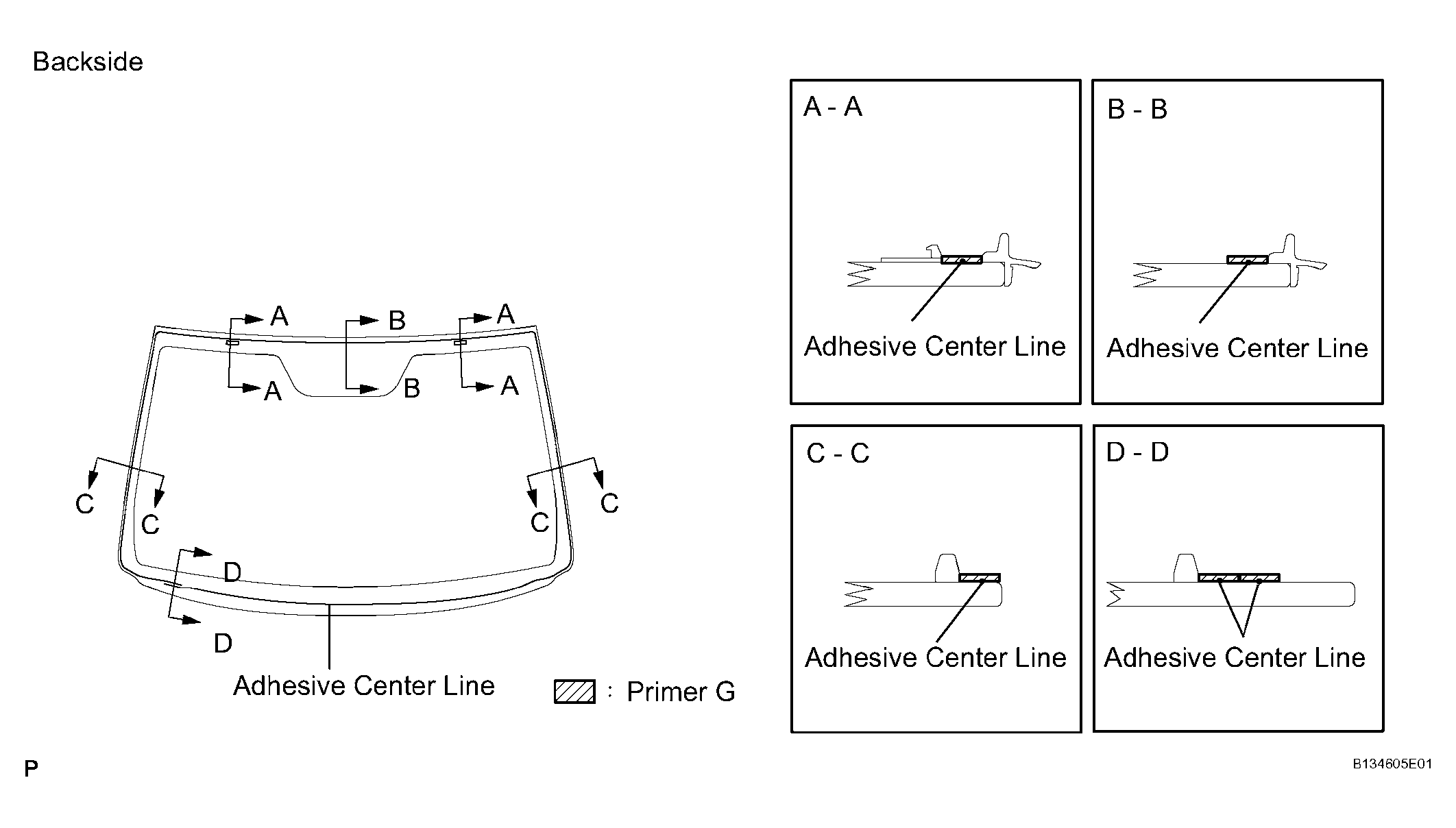

      Fig 7: Applying Primer G To Contact Surface Of Glass
      G04491439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the primer is applied to an area that is not specified, apply white gasoline to a clean cloth and wipe off the excess primer.

      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    4. Apply adhesive to the glass.

      Adhesive:

      Toyota Genuine Windshield Glass Adhesive or Equivalent

      1. Cut off the tip of the cartridge nozzle as shown in the illustration.

        HINT:

        After cutting off the tip, use all adhesive within the time written in the table below.

        Usage time frame

        TEMPERATURE REFERENCE

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Apply adhesive to the glass as shown in the illustration.

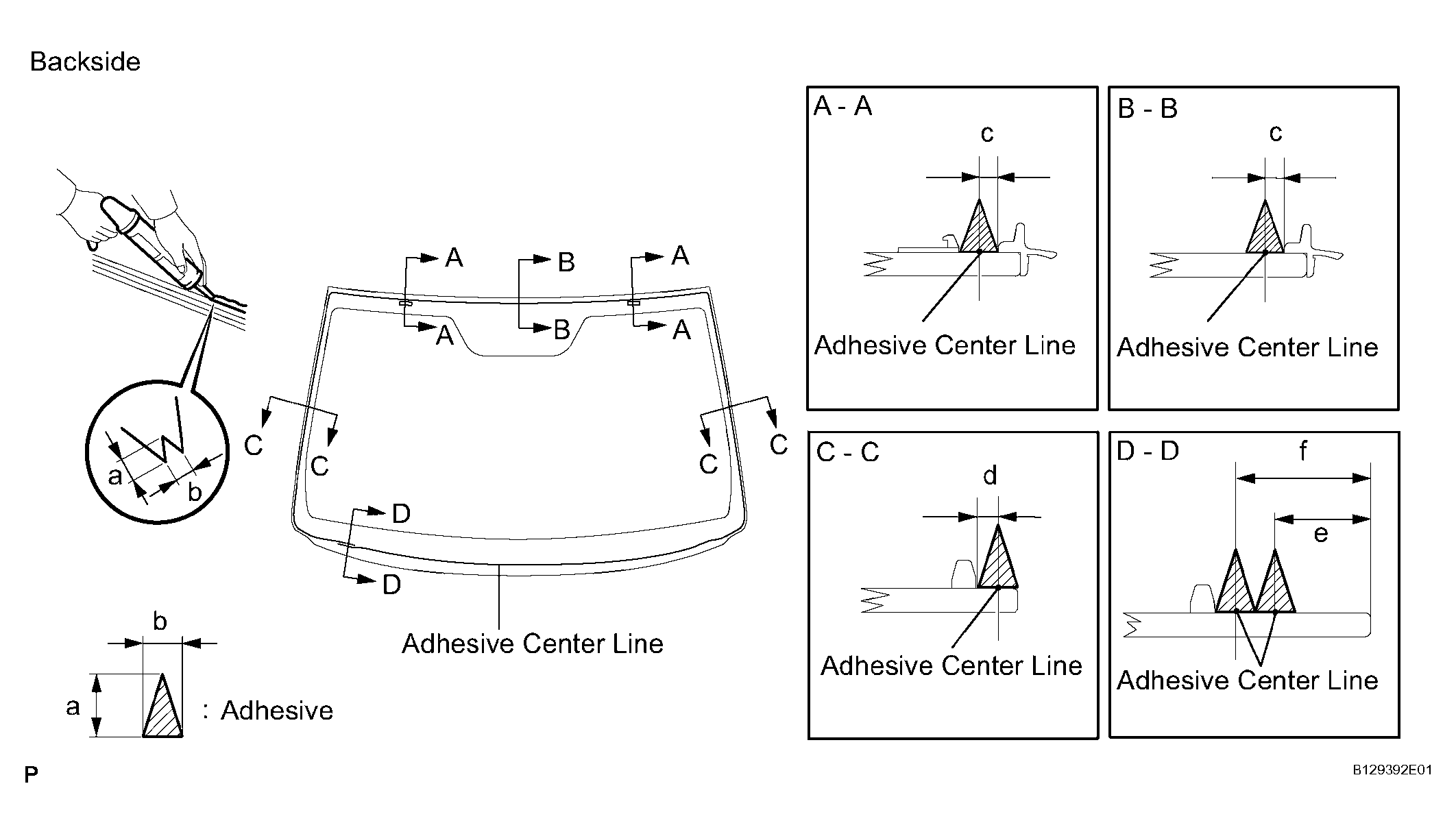

        Fig 8: Applying Adhesive To Glass
        G04491440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Standard measurement

        ADHESIVE MEASUREMENT AREA SPECIFIED CONDITION

        Area Specified Condition
        a 12.0 mm (0.472 in.)
        b 8.0 mm (0.315 in.)
        c 5.0 mm (0.196 in.)
        d 28.3 mm (1.114 in.)
    5. Install the glass to the vehicle body.
      1. Using suction cups, position the glass so that the matchmarks are aligned. Press it in gently along the rim.
      2. Lightly press the outer surface of the glass to ensure that it is securely fit to the vehicle body.
        NOTE:
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that the vehicle body and glass have a small gap between them.

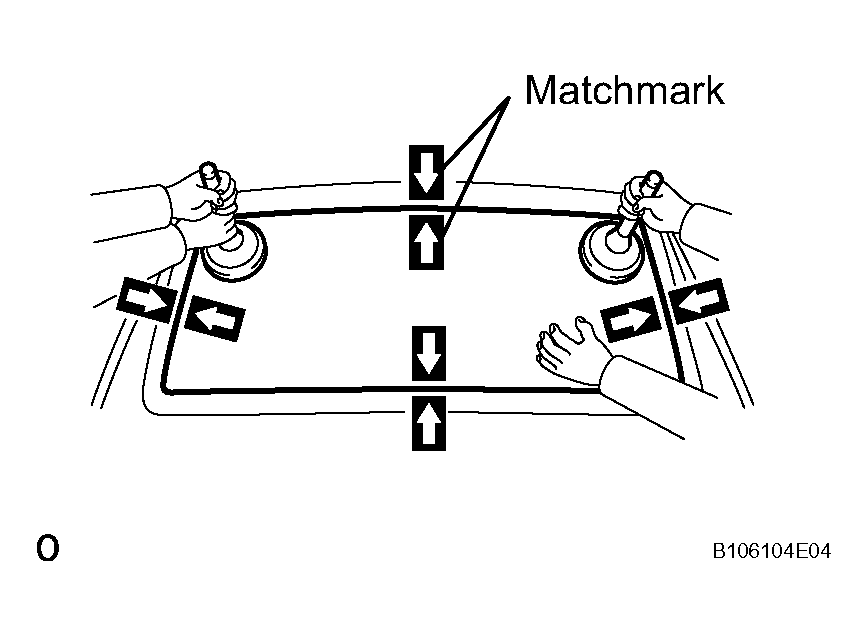

        Fig 9: Installing Glass To Vehicle Body
        G04491441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Hold the glass in place securely with protective tape or equivalent until the adhesive hardens.
    6. w/Windshield deicer:

      Install the clip and connect the connector.

  6. INSTALL COWL TOP VENTILATOR LOUVER (See appropriate step(s) under  INSTALLATION  )
  7. INSTALL NO. 2 WINDSHIELD OUTSIDE MOULDING FASTENER
    1. Install the moulding fastener with the 2 clips and double-sided tape.

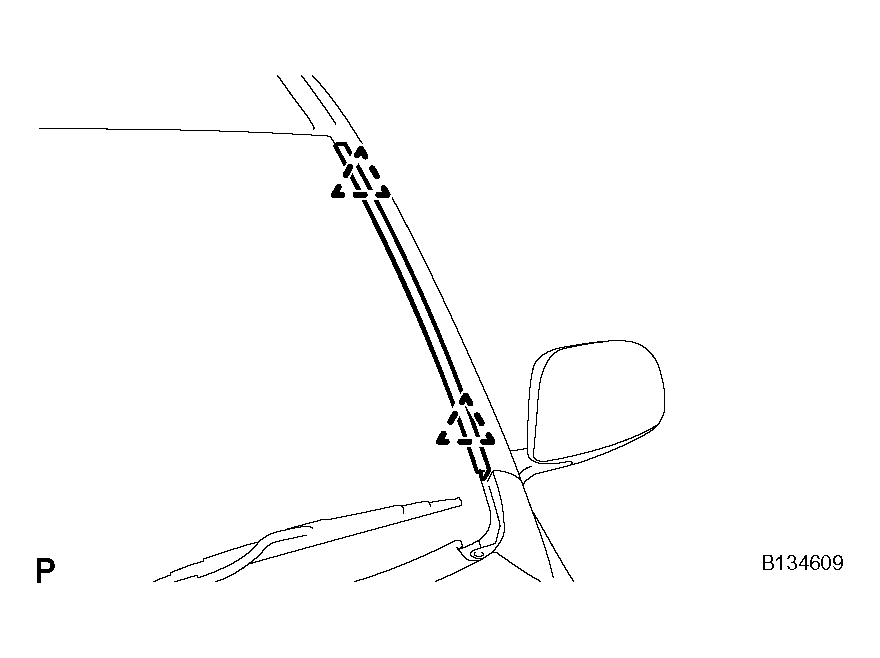

      Fig 10: Installing Moulding Fastener With Clips
      G04491442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 1 WINDSHIELD OUTSIDE MOULDING FASTENER
    1. Install the moulding fastener with the 2 clips and double-sided tape.
  9. INSTALL NO. 2 WINDSHIELD MOULDING OUTSIDE LH
    1. Install the moulding with claw and clip.

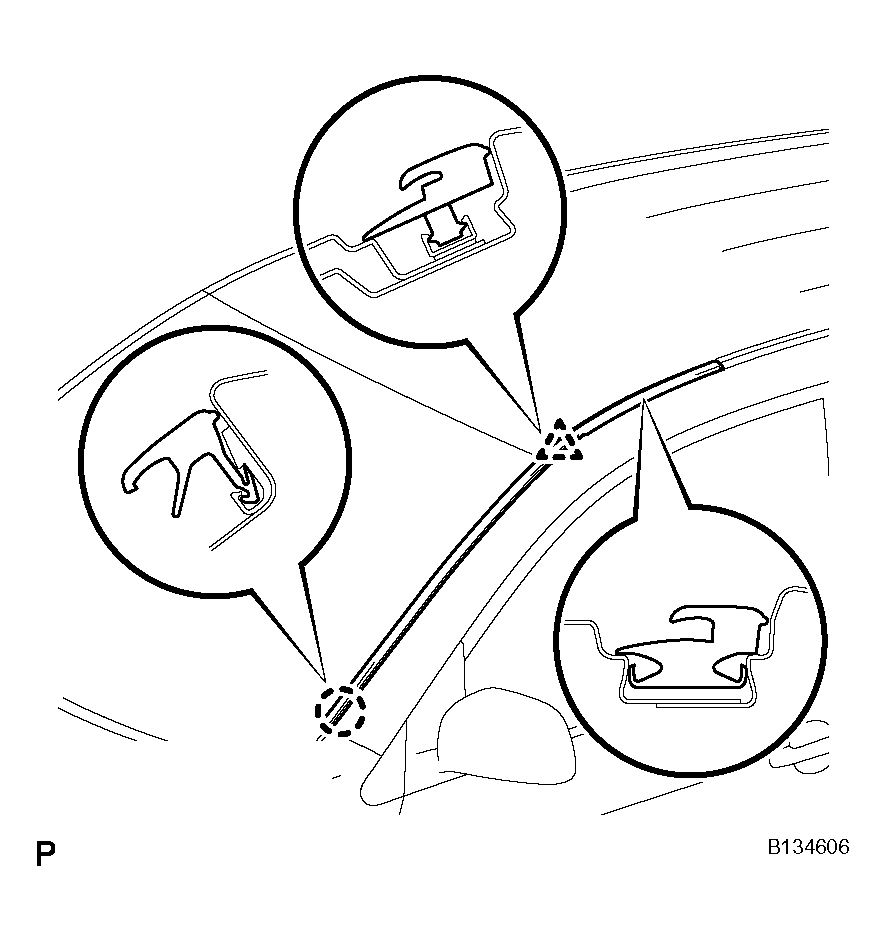

      Fig 11: Installing Moulding With Claw And Clip
      G04491443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 WINDSHIELD MOULDING OUTSIDE RH
    1. Install the moulding with claw and clip.
  11. INSTALL FRONT FENDER TO COWL SIDE SEAL LH (See appropriate step(s) under  INSTALLATION  )
  12. INSTALL FRONT FENDER TO COWL SIDE SEAL RH (See appropriate step(s) under  INSTALLATION  )
  13. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See appropriate step(s) under appropriate step(s) under  INSTALLATION  )
  14. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See appropriate step(s) under appropriate step(s) under  INSTALLATION  )
  15. INSTALL FRONT WIPER ARM HEAD CAP (See appropriate step(s) under  INSTALLATION  )
  16. INSTALL ROOF HEAD LINING
    1. Install the roof headlining (see INSTALLATION (2005/11-2006/01) or INSTALLATION (2006/01- ) ).
  17. INSTALL VISOR HOLDER (See appropriate step(s) under  INSTALLATION  )
  18. INSTALL VISOR ASSEMBLY LH (See appropriate step(s) under  INSTALLATION  )
  19. INSTALL VISOR ASSEMBLY RH (See appropriate step(s) under  INSTALLATION  )
  20. INSTALL ASSIST GRIP SUB-ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  21. INSTALL ASSIST GRIP COVER (See appropriate step(s) under  INSTALLATION  )
  22. INSTALL ROOM LIGHT ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  23. INSTALL INNER REAR VIEW MIRROR ASSEMBLY (See appropriate step(s) under  REMOVAL  )
  24. INSTALL FRONT PILLAR GARNISH LH (See appropriate step(s) under  INSTALLATION  )
  25. INSTALL FRONT PILLAR GARNISH RH (See appropriate step(s) under  INSTALLATION  )
  26. INSTALL FRONT DOOR OPENING TRIM LH
  27. INSTALL FRONT DOOR OPENING TRIM RH
  28. CHECK FOR LEAKS AND REPAIR
    1. Conduct a leak test after the adhesive has completely hardened.
    2. Seal any leaks with auto glass sealer.
  29. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
