Accelerator Pedal Rod: Installation

  1. INSTALL ACCELERATOR PEDAL ROD
    1. Install the accelerator pedal rod with the 2 bolts.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

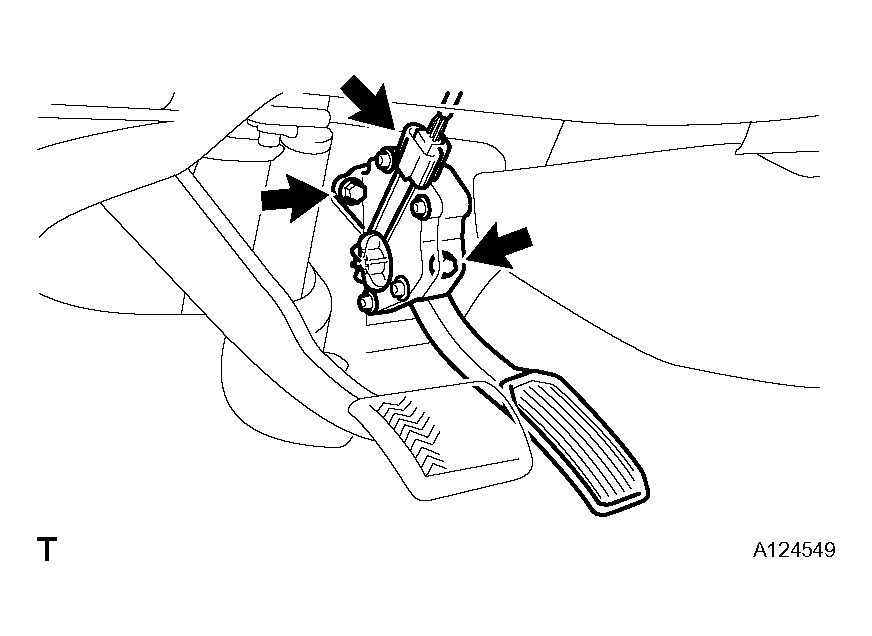

      Fig 1: Installing Accelerator Pedal Rod
      G04484153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the accelerator pedal position sensor connector.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
