Engine Control System (2AZ-FE): ECM: Installation

INSTALL ECM

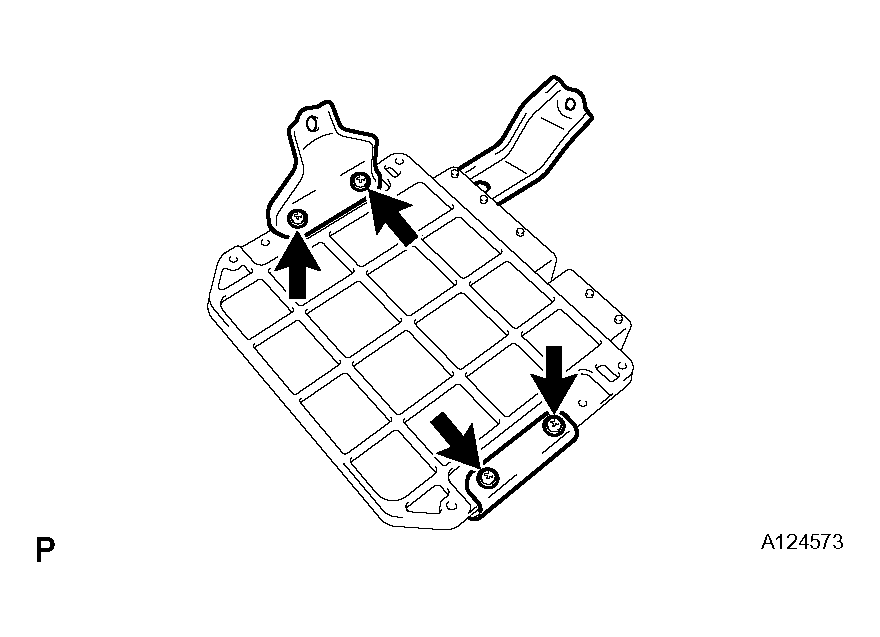

1. Install the 2 brackets to the ECM with the 4 screws.
  Torque: 3.0 N*m (30 kgf*cm, 27 in.*lbf)

  Fig 1: Installing Brackets To ECM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 ECM connectors.
  NOTE: When connecting the connector, make sure that dirt, water and other foreign matter does not become stuck between the connector and other part.

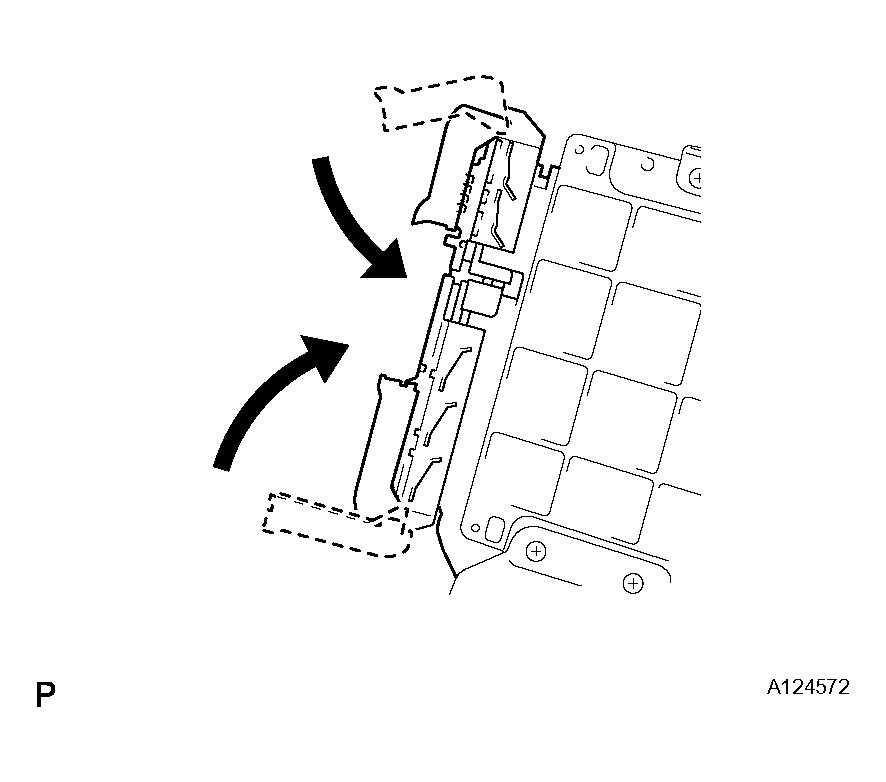

  1. Connect the 2 ECM connectors and lower the 2 levers.
    NOTE: Make sure that the 2 levers are securely lowered.

    Fig 2: Connecting ECM Connectors
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

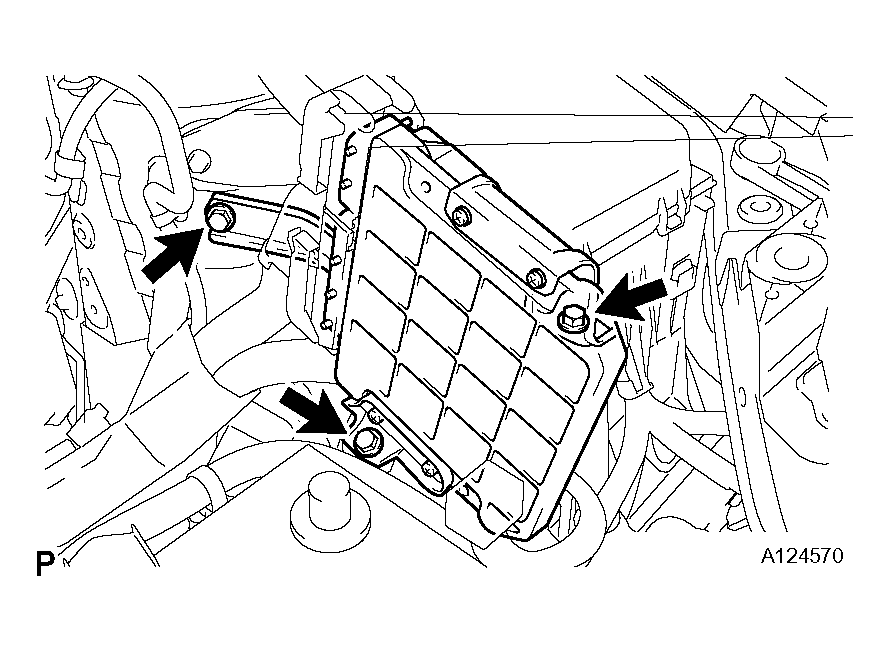

3. Install the ECM with the 3 bolts.
  Torque: 6.5 N*m (66 kgf*cm, 57 in.*lbf)

  Fig 3: Installing ECM To Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CASE

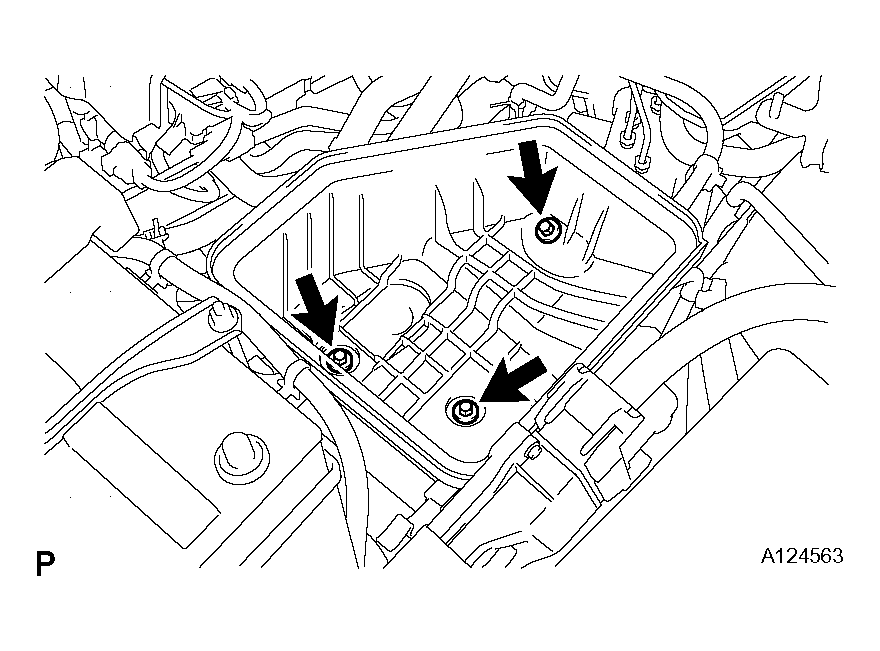

1. Install the air cleaner case with the 3 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the harness clamp.
INSTALL AIR CLEANER CAP (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM REGISTRATION
1. When replacing the ECM, the Vehicle Identification Number (VIN) must be input into the replacement ECM (see REGISTRATION ).
2. When replacing the ECM, perform the vehicle stability control system recognition in the ECM (see REGISTRATION ).
RESET MEMORY
1. When replacing the ECM, perform the RESET MEMORY procedure (A/T initialization).
  For U140F, refer to INITIALIZATION .

  For U241E, refer to INITIALIZATION .
