Knock Sensor, Intake Manifold: Installation

INSTALL KNOCK SENSOR
1. Install the sensor with the nut.
  Torque: 20 N*m (205 kgf*cm, 15 ft.*lbf)

  NOTE: Make sure that the knock sensor is in the correct position.
2. Connect the sensor connector.

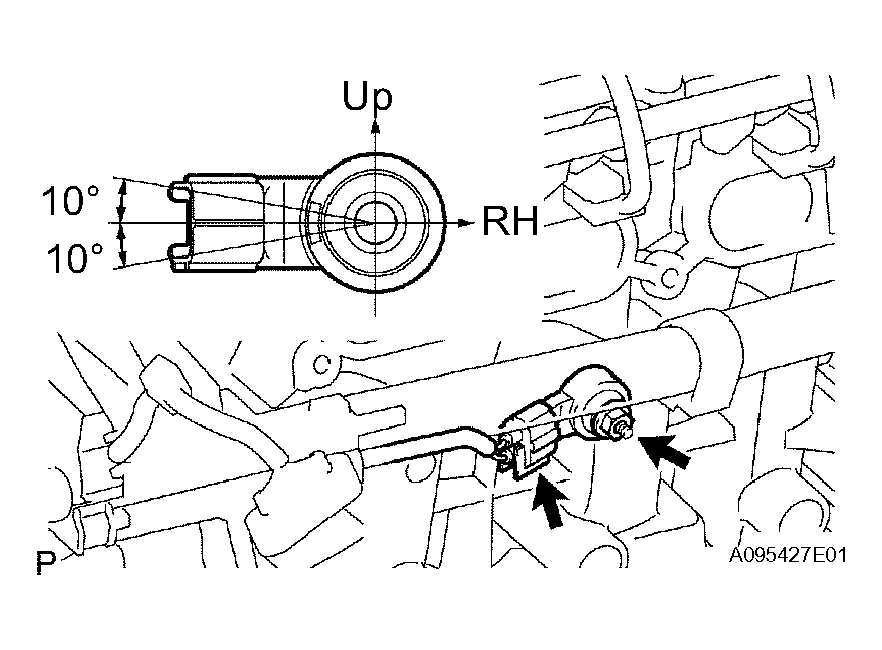

  Fig 1: Installing Knock Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD INSULATOR
1. Install the intake manifold insulator onto the cylinder block.

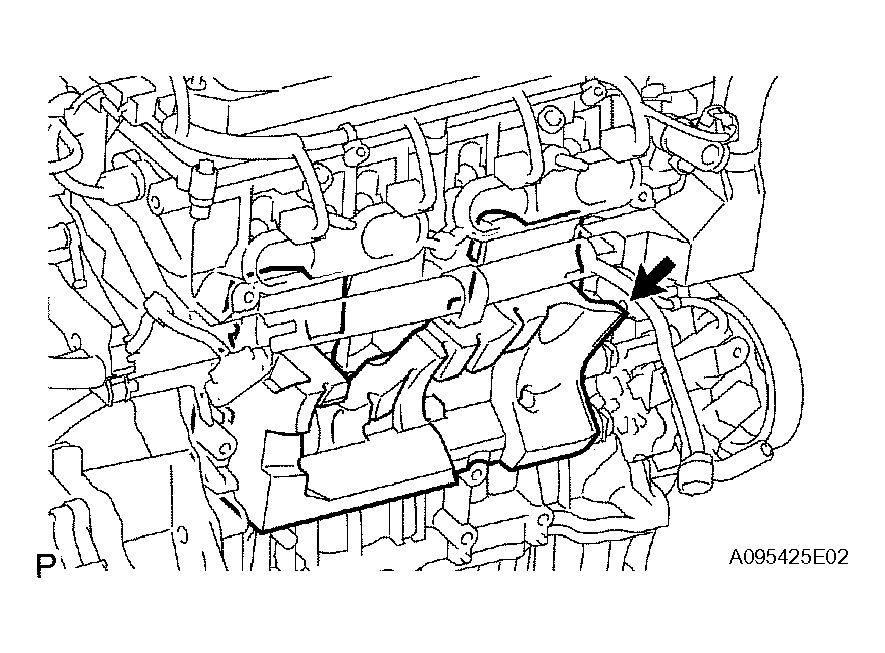

  Fig 2: Installing Intake Manifold Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install a new gasket into the intake manifold.

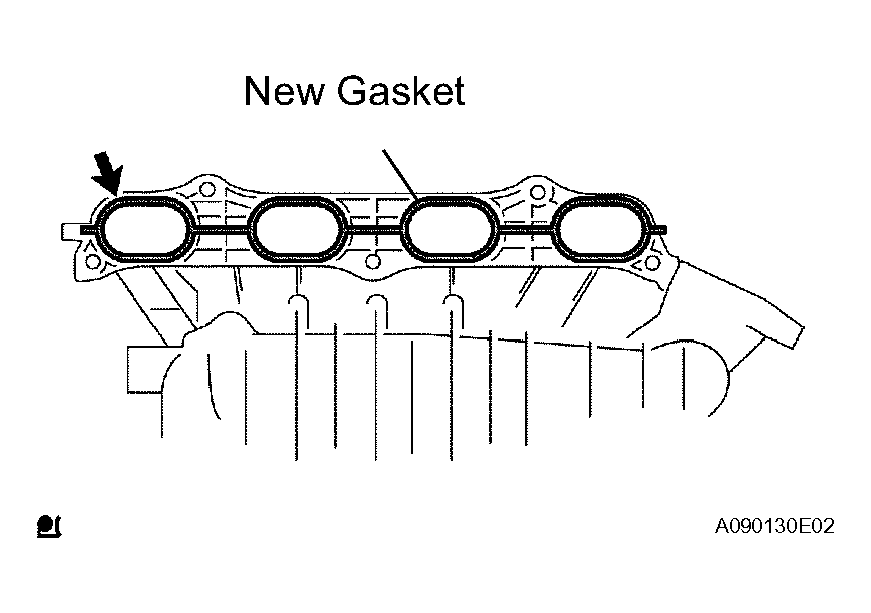

  Fig 3: Installing Gasket Into Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the intake manifold with the 5 bolts and 2 nuts.
  Torque: 30 N*m (305 kgf*cm, 22 ft.*lbf)
3. Fit the union to check valve hose into the vacuum hose clamp.
4. Install the wire harness clamp.
5. Connect the camshaft timing oil control valve connector.
6. Connect the union to check valve hose to the brake booster.
CONNECT HEATER WATER OUTLET HOSE
1. Install the heater water outlet hose to the water bypass pipe and heater radiator unit.
CONNECT HEATER WATER INLET HOSE
1. Install the heater water inlet hose to the cylinder head and heater radiator unit.
2. Install the hose clamp.
INSTALL FUEL TUBE
INSTALL FUEL DELIVERY PIPE (See INSTALLATION )

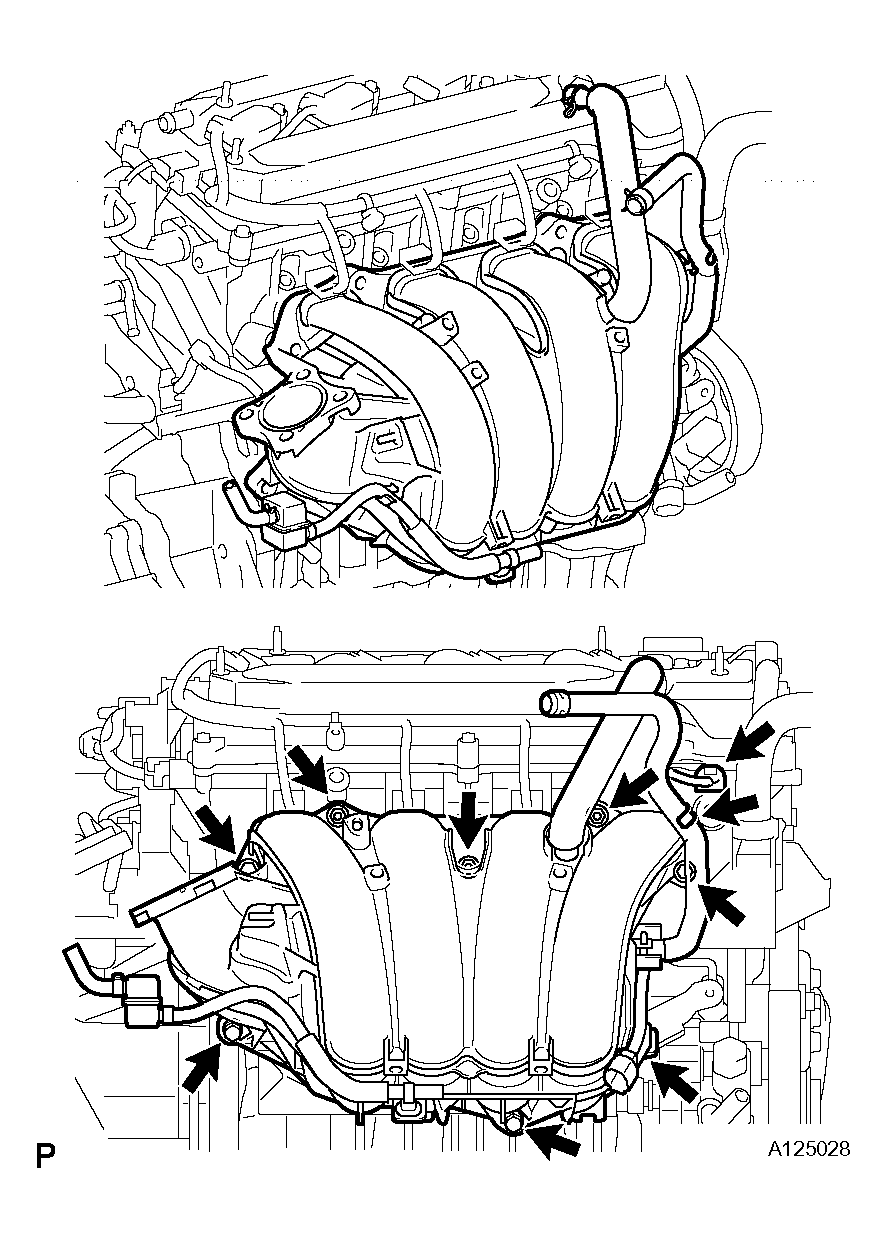

Fig 4: Installing Intake Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE BODY (See INSTALLATION )
INSTALL AIR CLEANER CAP (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See COOLANT )
CHECK FOR ENGINE COOLANT LEAKAGE (See COOLING SYSTEM )
CHECK FOR FUEL LEAKAGE (See CHECK FOR FUEL LEAKAGE )
INSTALL NO. 1 ENGINE COVER (See INSTALLATION )
