Knock Sensor, Intake Manifold: Removal

DISCHARGE FUEL SYSTEM PRESSURE (See REMOVAL )
DRAIN COOLANT (See COOLANT )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE NO. 1 ENGINE COVER (See REMOVAL )
REMOVE AIR CLEANER CAP (See REMOVAL )
REMOVE THROTTLE BODY (See REMOVAL )
REMOVE FUEL DELIVERY PIPE (See REMOVAL )
DISCONNECT FUEL TUBE
REMOVE HEATER WATER INLET HOSE
1. Remove the hose clamp.
2. Remove the heater water inlet hose from the heater radiator unit and cylinder head.
REMOVE HEATER WATER OUTLET HOSE
1. Remove the heater water outlet hose from the heater radiator unit and water by-pass pipe.
REMOVE INTAKE MANIFOLD
1. Disconnect the union to check valve hose from the brake booster.
2. Disconnect the camshaft timing oil control valve connector.
3. Remove the wire harness clamp.
4. Remove the union to check valve hose from the vacuum hose clamp.
5. Remove the 5 bolts, 2 nuts and intake manifold.

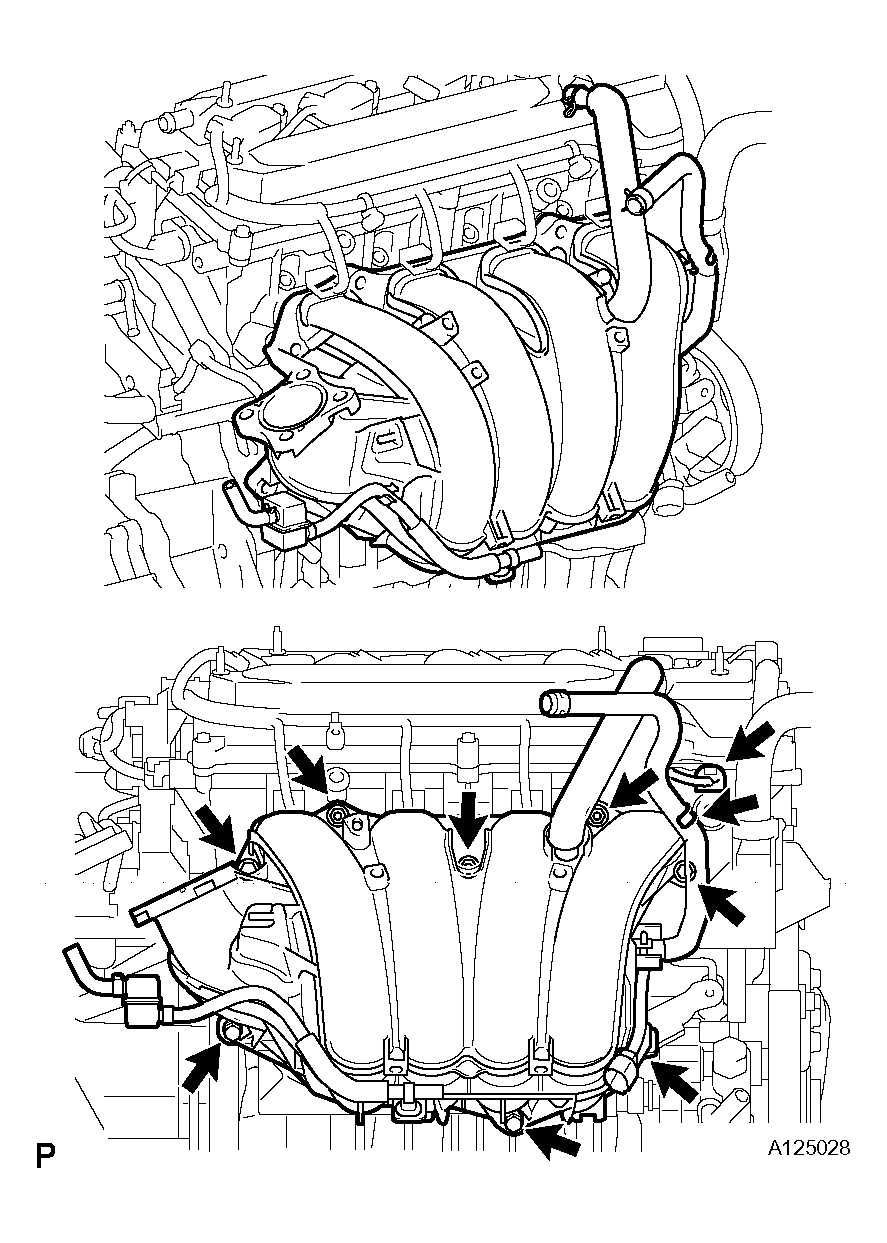

  Fig 1: Removing Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the gasket from the intake manifold.

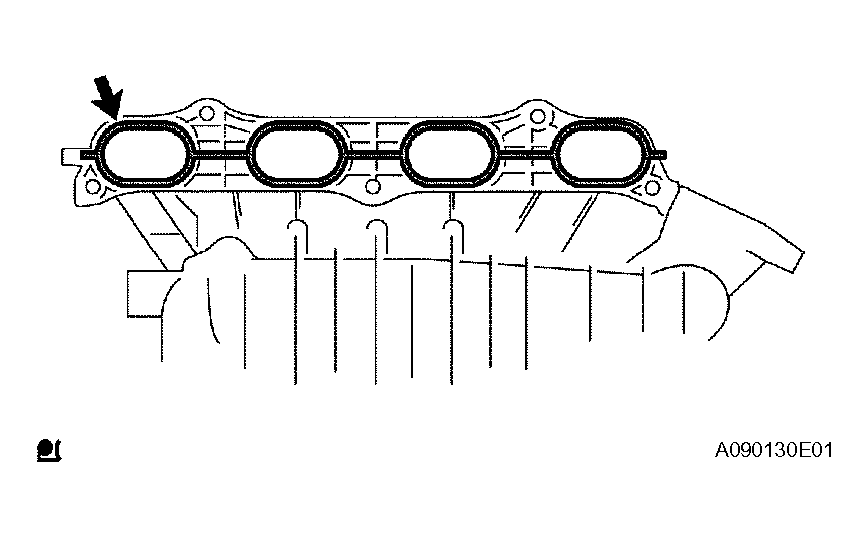

  Fig 2: Removing Gasket From Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INTAKE MANIFOLD INSULATOR
1. Remove the intake manifold insulator from the cylinder block.

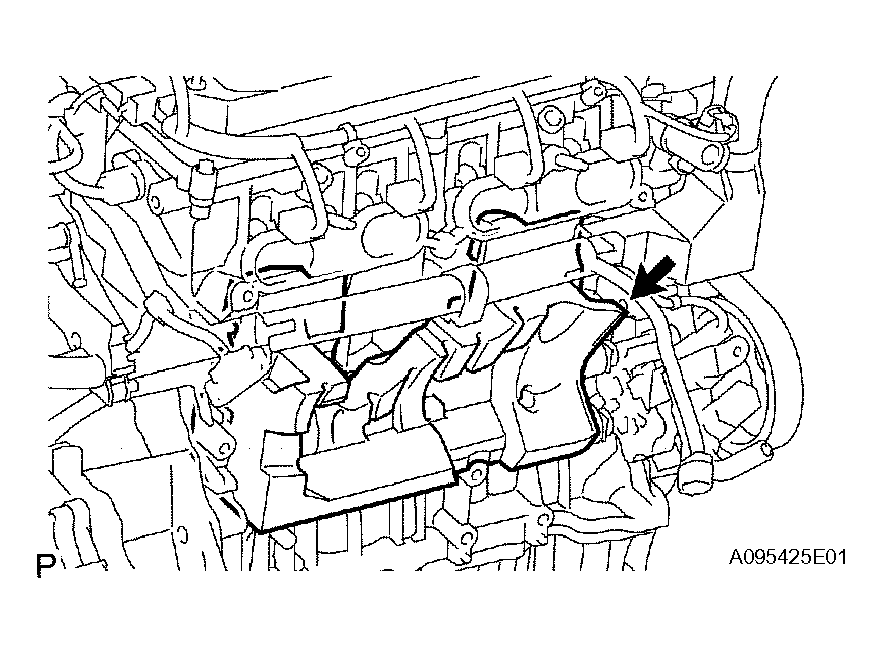

  Fig 3: Removing Intake Manifold Insulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE KNOCK SENSOR
1. Disconnect the sensor connector.
2. Remove the nut and sensor.

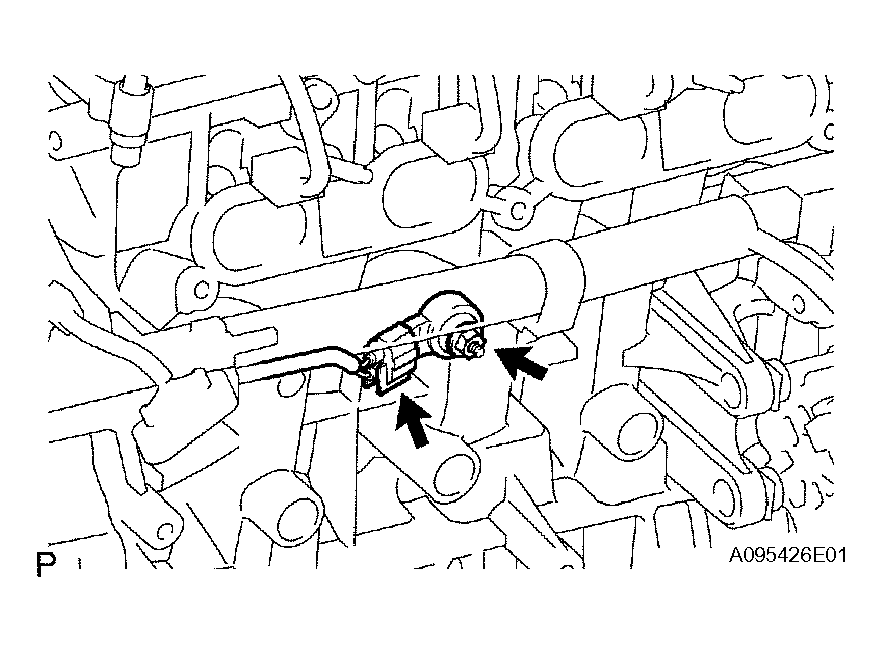

  Fig 4: Removing Knock Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
