Inspection Procedure

HINT:

Read freeze frame data using the intelligent tester. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

  1. READ OUTPUT DTC
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch ON and turn the intelligent tester ON.
    3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DTC INFO / CURRENT CODES.
    4. Read DTCs.

      Result

      RESULT

      Display (DTC Output) Proceed to
      P0110 A
      P0112 B
      P0113 C

    B: Go to step   6

    C: Go to step   3

    A: Go TO NEXT STEP.

  2. READ VALUE USING INTELLIGENT TESTER (INTAKE AIR TEMPERATURE)
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch ON.
    3. Turn the tester ON.
    4. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    5. Read the value displayed on the tester.

      Standard: Same as actual Intake Air Temperature (IAT).

      Result

      RESULT

      Temperature Displayed Proceed To
      -40°C (-40°F) A
      140°C (284°F) or higher B
      Same as actual IAT C

      HINT:

      • If there is an open circuit, the intelligent tester indicates -40°C (-40°F).
      • If there is a short circuit, the intelligent tester indicates 140°C (284°F) or higher.

    B: Go to step   5

    C: CHECK FOR INTERMITTENT PROBLEMS

    A: Go TO NEXT STEP.

  3. READ VALUE USING INTELLIGENT TESTER (CHECK FOR OPEN IN WIRE HARNESS)
    1. Disconnect the B1 Mass Air Flow (MAF) meter connector (see Fig 1).
    2. Connect terminals THA and E2 of the MAF meter wire harness side connector.
    3. Connect the intelligent tester to the DLC3.
    4. Turn the ignition switch ON.
    5. Turn the tester ON.
    6. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    7. Read the value displayed on the tester.

      Standard value: 140°C (284°F) or higher

    8. Reconnect the MAF meter connector.

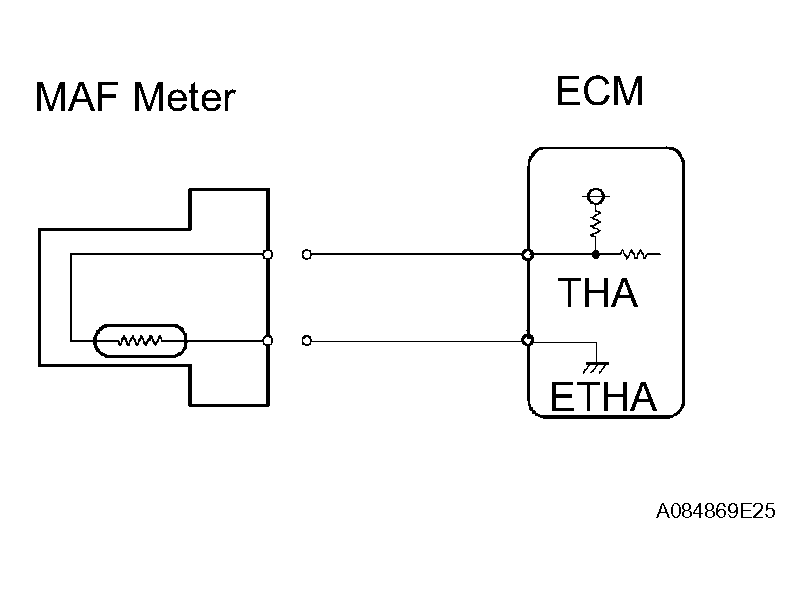

    Fig 1: Checking Open In Wire Harness
    G04483785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE MASS AIR FLOW METER

    NG: Go TO NEXT STEP.

  4. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
    1. Disconnect the B1 MAF meter connector.
    2. Disconnect the B30 ECM connector.
    3. Measure the resistance.

      Standard resistance

      TESTER CONNECTION - SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      B1-1 (THA) - B30-65 (THA) Below 1 Ω
      B1-2 (E2) - B30-88 (ETHA) Below 1 Ω

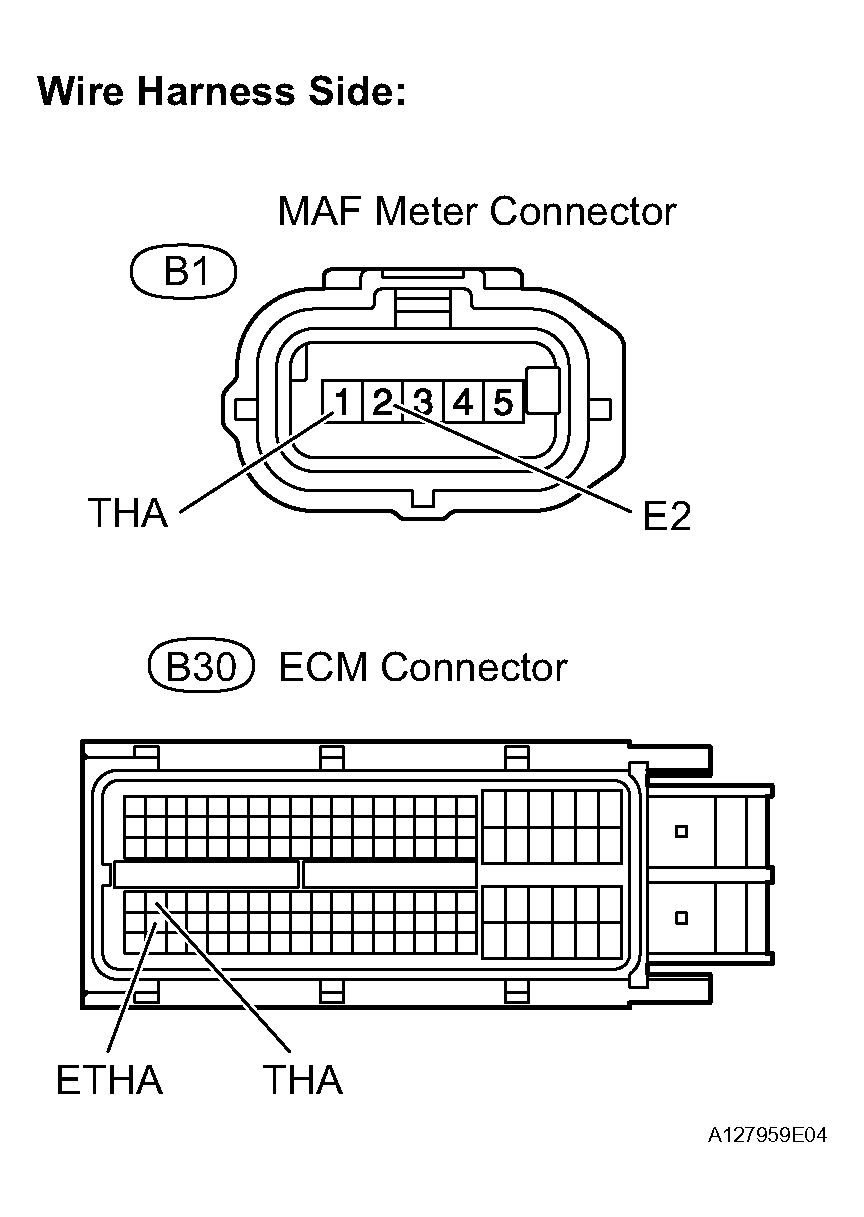

      Fig 2: Checking Harness And Connector (Mass Air Flow Meter - ECM)
      G04483786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the MAF meter connector.
    5. Reconnect the ECM connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: CONFIRM GOOD CONNECTION TO ECM. IF OK, REPLACE ECM

  5. READ VALUE USING INTELLIGENT TESTER (CHECK FOR SHORT IN WIRE HARNESS)
    1. Disconnect the B1 MAF meter connector (see Fig 3).
    2. Connect the intelligent tester to the DLC3.
    3. Turn the ignition switch ON.
    4. Turn the tester ON.
    5. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / PRIMARY / INTAKE AIR.
    6. Read the value displayed on the tester.

      Standard value: -40°C (-40°F)

    7. Reconnect the MAF meter connector.

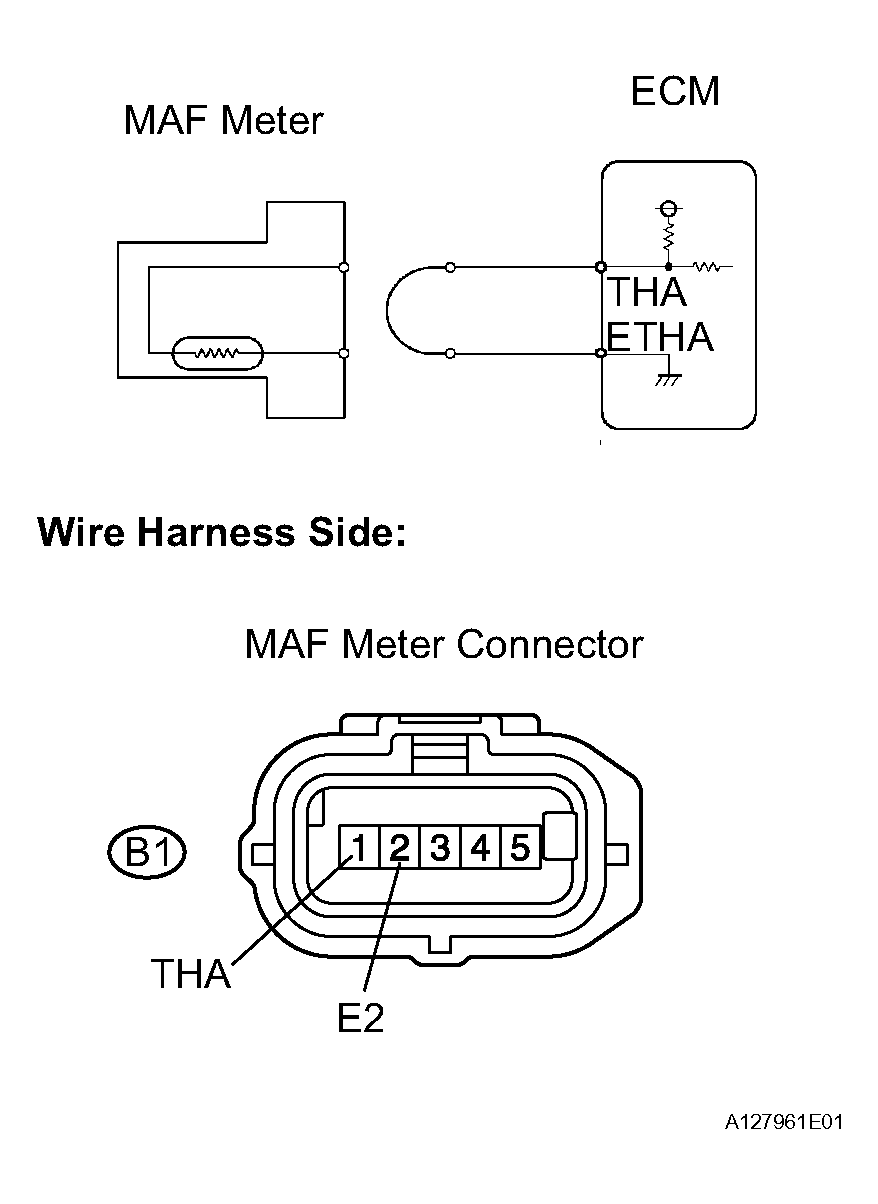

    Fig 3: Checking Short In Wire Harness
    G04483787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: REPLACE MASS AIR FLOW METER

    NG: Go TO NEXT STEP.

  6. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
    1. Disconnect the B1 MAF meter connector.
    2. Disconnect the B30 ECM connector.
    3. Measure the resistance.

      Standard resistance

      TESTER CONNECTION - SPECIFIED CONDITIONS

      Tester Connections Specified Conditions
      B1-1 (THA) or B30-65 (THA) - Body ground 10 kΩ or higher

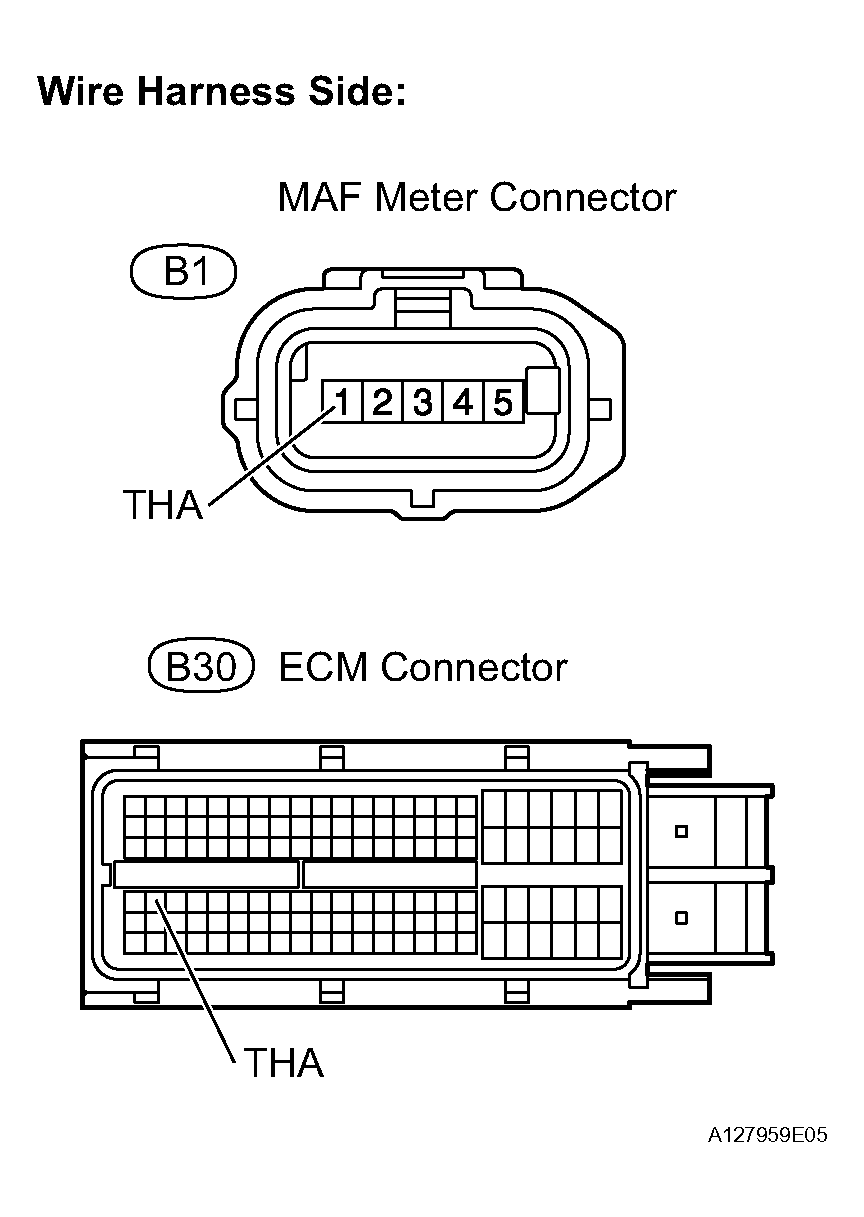

      Fig 4: Checking Harness And Connector (Mass Air Flow Meter - ECM)
      G04483788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Reconnect the MAF meter connector.
    5. Reconnect the ECM connector.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM
