DTC P1550 Battery Current Sensor Circuit; DTC P1551 Battery Current Sensor Circuit Low; DTC P1552 Battery Current Sensor Circuit High: Description
The battery current sensor installed on the positive (+) battery terminal detects the amount of current supplied from the generator.

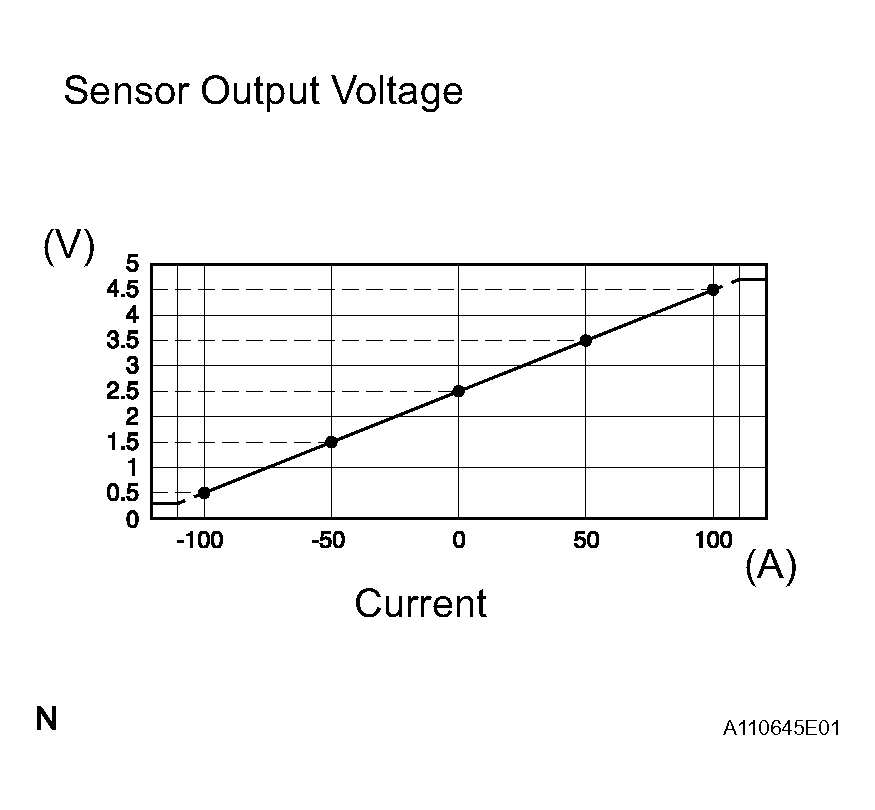

The battery current sensor changes current to voltage (at the positive (+) battery terminal) and sends it to the ECM. The ECM controls the voltage of the generator based on the signals from the battery current sensor.
DTC DETECTION CONDITIONS - TROUBLE AREA
| DTC No. | DTC Detection Conditions | Trouble Areas |
|---|---|---|
| P1550 | The following condition continues for 10 seconds or more with the ignition switch ON (1 trip detection logic):
|
|
| P1551 | Battery current sensor output value is 0.2 V or less for 0.5 seconds or more with the ignition switch ON (1 trip detection logic): |
|
| P1552 | Battery current sensor output value is 4.8 V or more for 0.5 seconds or more with the ignition switch ON (1 trip detection logic): |
|
