Waveform 10

Throttle actuator negative terminal

THROTTLE ACTUATOR NEGATIVE TERMINAL WAVEFORM REFERENCE

ECM Terminal Names	Between M-and ME01
Tester Ranges	5 V/DIV., 1 msec./DIV.
Conditions	Idling with warm engine

HINT:

The duty ratio varies depending on the throttle actuator operation.

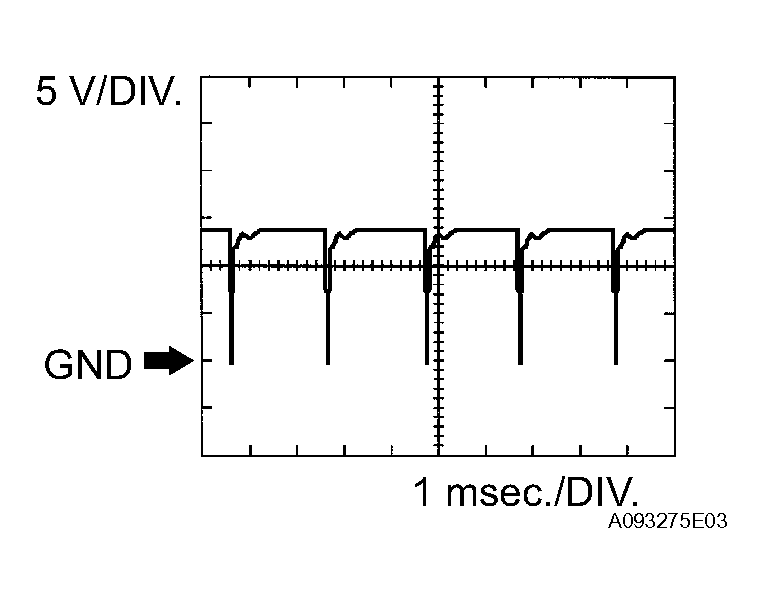

Fig 1: Checking Waveform 10 Using An Oscilloscope

G04483740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
