Waveform 11
Engine speed signal

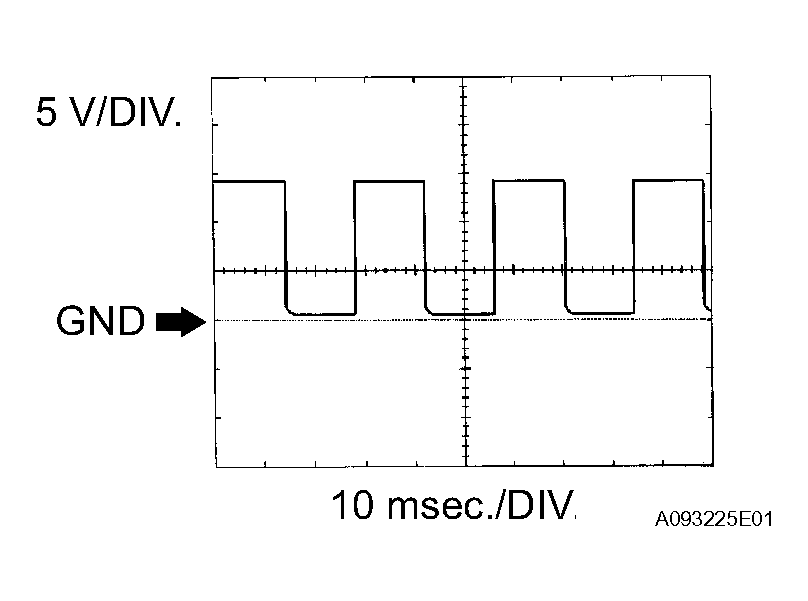

ENGINE SPEED SIGNAL WAVEFORM REFERENCE
| ECM Terminal Names |
Between TACH and E1 |
| Tester Ranges |
5 V/DIV., 10 msec./DIV. |
| Conditions |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
