Waveform 14
Generator

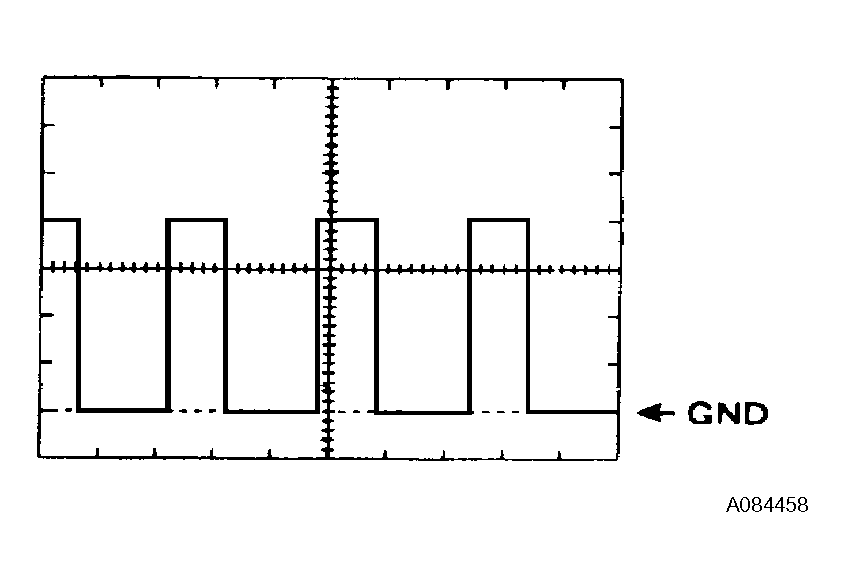

GENERATOR WAVEFORM REFERENCE
| ECM Terminal Names | Between RLO and E1 |
| Tester Ranges | 2 V/DIV., 50 msec./DIV. |
| Conditions | After engine warmed up, during charging control, vehicle driven at constant speed |
HINT:
A constant value is not output, as the duty ratio varies depending on the electrical load and battery condition.
