Waveform 1
WARNING: This page is about a different variant/trim than selected.
Camshaft Timing Oil Control Valve (OCV)

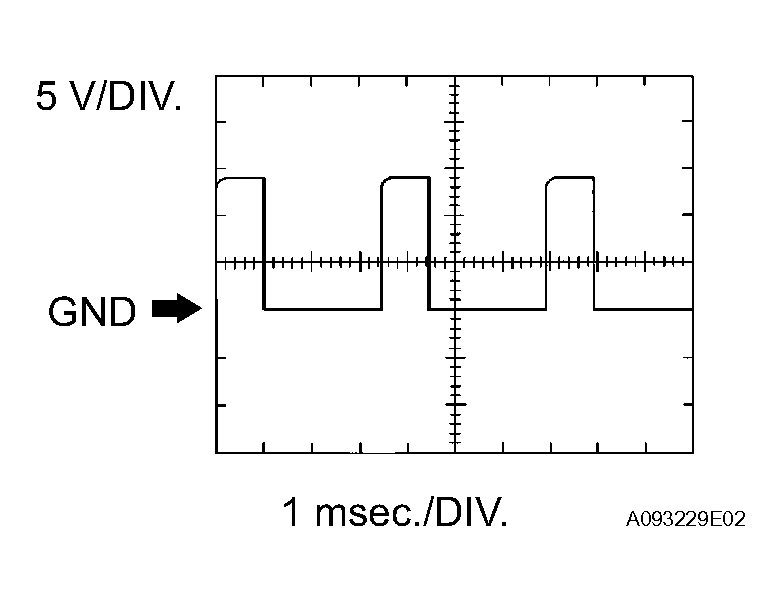

REFERENCE WAVEFORM 1
| Symbol (Terminal No.) |
Between OC1+ and OC1-
Between OC2+ and OC2-
Between OE1+ and OE1-
Between OE2+ and OE2- |
| Tester Range |
5 V/DIV., 1 msec./DIV. |
| Condition |
Idling |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
