Waveform 10
WARNING: This page is about a different variant/trim than selected.
Throttle Actuator Negative Terminal

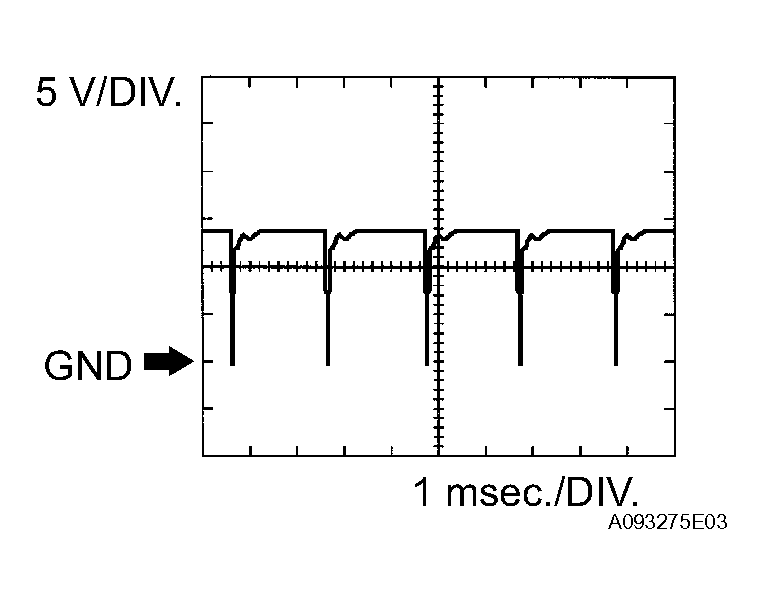

REFERENCE WAVEFORM 10
| Symbol (Terminal No.) |
Between M-and ME01 |
| Tester Range |
5 V/DIV., 1 msec./DIV. |
| Condition |
Idling with warm engine |
HINT:
The duty ratio varies depending on the throttle actuator operation.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
