Engine Speed Signal

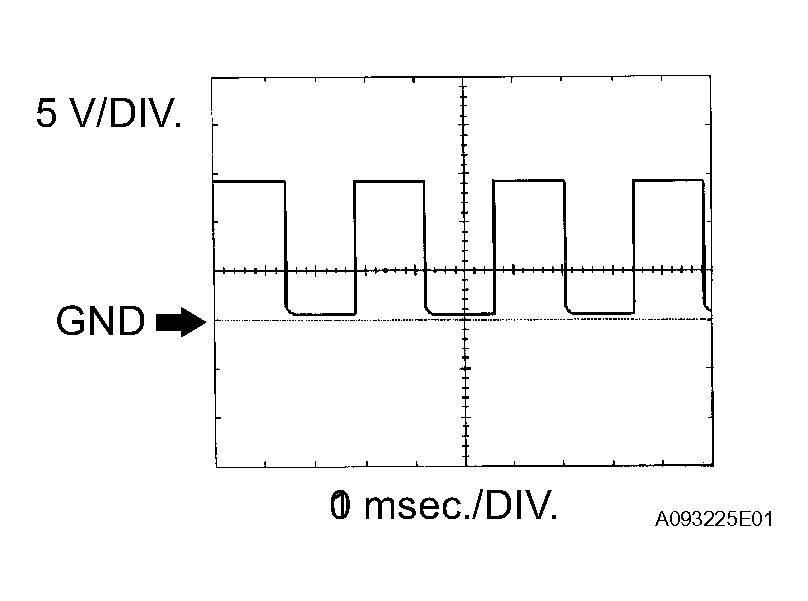

REFERENCE WAVEFORM 11
| Symbol (Terminal No.) |
Between TACH and E1 |
| Tester Range |
5 V/DIV., 10 msec./DIV. |
| Condition |
Idling |
HINT:
The wavelength becomes shorter as the engine rpm increases.
