Waveform 12

WARNING: This page is about a different variant/trim than selected.

CAN Communication Signal

REFERENCE WAVEFORM 12

Symbol (Terminal No.)	Between CANH and E1
Tester Range	1 V/DIV., 10 sec./DIV.
Condition	Engine stops and ignition switch ON

HINT:

The waveform varies depending on the CAN communication signal.

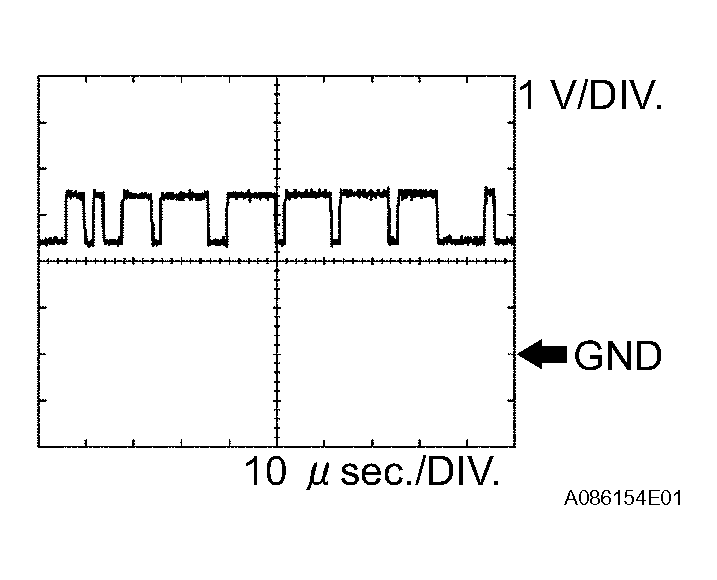

Fig 1: CAN Communication Signal Graph - Waveform 12
