Waveform 15
WARNING: This page is about a different variant/trim than selected.
Generator

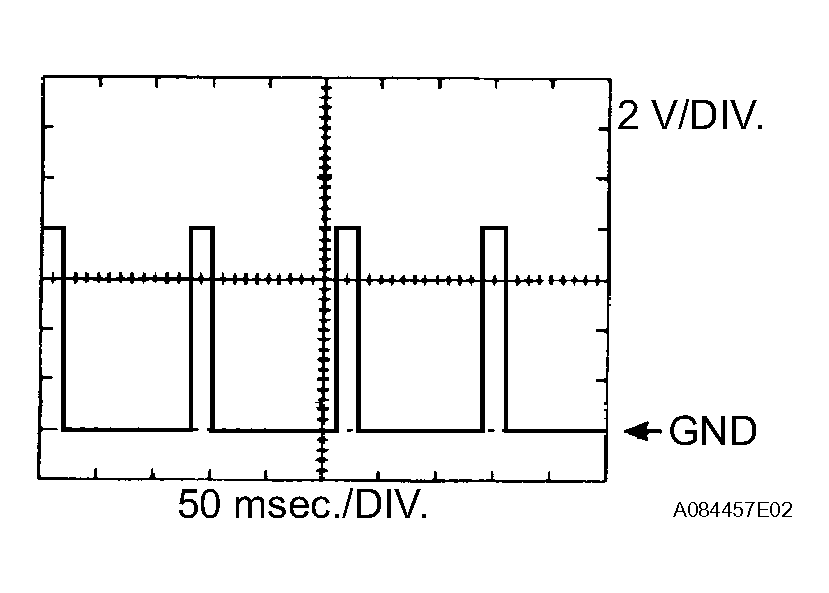

REFERENCE WAVEFORM 15
| Symbol (Terminal No.) | Between RLO and E1 |
| Tester Range | 2 V/DIV., 50 msec./DIV. |
| Condition | After engine warmed up, during charging control, vehicle accelerated |
HINT:
A constant value is not output, as the duty ratio varies depending on the electrical load and battery condition.
