Waveform 7
WARNING: This page is about a different variant/trim than selected.
Purge VSV

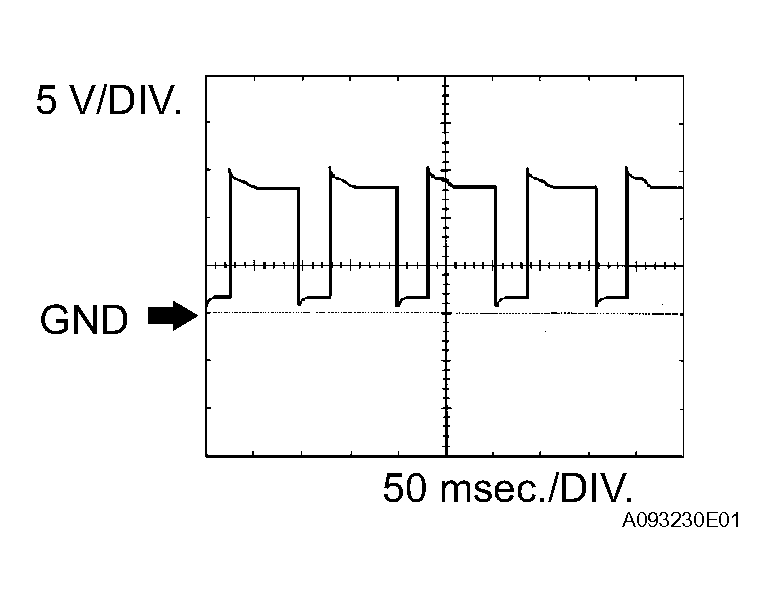

REFERENCE WAVEFORM 7
| Symbol (Terminal No.) |
Between PRG and E1 |
| Tester Range |
5 V/DIV., 50 msec./DIV. |
| Condition |
Idling |
HINT:
If the waveform is not similar to the illustration, check the waveform again after idling for 10 minutes or more.
